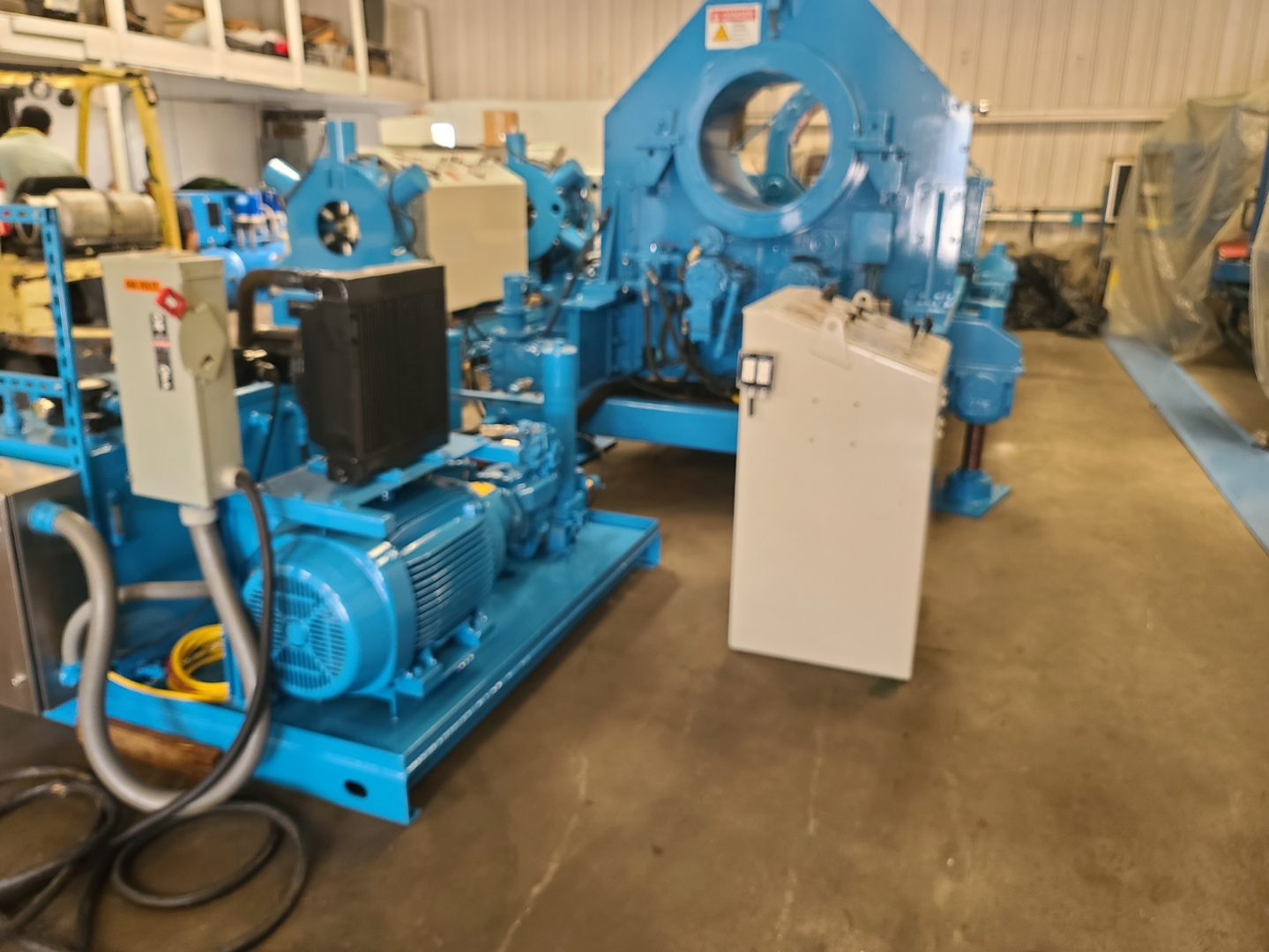

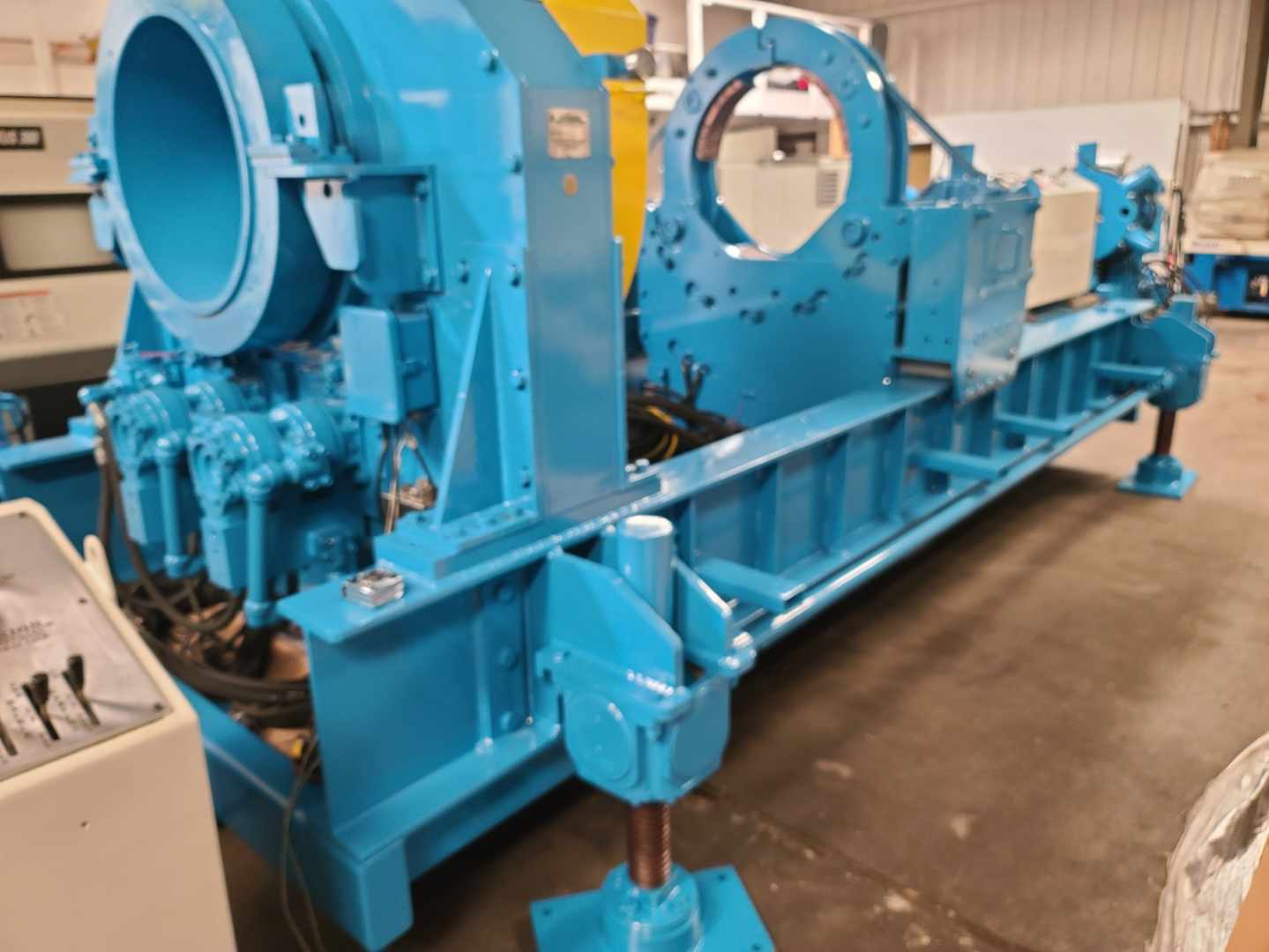

McCOY CLINCHER BUCKING UNIT GRIFFITH



Specifications:

Model                                               CLEBU 2400-30, 24” Clincher

                                                          Type III with Lockjaw backup

Backup torque gage handle             41”

Minimum tubular OD                       2 3/8”

Maximum tubular OD                      24”

Torque rating                                    100,000 psi.

Drive type                                          Hydraulic

Number of drive speeds                    Two

Max. hydraulic operating pressure  3,000 psi.

Max. clamping pressure                   4,500 psi.



Hydraulic unit:

Model                                                 PU7560

Main motor                                        75 hp.

Hydraulic operating pressure           3,000 psi. / 60 gpm



Dimensions:

  Main body                                        17 6” L x 9’ W x 9’ H

  Control console                                3’ W x 2’ L x 4’ H

  Hydraulic unit                                  7’ W x 5’ L x 5’ H

Weight                                                25,000 lbs. Appx.



Price: $ 325,000. FOB Houston, TX.  Subject to Prior Sale.



Comments:  The unit is in very good condition.  Drillco paid $ 649,000 ten years ago when they

Bought the unit new.  Three years ago Drillco shut down the Homa, Louisiana offshore repair

During the Covid craziness.  Before decommissioning the unit went thru a complete Preventative

Maintenance check.

McCOY CLINCHER BUCKING UNIT GRIFFITH
