NOV GRIFFITH MAKE UP/BREAK OUT TORQUE UNIT
Specifications:
Model 8026
Serial number 004
Torque, Make-Up
5,000 to 150,000 ft./lbs.
Max Break-Out 190,000
ft./lbs.
Chucking & Clamping Ranges
-
Headstock Capacity (Diameter): 3.5” - 18”
-
Tailstock Capacity (Diameter): 3.5”- 14”
Physical Dimensions & Weight
-
Overall Length: 150 inches (3,800 mm) with a 12-foot bed
-
Overall Width: 52 inches (1,320 mm)
-
Overall Height: 71 inches (1,805 mm)
-
Approximate Weight: 10,500 lbs. (4,772 kg) including console
Key Features
-
Fully Opening Hinged Headstock
-
Equipped with Hydraulic Spinner
-

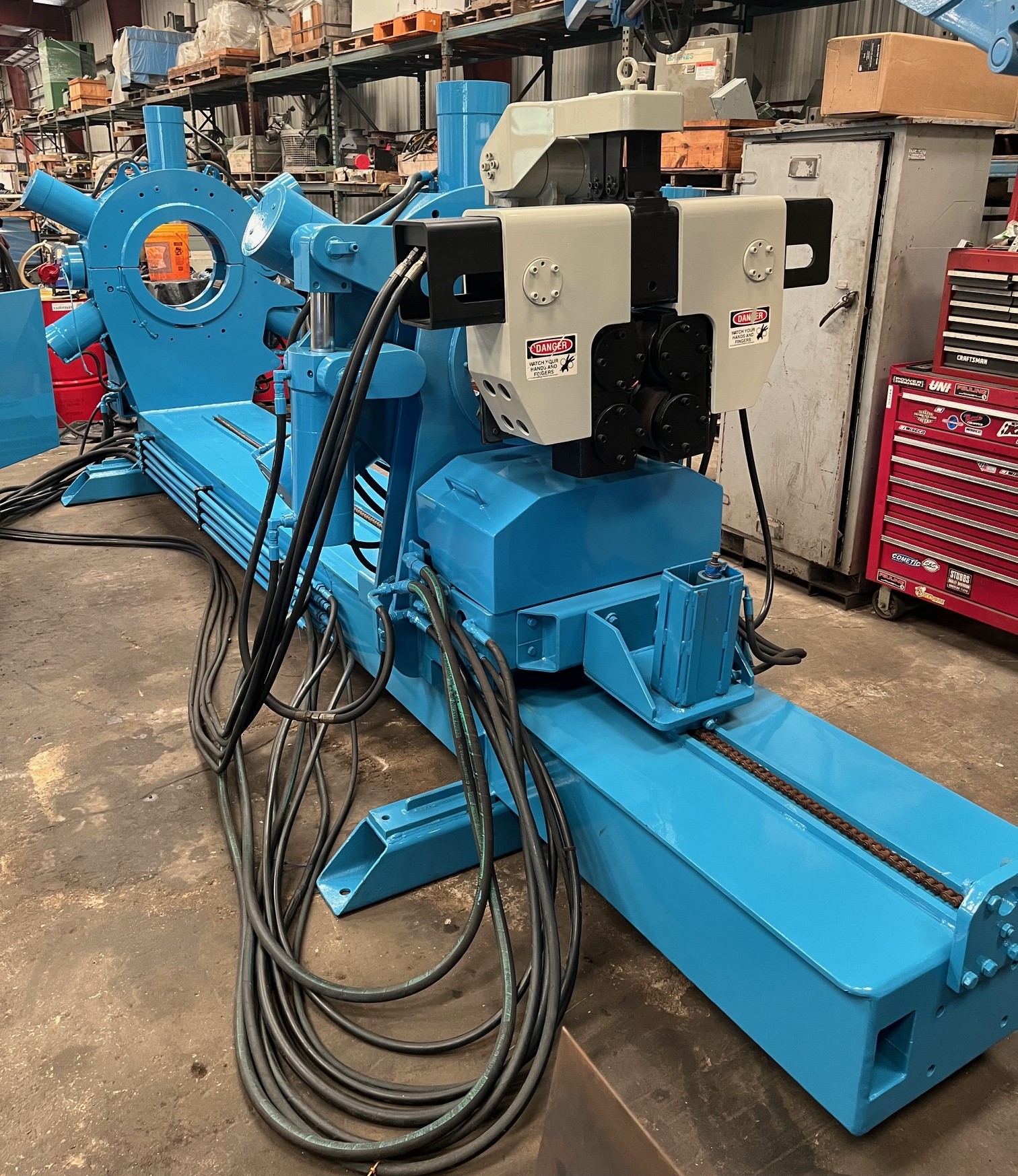

Motorized Tailstock
Price: $ 129,500. FOB Houston, TX. Subject to Prior Sale.
Comments: Unit is in good condition. Can be run under power in our Houston warehouse.
Youtube link to
demo:
https://youtube.com/shorts/qxto0vDQFac?is=55ETUNJVSPtI4xm5
