Specifications:

Model                         94-02 tong (Foster)

Size range                   2 3/8”—10 ¾””

Backup                        Rotary backup, air actuated

Torque capacity

     Low range              18,000 lbs.

     High range             300--1,500 lbs.

RPM range                 Based on 45 gpm at 2,000 psi

     Low range             14 rpm

     High range             80 rpm

Weight                        4,000 lbs. apx.

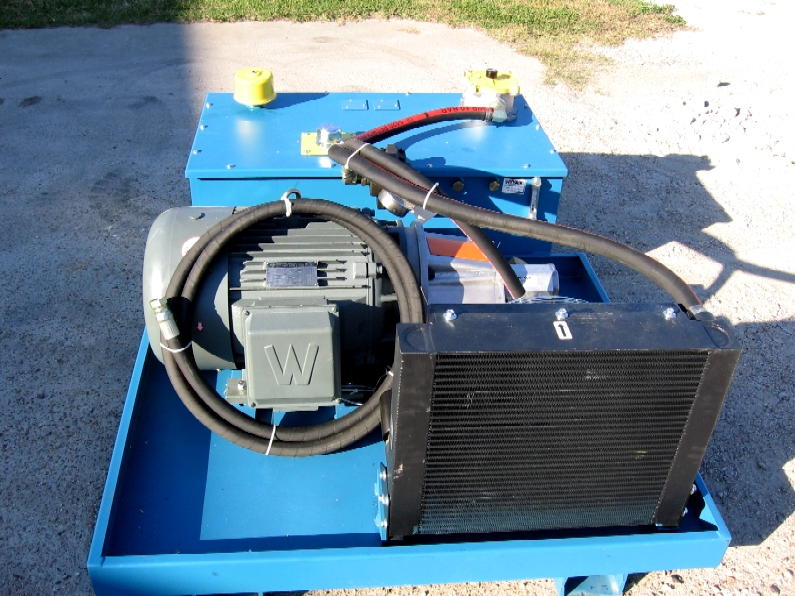

Hydraulic unit:        Skid mounted

Main motor             50 hp/3/60/220 or 440v

Pump                      45 gpm hydraulic pump

Tank capacity         70 gallons, pressure relief valve and filter

Dimensions             85” L X 74” W X37” H (boxed)

Weight                    1,500 lbs. approximate



Price:  $ 95,750 FOB Houston, Texas

Delivery:  8 weeks

Terms:  40% with the order, balance upon shipment

Jaw Tooling for 2 3/8- 10 3/4" available

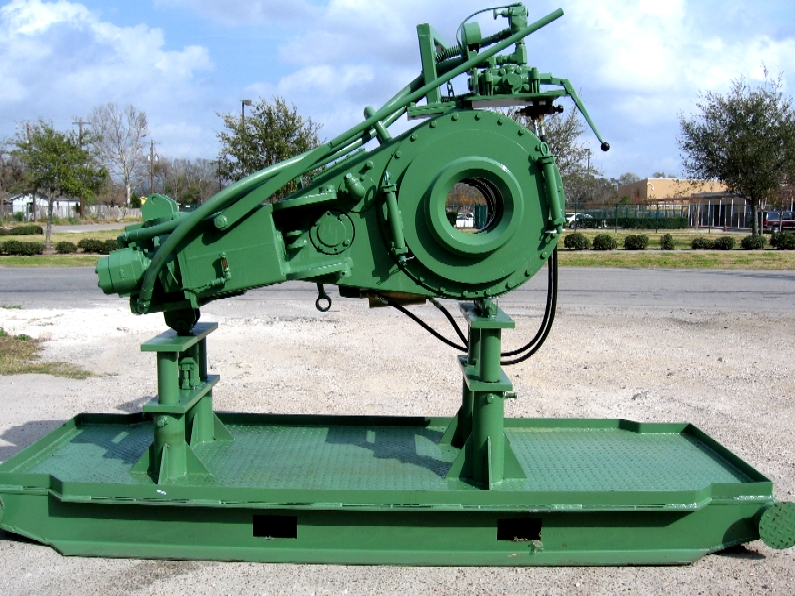

Foster Tong skid mounted bucking unit

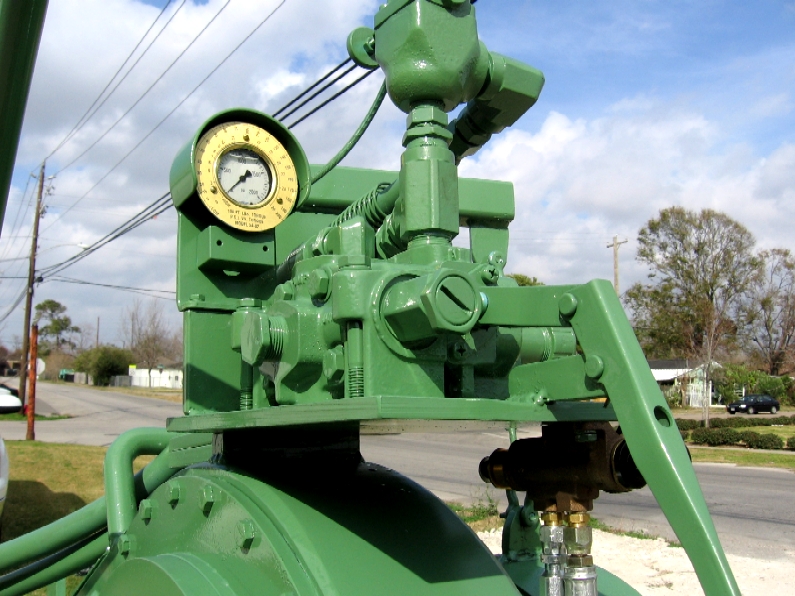

Foster Tong skid mounted bucking unit

Foster Tong skid mounted bucking unit
