HTR TP82 BUCKING UNIT

(Skid mounted electric powered)

Specifications:
Model                         (Foster Model 58-93R tong)
Size range                 2 3/8”—5 ½”
Backup                      Rotary backup with double wide jaws (same width as in the tong)
Torque capacity
Low range                 6,000 lbs.
High range                200 lbs.
RPM range (Based on 33.5 gpm at 2,000 psi)
Low range                27 rpm
High range               126 rpm
Weight                     3,000 lbs. apx.

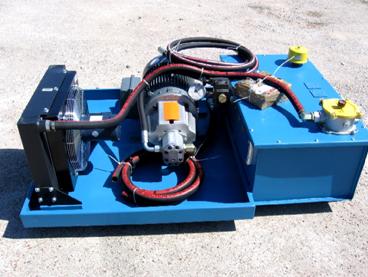

Hydraulic unit:
Main motor             40 hp/3/60/220 or 440v
Pump                      33 gpm hydraulic pump
Tank capacity        70 gallons, pressure relief valve, filter and 15’ of hose.

Price: $ 65,725.00 FOB Houston, Texas
Comments: The unit comes with 2 3/8” jaws in the backup and 2 7/8” jaws in the tong.

BUCKING UNIT

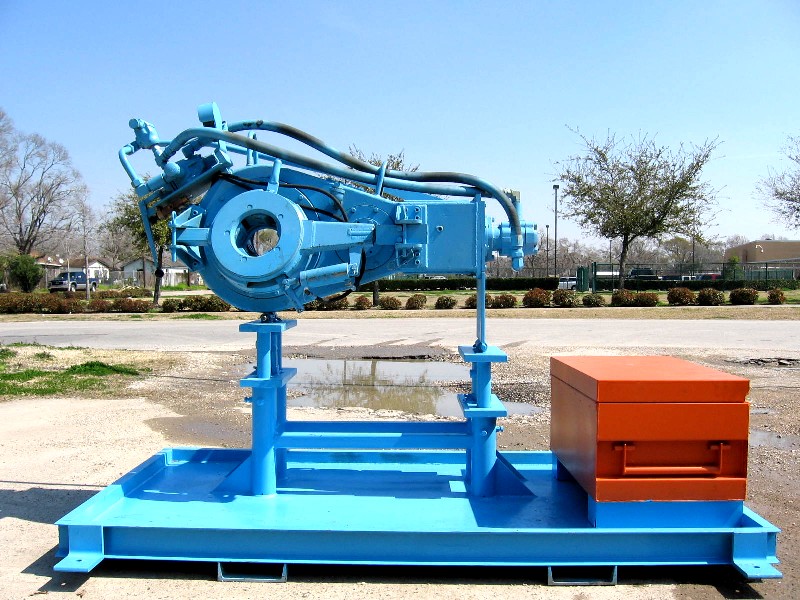

 Foster Model 58 buck on bucking unit tong  Foster Model 58 buck on bucking unit tong
