WEILER E-50 TEACH AND LEARN FLAT BED ENGINE LATHE
Specifications:
Model E-50

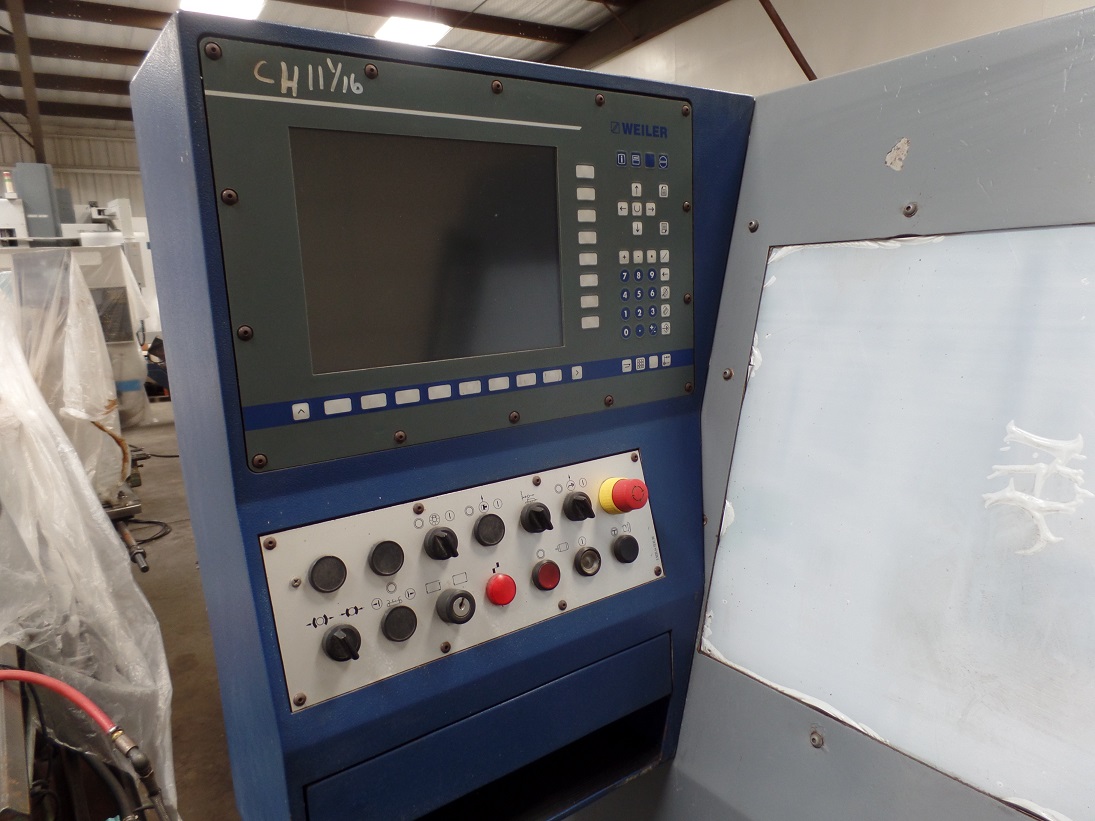

CNC control Yes, Weiler/Siemens T&L
control
Serial number/YOM 1011 / 2004
Center distance 2000mm or 80”
Height of centers 11”

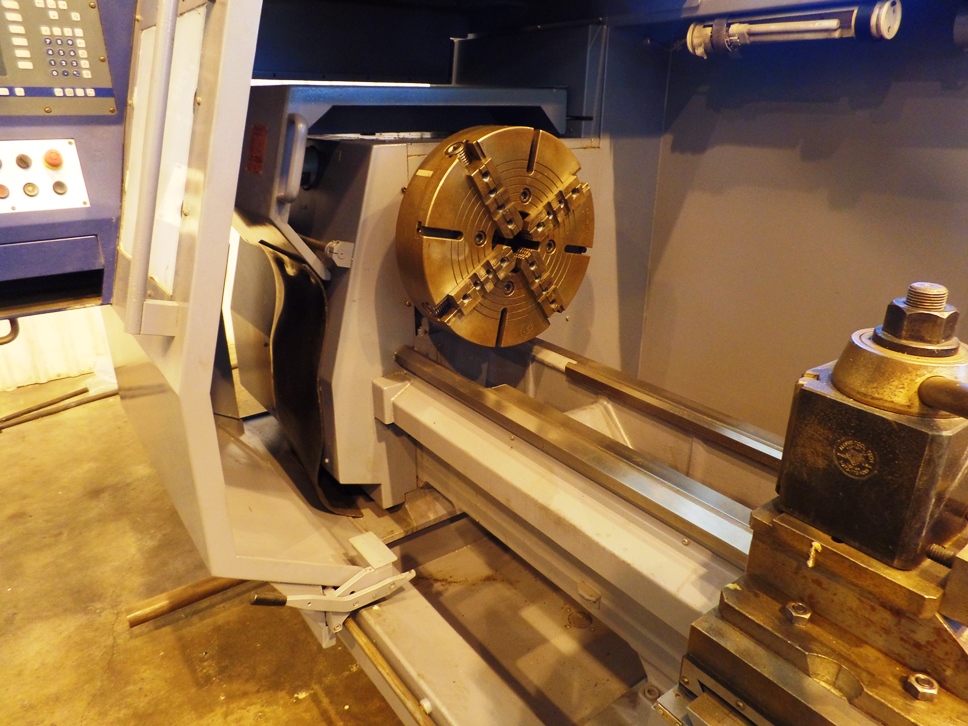

Chuck 24” 4-jaw chuck
Tool post Yes, Aloris
type
Swing over bed 22”
Swing over cross slide 13”
Width of bed 13.7”
Travel of cross slide 13.4”
Travel of top slide 5.5”
Length of cross slide 27.5”
Width of cross slide 8.6”
Spindle hole 2.6”
Main motor 13 hp. continuous/17 hp. 30
minute rating
Voltage 280/3/60 multi-tap
transformer required
Speed range 1-2500 rpm (Low 1-625, High
4-2500 rpm)

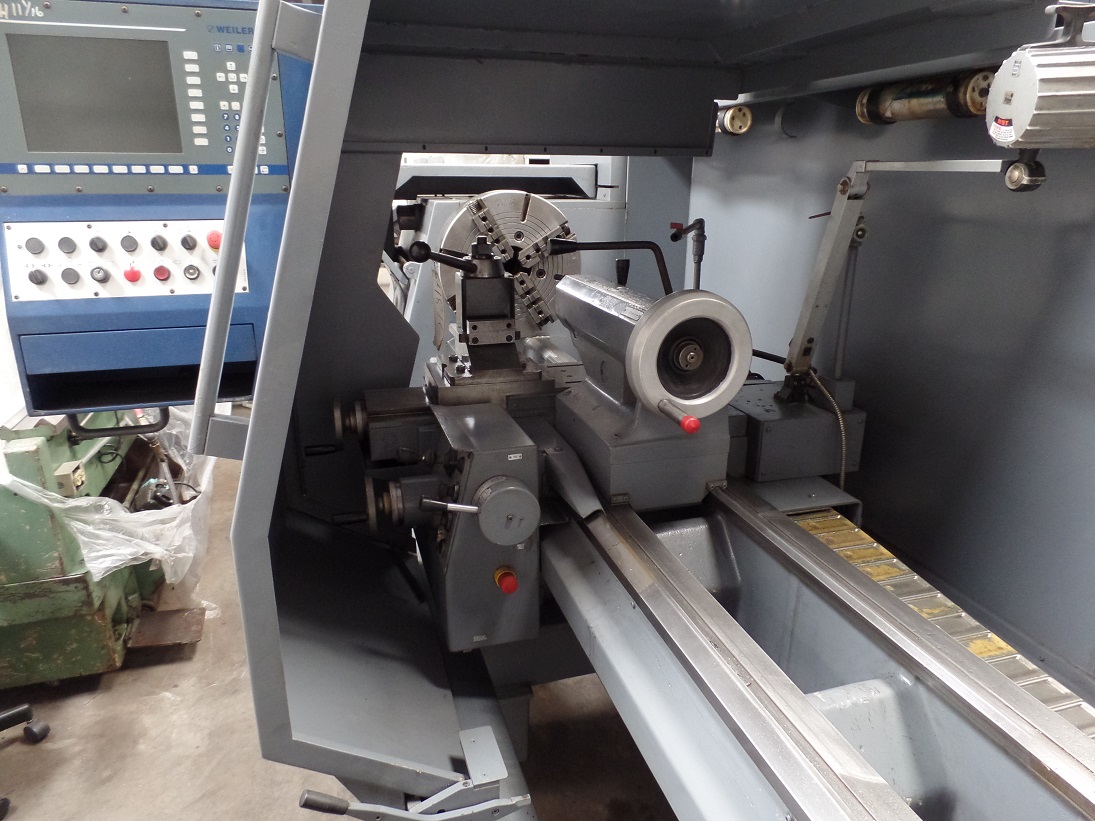

Tailstock Mk 5 (2.7” quill)
Quill stroke 6.3”
Threading Inch, Metric, Modular, DP
Steady rest Yes
Chip conveyor No, chip pan with coolant
Dimensions 147” W x 65” L x 69” H
Weight 8,470 lbs.
Price: $ 47,500. FOB Houston, TX. Subject to Prior Sale.
Comments: Specifications subject to confirmation upon inspection.
Lathe is in excellent condition.
It was rebuilt by Gates Machine in Manvel, TX in 2014 and
has been in storage ever since the rebuild.
Total cost of
rebuild and painting: $50,000.
