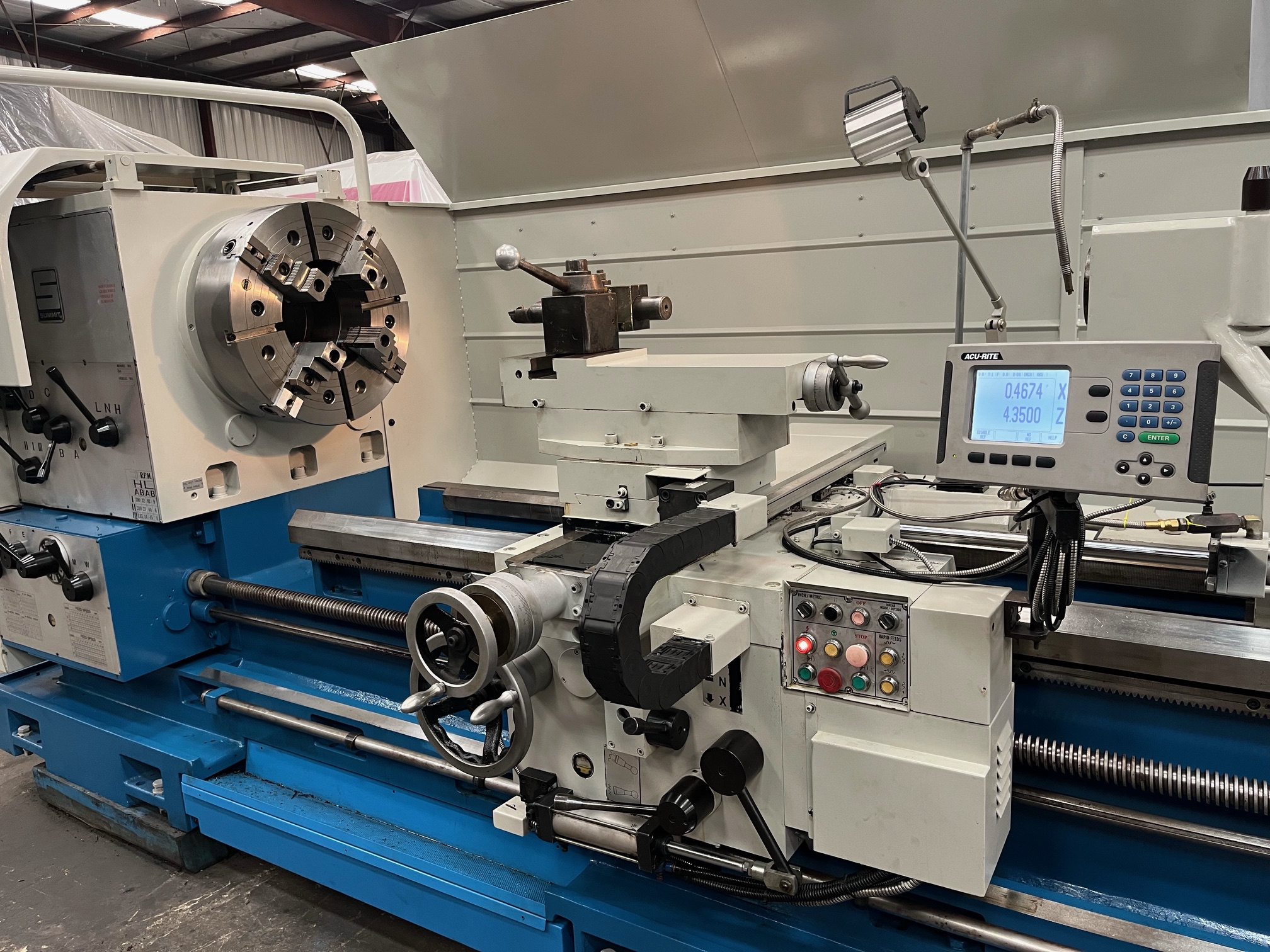

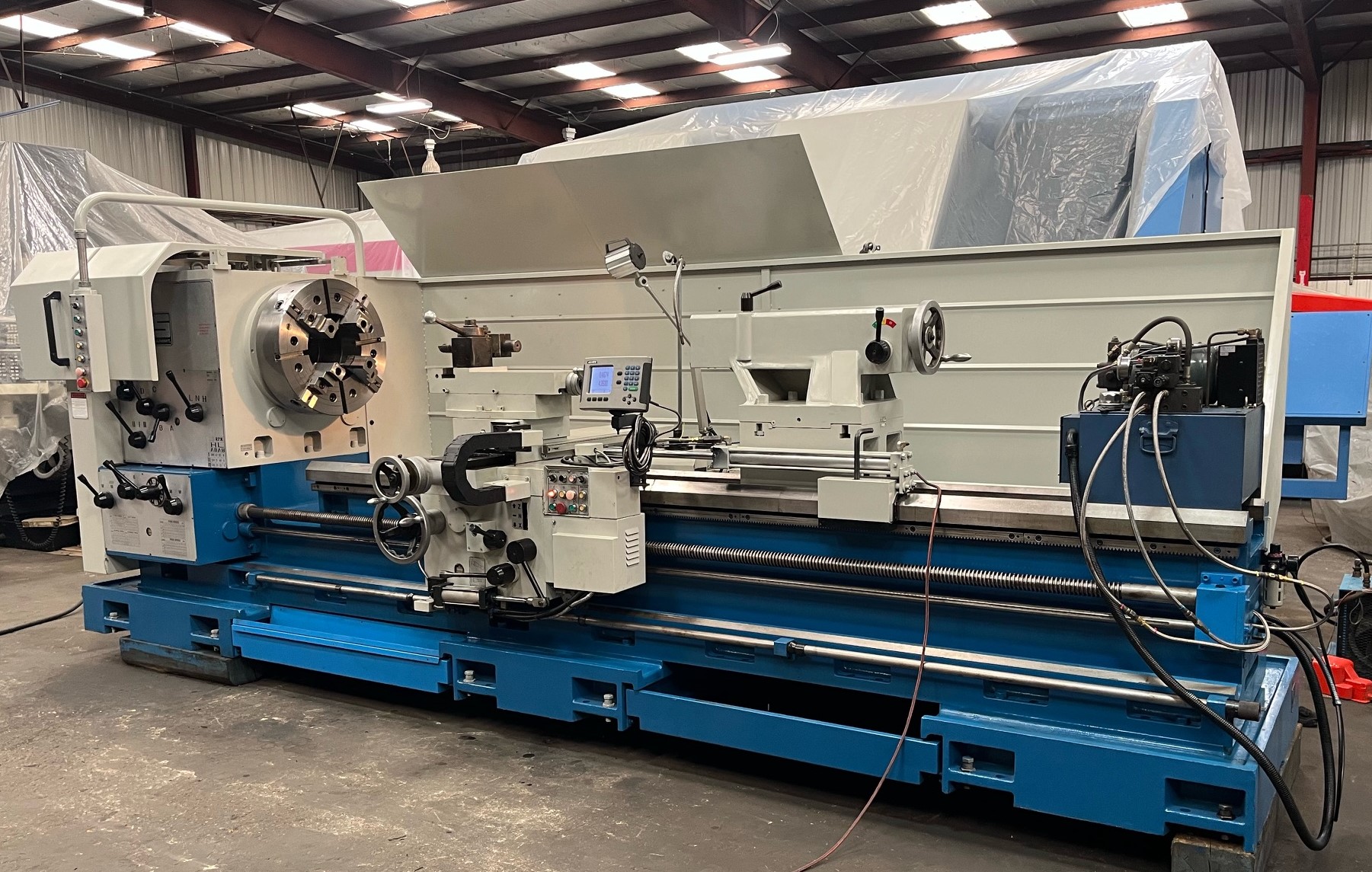

SUMMIT HOLLOW SPINDLE OIL COUNTRY ENGINE LATHE
Model
42 x 120
Year/Serial number 2010/11105
Swing over bed 42”
Swing over cross slide
29”
Swing in gap 63”
Width of gap
22”
Width of bed
22”
Spindle bore 12.2”
Chucks NEW
24” 4-jaw chucks with 12.5” bore
Spindle nose
A-2-20
Spindle speeds
4-300 rpm.
Center distance
120”
Longitudinal feeds
0.13-1.92 (48)
Lead screw diameter
2”
Metric threads
2-30 mm/pitch (48)
Inch threads
1-16 TPI (48)
Main motor
30 hp.
Rapid motor
1/2 hp.
Coolant pump motor
1/4 hp.
Taper attachment
Yes
Digitals Acu-Rite
Machine weight
21,000 lbs. plus chucks
Equipped with: Semi
Automatic Threading, Acu-Rite digital readout with full length
scales.
Thread dial, Coolant with chip
pan. Rapid traverse on the carriage.
Price: $110,000.00 FOB Houston, TX. Subject to Prior Sale.
Semi Automatic threading video:
https://youtu.be/vinGGXt6AMk?si=37Nesk6LPqR0Rpuk
