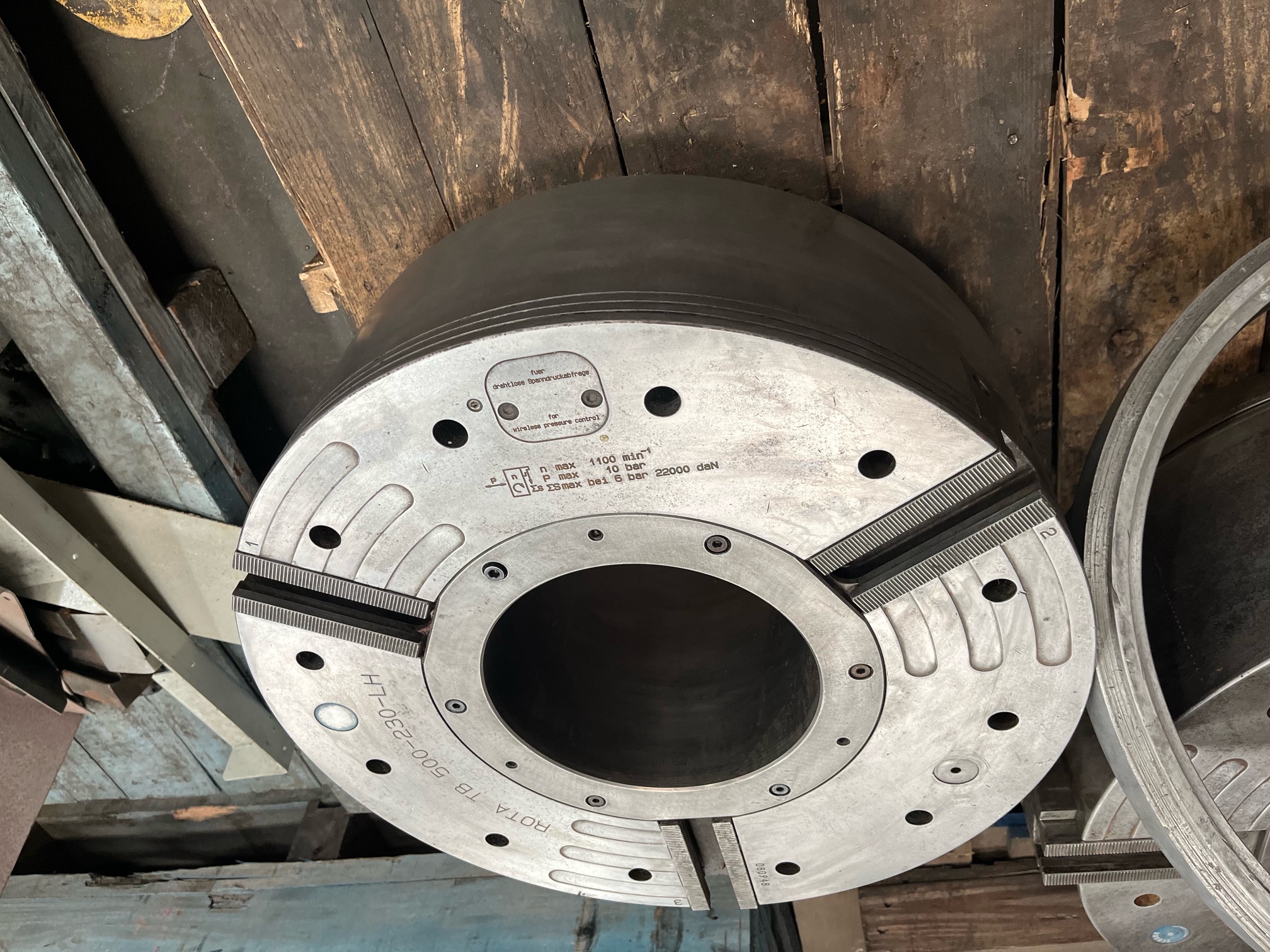

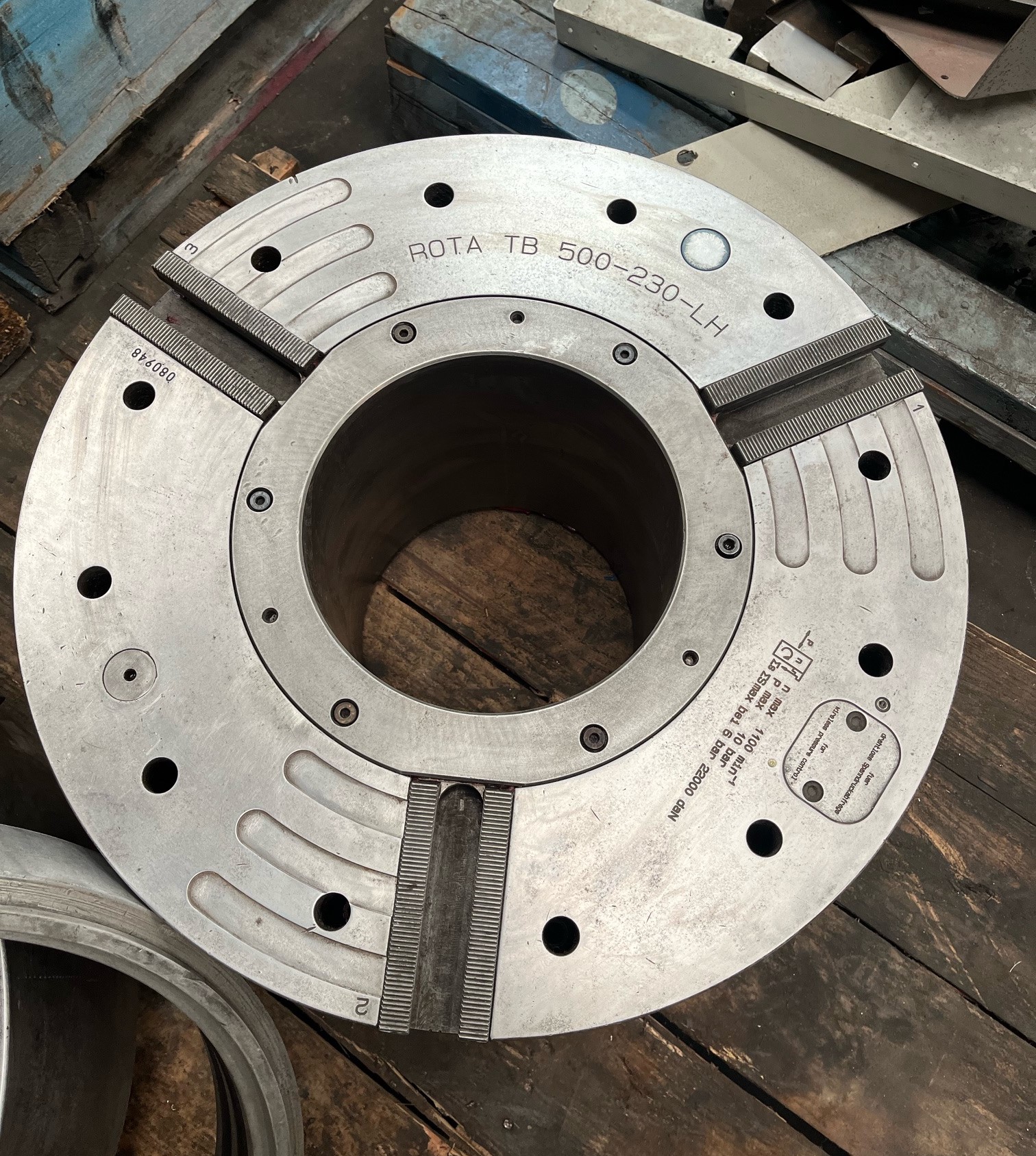

SCHUNK ROTA TB
500-230 LH EXTENDED STROKE AIR CHUCK
Specifications:
Serial number
080948
Chuck diameter
500 mm (19.68”)
Thru hole
230 mm (9.06 ”)
Spindle nose
flat back
Stroke per jaw
25.4mm. (1”)
Fast stroke per jaw
16.9mm. (2/3”)
Clamping stroke per
jaw
8.6mm. (1/3”)
Jaw serrations
3/32 x 90’
Maximum
rpm 1,300 rpm
Max gripping force at
6 bar 42,714 lbs.
Weight without top jaw
tooling 724 lbs.
Price each: $18,500.
FOB Houston, TX.

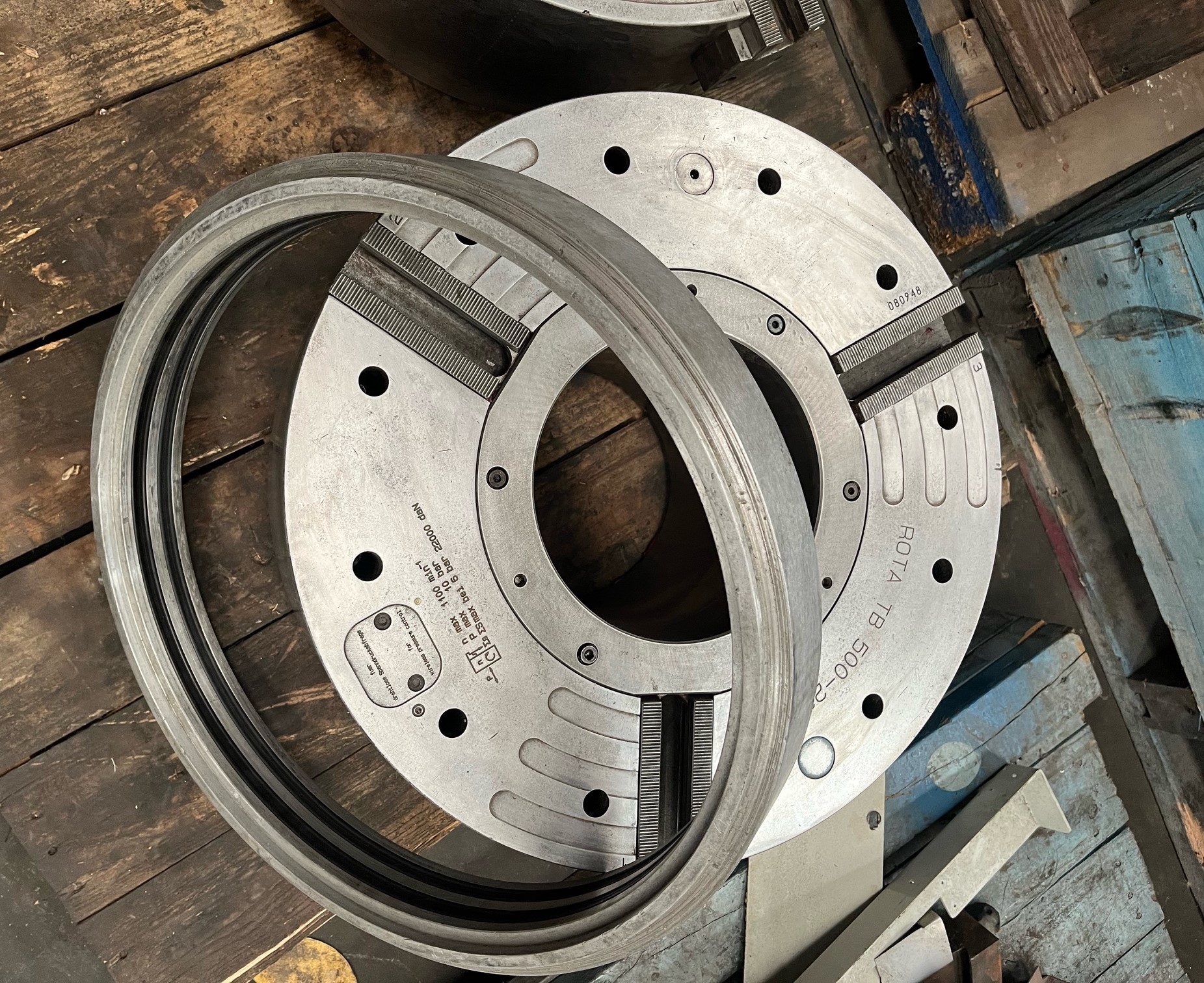

Included with the
chuck: Air distributor ring.
Condition: Good. The
chuck has been tested overnight in both the open and closed
position to assure it
holds pressure.
Delivery: Stock, our
warehouse.
Mounting package:
--We can also supply a
full wrap around distributor ring mounting bracket (DRMB)
for a front mounted
chuck or stand-off brackets for a rear mounted chuck. We also
supply adapter plates
and can do the complete installation if required.
