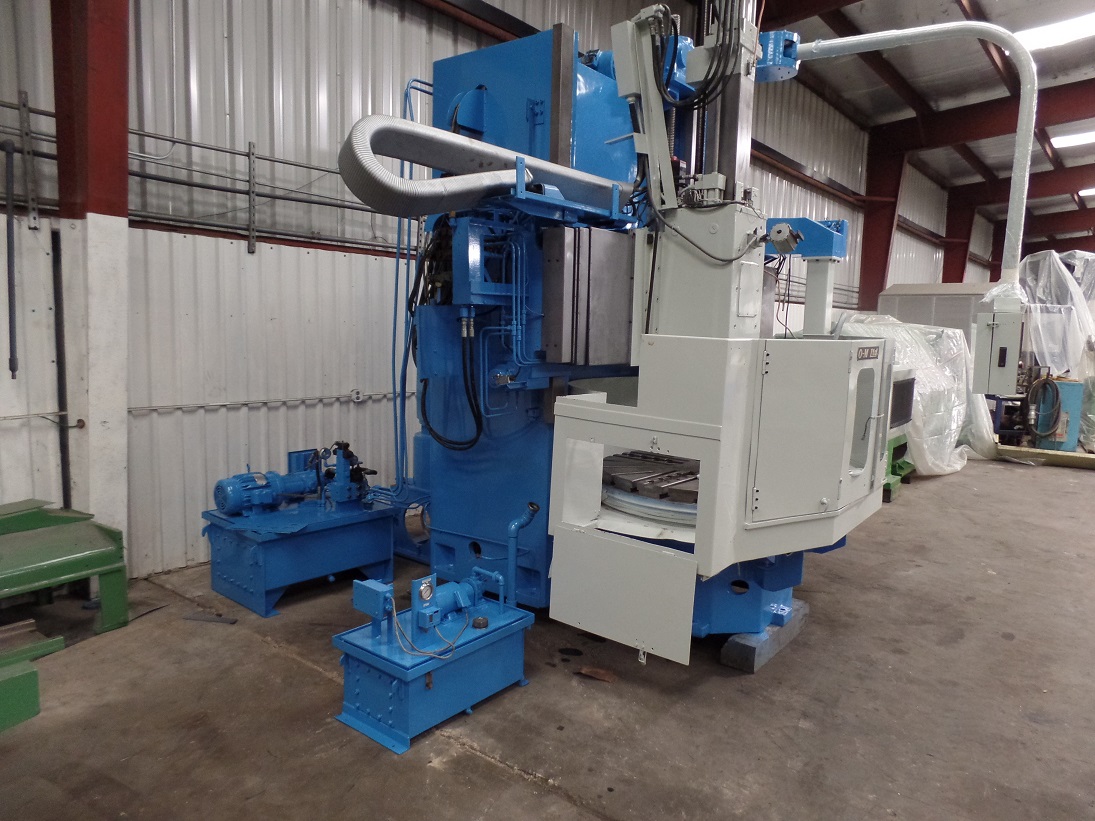

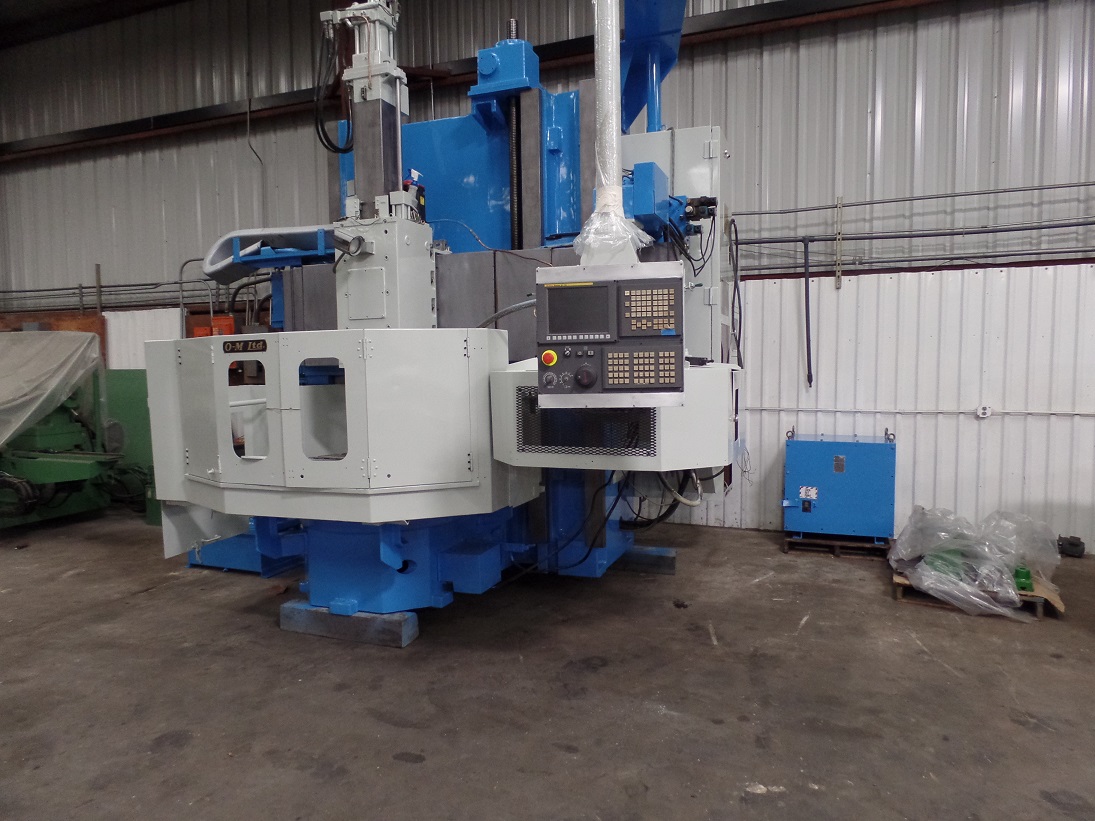

O-M CNC VERTICAL LATHE

Specifications:
Model                                                                                                 VT5-12N

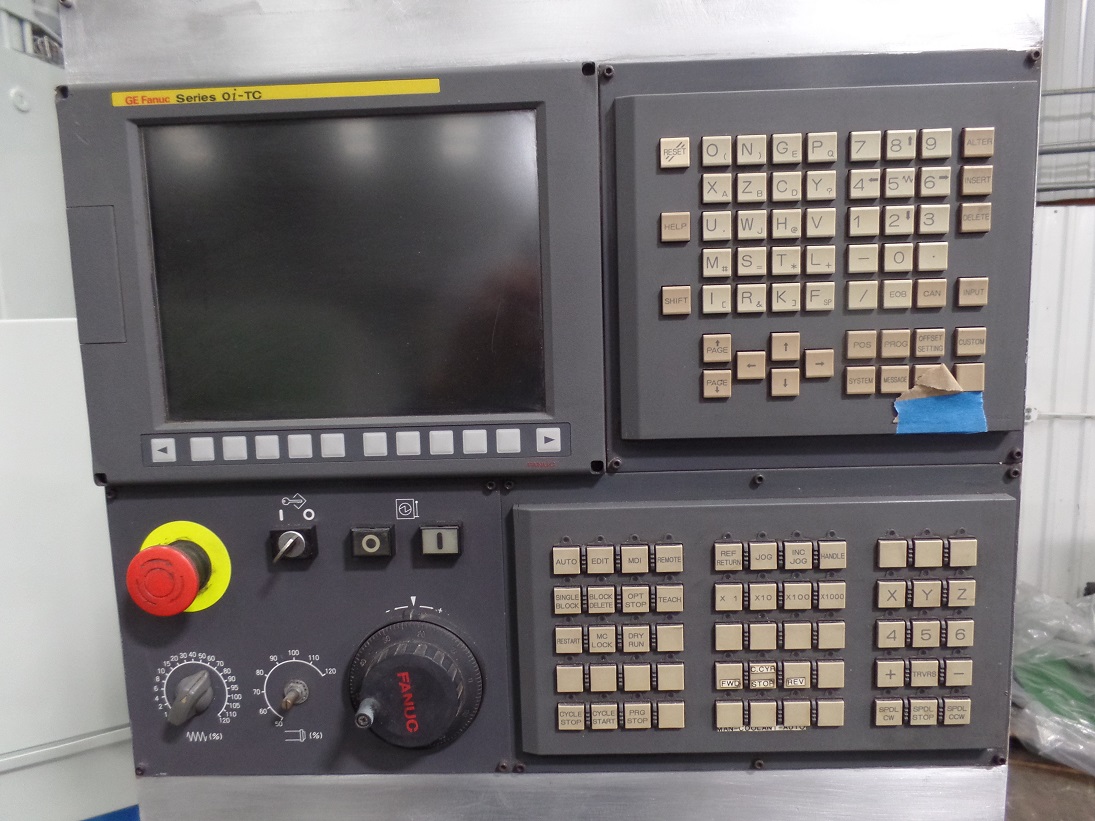

CNC control                                                                                       Fanuc Oi-TC-retrofit

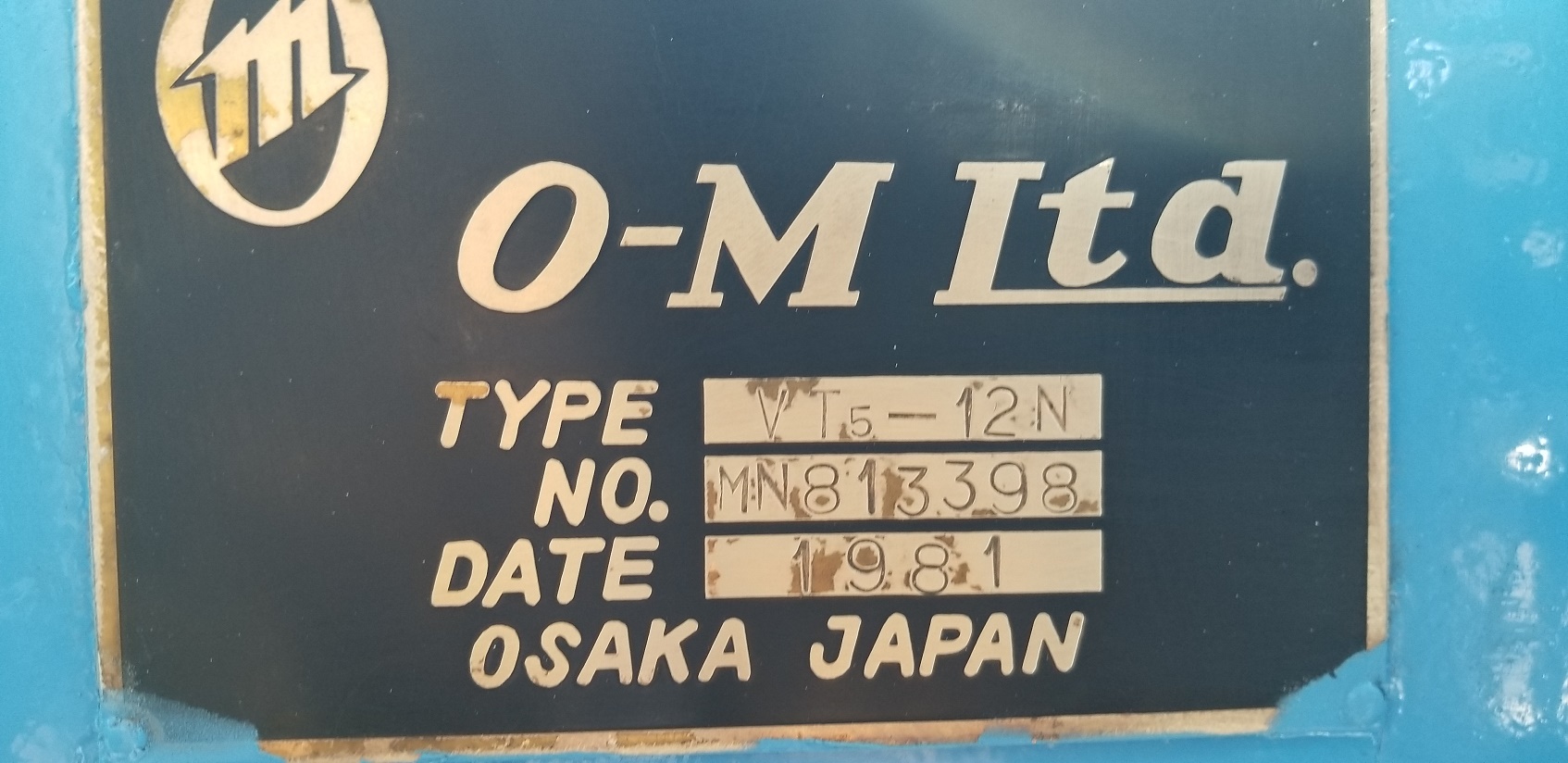

Serial number/year of manufacture                                                 MN813398
Table diameter                                                                                  49.25”
Max. turning diameter                                                                       53"
Max. swing                                                                                         63"
Max. turning height (w/standard tool holder)                                  49.25"
Max. workpiece load                                                                        17,600 lbs.
Vertical ram travel                                                                             35.5"
Ram size                                                                                            7.0" x 7.0"

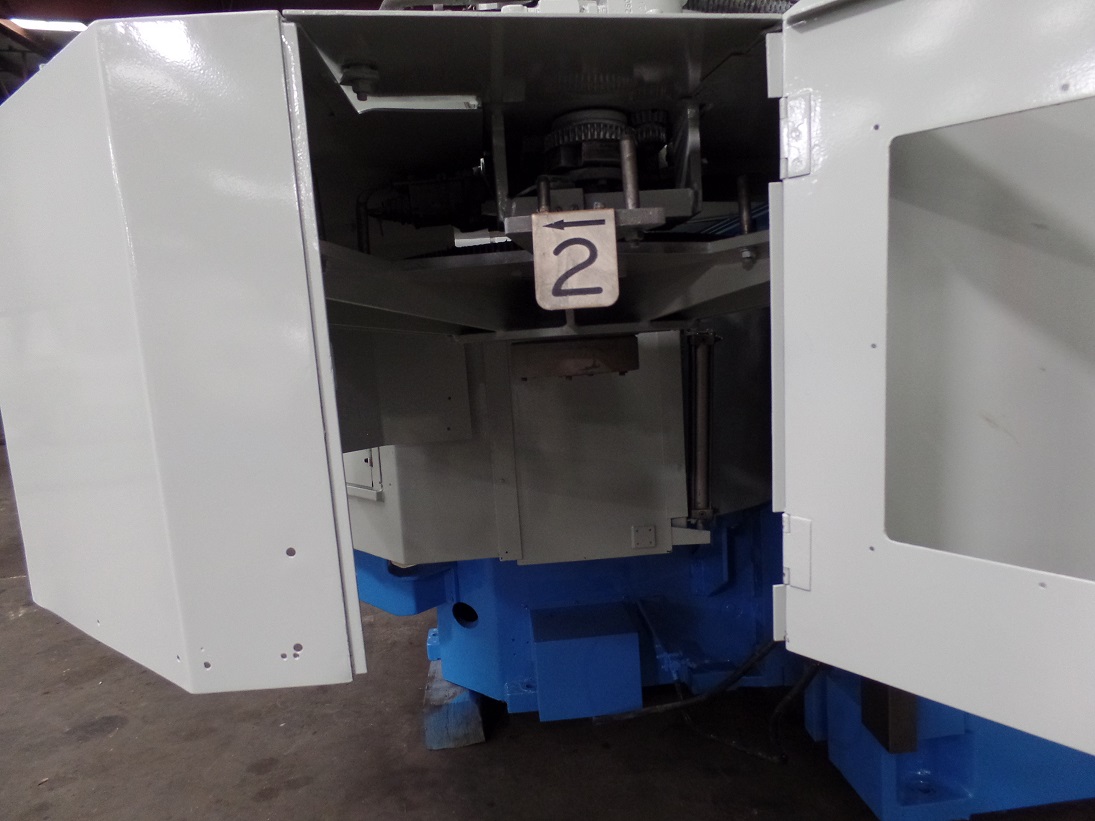

Magazine capacity                                                                           12
Rapid feed: X-axis                                                                            393"
Rapid feed: Z-axis                                                                            393"
Vertical travel of cross rail                                                               31.5"
Table speed (2 variable speed)                                                      2.0-350 rpm
Main motor                                                                                        45/40 HP
Power capacity                                                                                 60kVA
Machine weight                                                                                 43,000 lbs. apx.
Dimensions:
Main body:                                                                                        11’ H x 12’ W x 10’ L.
Transformer:                                                                                     36” H x 27” W x 24” L.

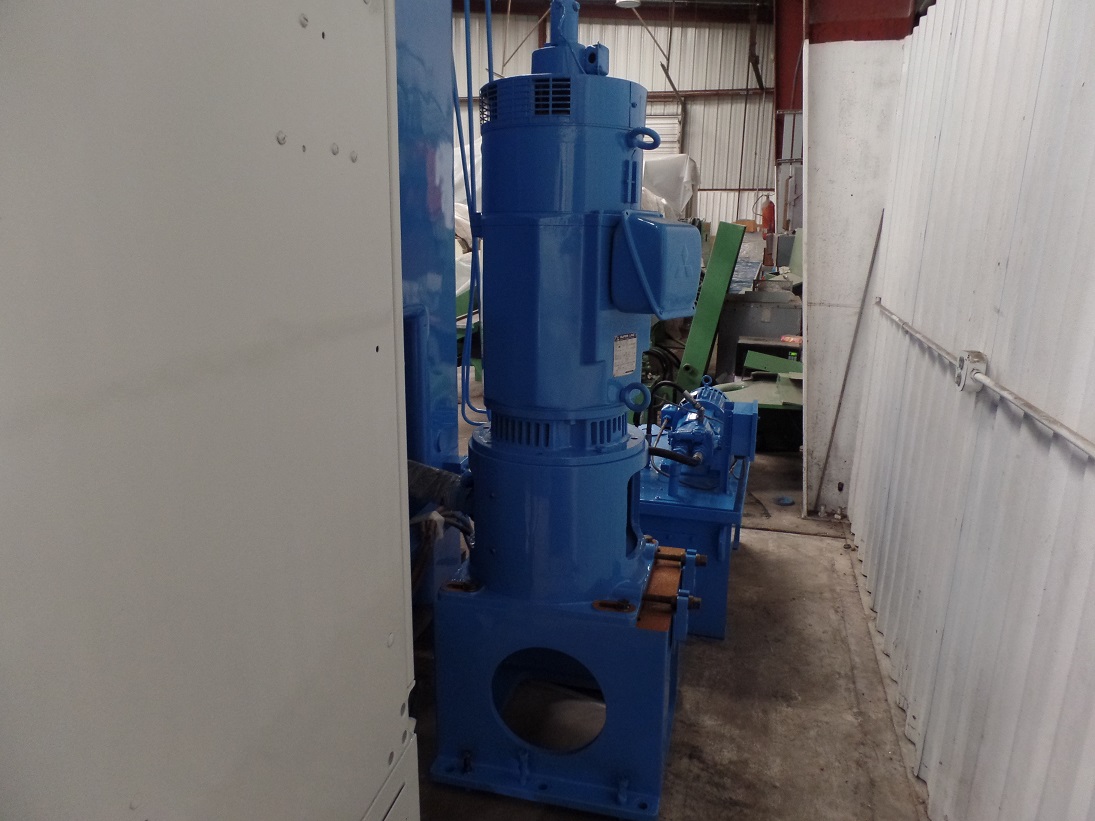

Main motor:                                                                                       77” H x 24” W x 24” L.
Hydraulic unit:                                                                                   36” H x 40” W x 30” L.
Coolant tank:                                                                                    36” H x 44” W x 18” L.

Price: $ 119,500. FOB Houston, TX.
