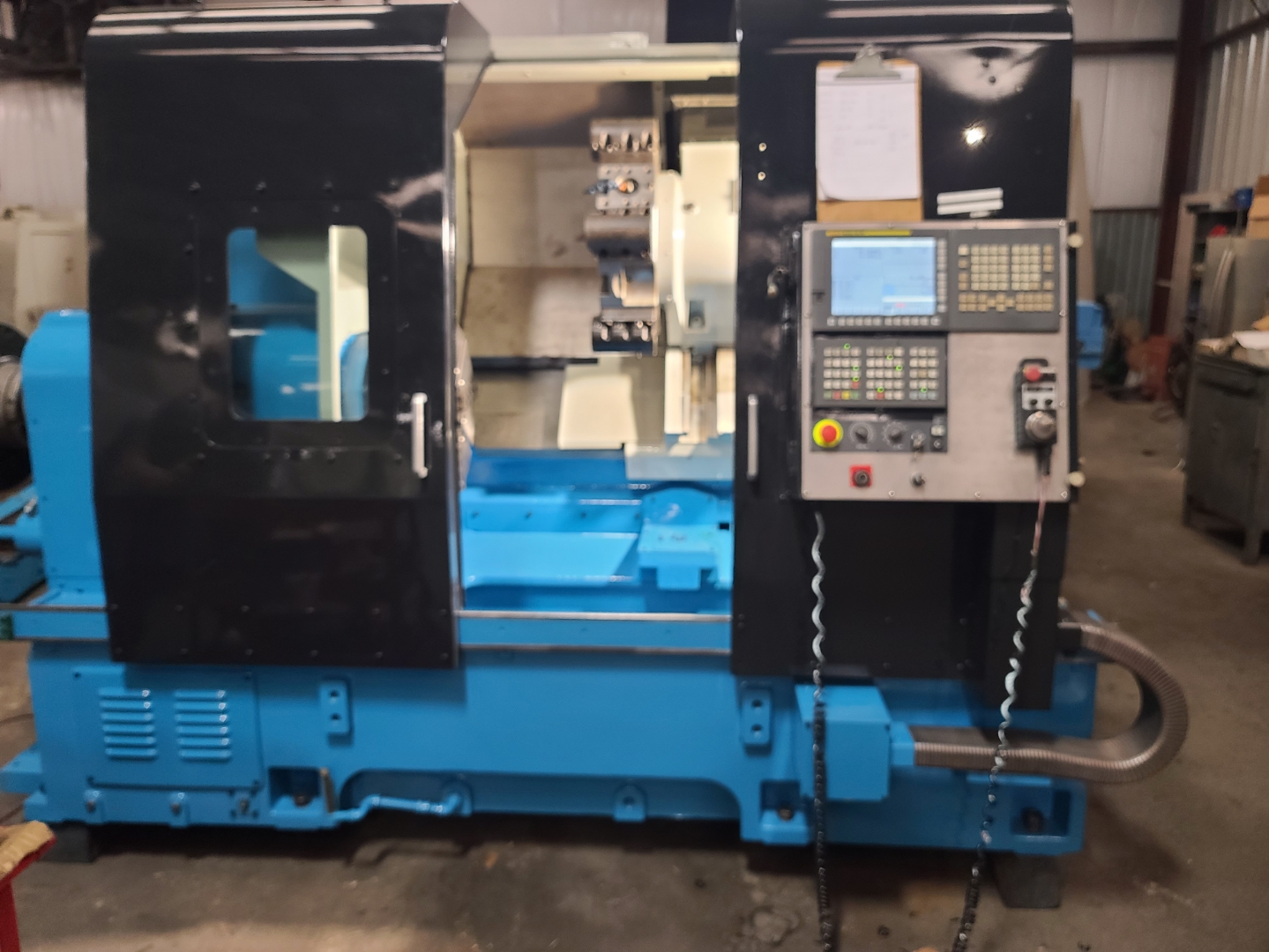

MORI SEIKI SL-6B CNC LATHE



Specifications:

Model                                         SL-6B

CNC control                              Fanuc Oi-TF (New)

Serial number                            SN: 745

Swing over bed                          27”

Swing over carriage                  22”

Center distance                         35”

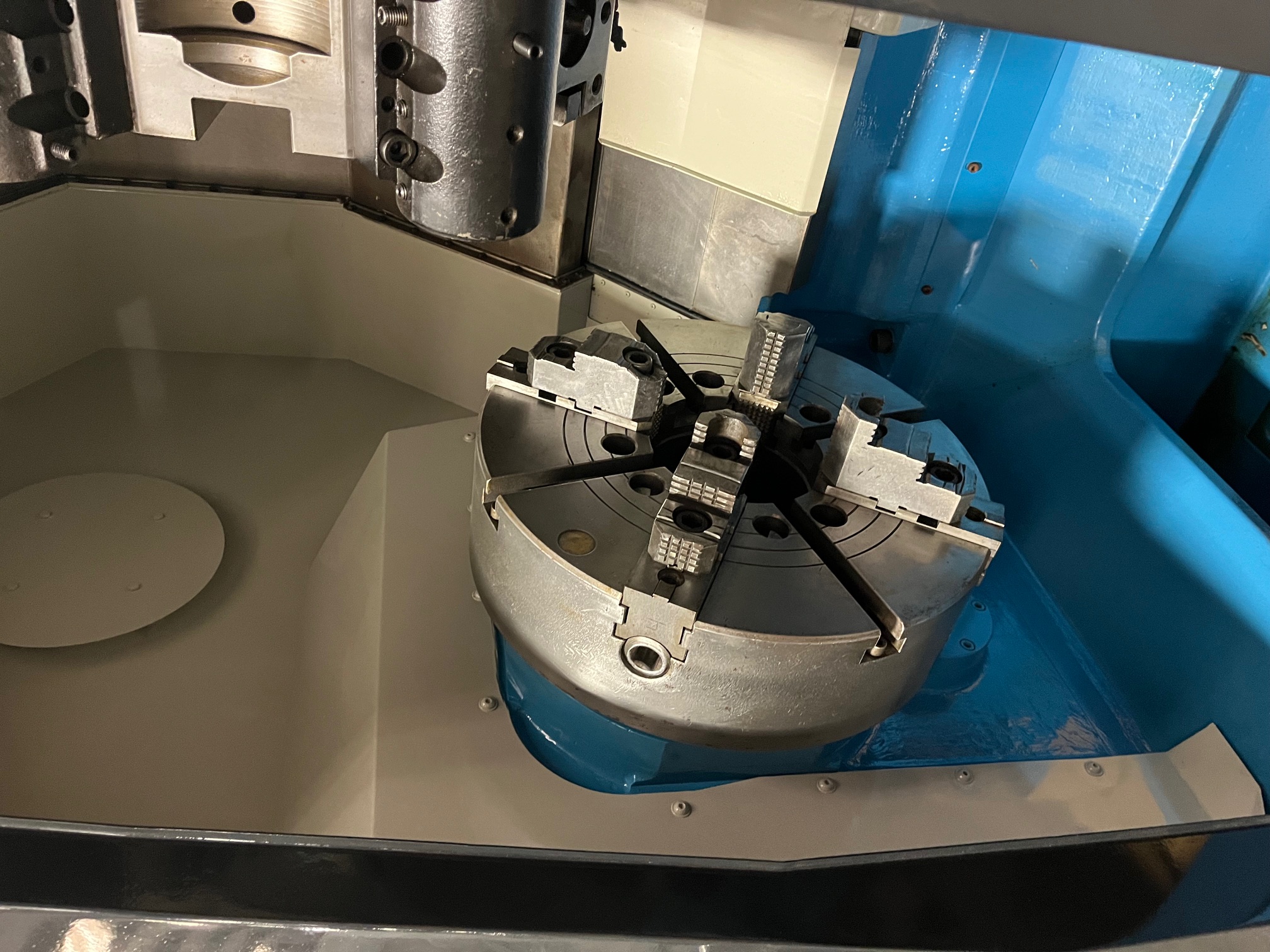

Chucks:

  Front                                        Polamco 20” 4-jaw manual with 6.5” bore

  Rear                                          Polamco 20” 3-jaw manual with 7.0” bore

Max longitudinal travel            34”

Max cross travel                        13”

Spindle center height                43”

Spindle nose                               A-2-15

Spindle speed                             0-1010 rpm

Hole thru spindle                       6.2”

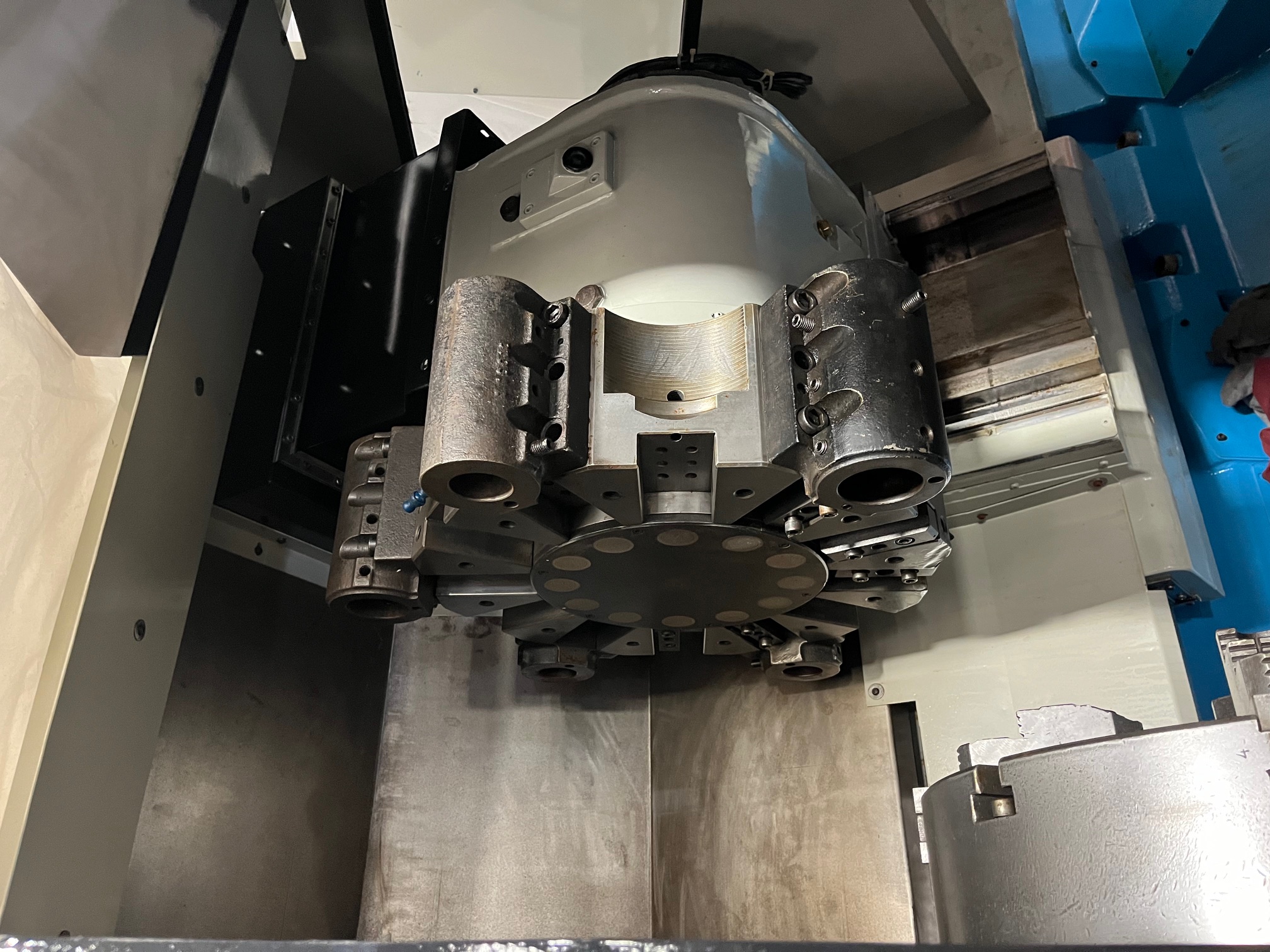

Turret stations                           12 stations

Main motor                                30Kw AC motor (New)

Tailstock                                    No

Chip conveyor                           Yes

Weight                                        20,000 lbs.,

Dimensions, lathe                      14’ W x 8’ 4” H x 7’ 6” L

Dimensions, chip conveyor      10’ 5” W x 5’ 4” H x 3’ L



Price:  $ 54,500.  FOB Houston, TX.  Subject to Prior Sale.



Comments:  The lathe was purchased for a division of VAM USA when a division was closed

and consolidated into the main Houston facility on Hardy Road.  The lathe had previously been

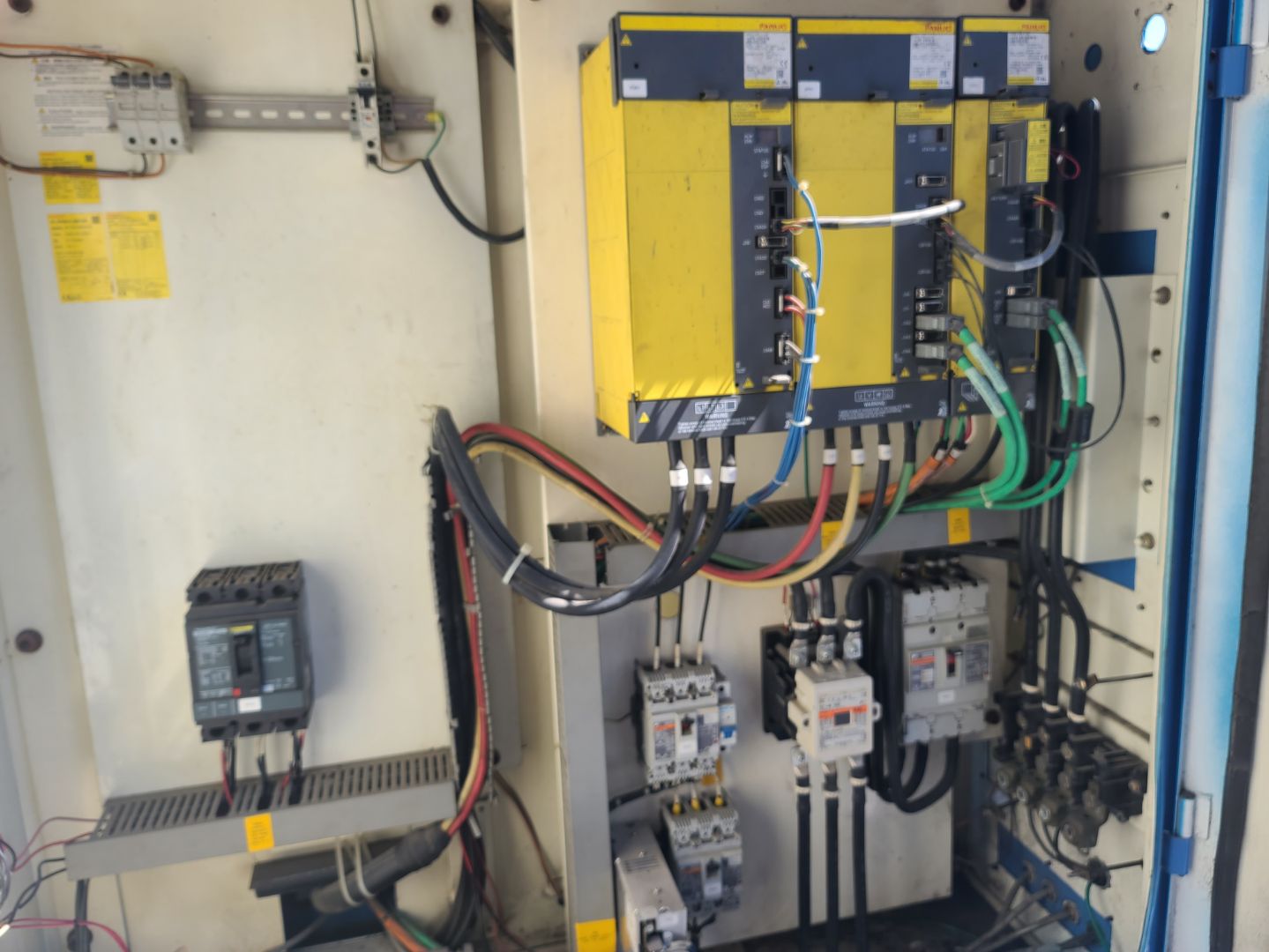

reconditioned and retrofitted with a NEW Fanuc OiTF CNC control.  It was being used to

manufacture special order Premium thread subs and cross overs. The lathe is in very good

condition with a new control.
