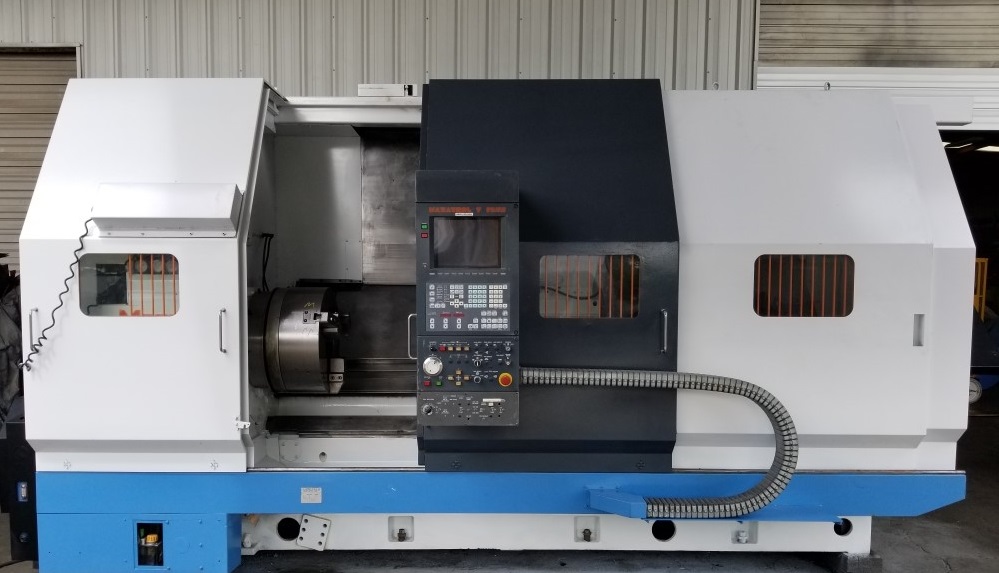

MAZAK ST-50 CNC TURNING CENTER
SPECIFICATIONS:
Model
Mazak Slant Turn 50N
CNC

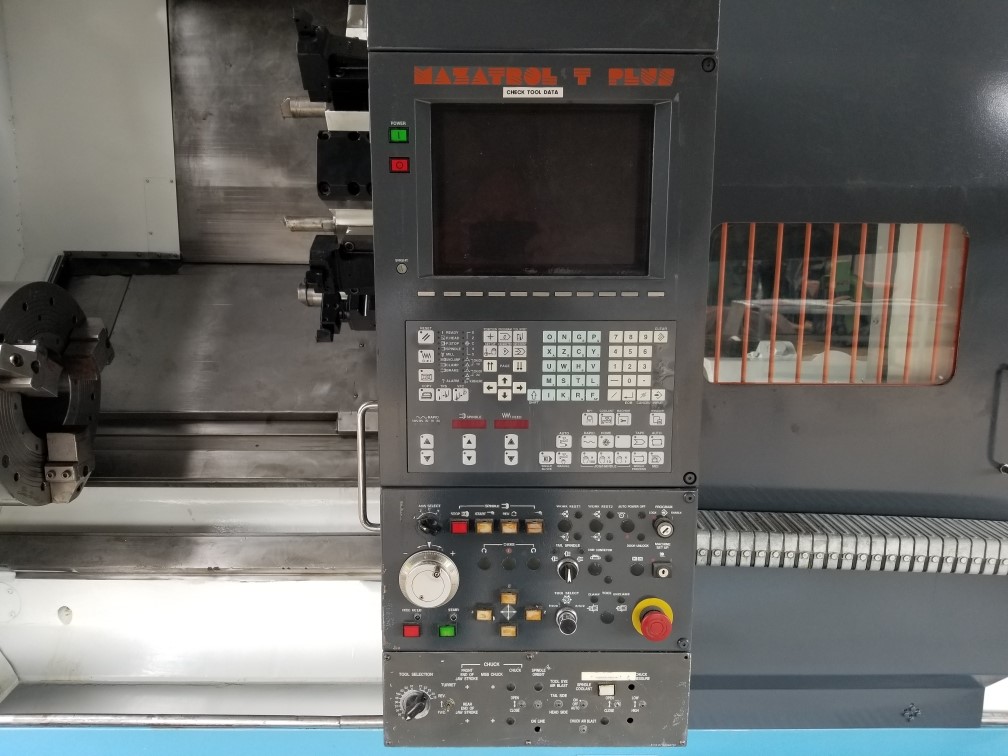

Control Mazatrol T-Plus
Year of
manufacture
1998
Max.
Swing Over Bed
31.69"
Max.
Swing Over Carriage
22.05"
Chuck SMW
BB-N-500-205-3 extended stroke air
chuck
(20” O.D x 8” I.D.)
Max.
Cutting Diameter
25.98"
Distance Between Centers
80”
Tailstock Diameter Taper
5.9"
Max.
Cutting Load
1763.68 lbs.
Spindle
Speeds, 3 Ranges
2-750 rpm
Spindle
Bore
7.1"
Spindle
Drive Motor
50 hp.
Travel
X-Axis
22.64"
Travel
Z-Axis
80"
Rapid
Traverse X-Axis
472.4 IPM
Rapid
Traverse Z-Axis
551.18 IPM
Coolant
Yes
Chip
conveyor
Yes
Approx.
Weight
29,260 lbs. plus chuck
Dimensions:
Main body:
8’ 4” W x 19’ L x 9’ H.
Chip
conveyor:
22/42” W x 16’ L x 6’ H
Equipped with: Tailstock, Chip Conveyor. Coolant, Way Lube,
Hydraulic System.
Price:
$ 89,500. FOB
Houston, TX. Subject to prior sale.
Comments: Lathe is in good condition. It has been
cleaned and painted. The air chuck has been removed,
disassembled, cleaned, reassembled and tested in both the open and
closed position. It is
in very good condition, estimated 85% of new.
