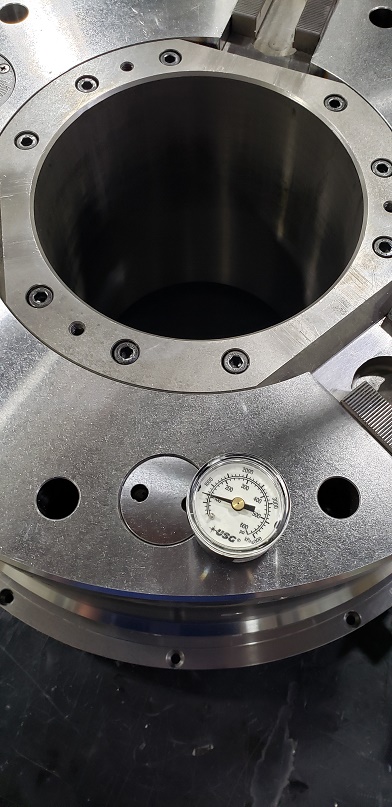

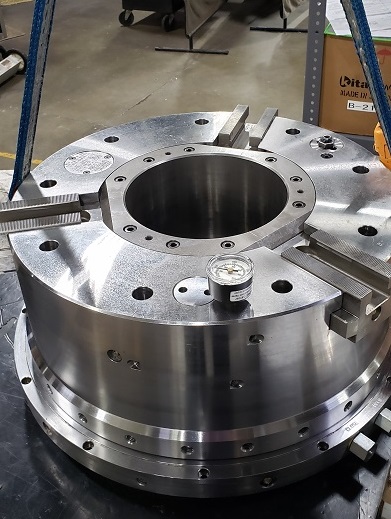

KITAGAWA UPR450U EXTENDED STROKE AIR CHUCK
Model
UPR-450U
Chuck Diameter
17.9”, 455mm
Thru hole
7.2”, 185mm
Spindle nose
flat back
Stroke per jaw
1”, 26mm
Clamping stroke per jaw
0.55”, 14mm
Jaw serrations
3/32 x 90’
Maximum rpm
1,300 rpm
Maximum clamping force
100 kN, (22,400 lbs.)
Weight without top jaw tooling
429 lbs.
Included with the chuck: Air
distributor ring.
Price each: $25,500. FOB
Houston, TX.
Condition: Like NEW.
Comments: This chuck was on
short term loan until a special-order chuck arrived.
