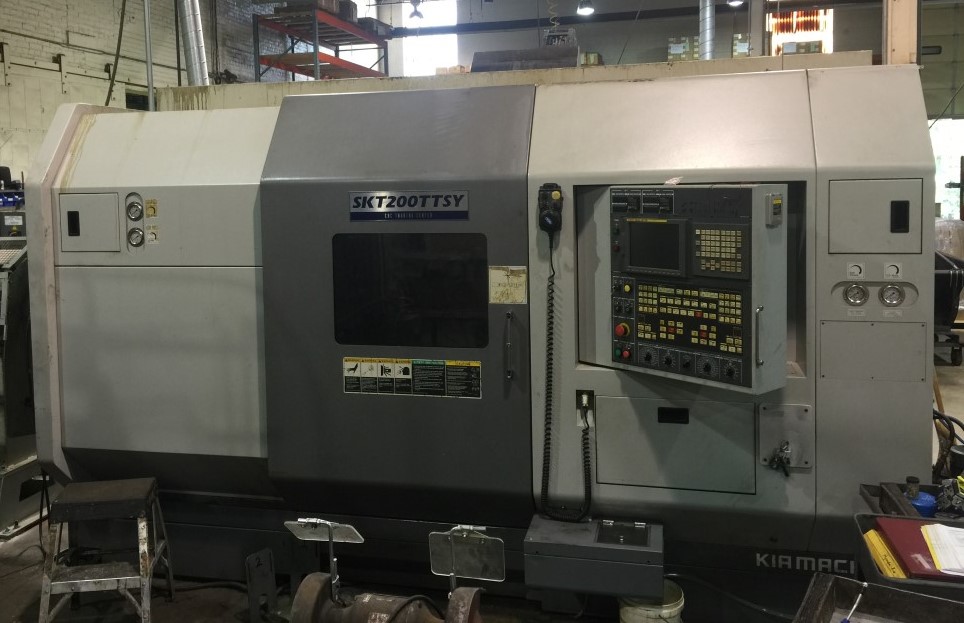

2009 Hyundai Kia SKT 200 TTSY, Box Way CNC
Lathe
Specifications:
Control
FANUC 18i-TB
Model
SKT 200 TTSY
Serial
Number
SKT200TTSY0010
Swing
Over Bed 30.7"
Maximum
Swing Over Carriage
27.5"
Maximum
Machining Length
35.4"
Turning
Diameter 15.4"
Turning
Diameter Lower Turret
11.8"
Center
Distance
48.42"
Chuck
Size
8"
Bar
Capacity
2.6"
X-Axis
Travel (Upper / Lower)
10.6" / 36.2"
Z-Axis
Travel (Upper / Lower)
7.5" / 36.2"
Y-Axis
Travel
+/- 2.4"
B-Axis
Travel (Sub-Spindle)
36.2"
C-Axis
Index
0.001 Degrees
Speeds:
Rapid
Traverse Rate (X & Z / Y): 945 / 472 IPM
Main
Spindle Nose 8” chuck,A2-6
Speed
5,000 RPM
Motor
30 HP
Bore
3.1"
Sub-Spindle
8" chuck, A2-6
Bar
Capacity
2.56"
Bore
3.1"
Speed
5,000 RPM
Motor
33.5 HP
C-Axis
0.001 Degree
Travel
36.2"
Live
Tools:
Speed
4,000 RPM
Motor
7.5 HP
Turrets
(Upper / Lower): 12 / 12
General:
Dimensions: 172" x 86" x 101"
Weight:
24.500 Pounds
Equipped With:
Live
Tooling & (Y-Axis on Upper Turret Only)
Twin
Spindle / Twin Turret
Automatic Tool Pre-Setter for Upper & Lower Turrets

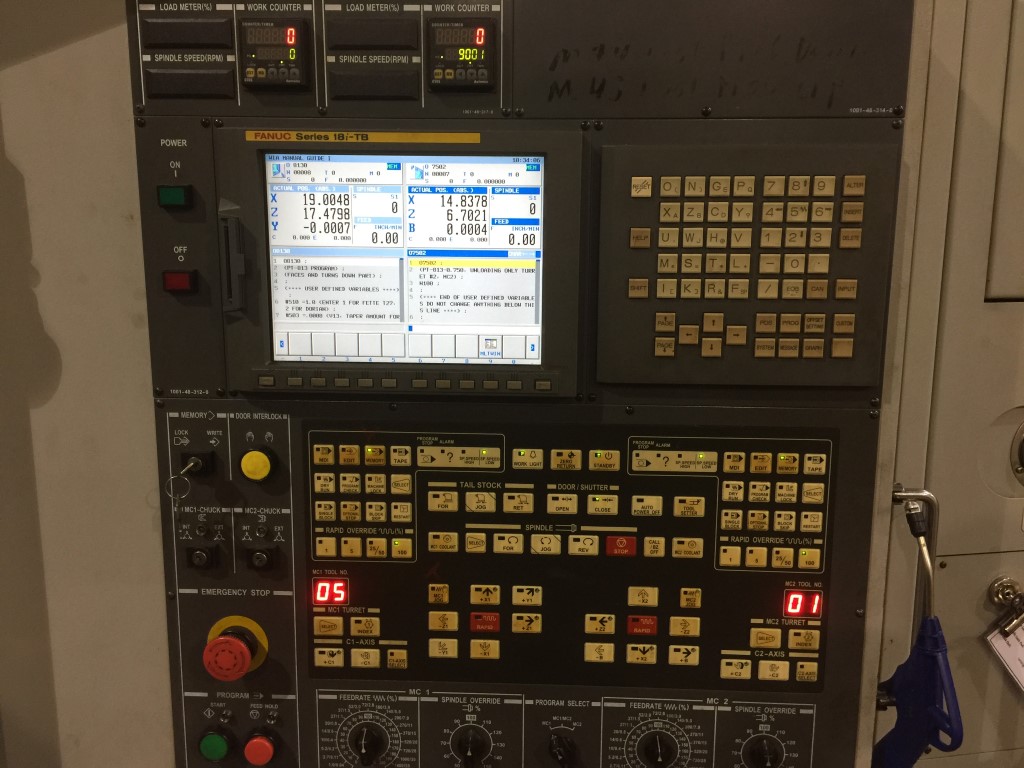

Fanuc
18iTB CNC with 10.4" Color LCD - USB Port
Chip
Conveyor (Side Exit Hinge Type)
Assorted Longitudinbal and Axial Live Tool Holders
Two (2)
Hydraulic Chucks 8" Chucks
(2)
Royal Quick Grip Collet Chucks for Main & Sub Spindle
Auto
Parts Catcher for Sub Spindle
Servo
Driven Turrets
Bar-Feed Interface
Rigid
Tapping
Remote
Manual Pulse Generator
(3) OD
Live Holders (Eppinger)
(3)
Face Live Holders (Eppinger)
(9)
Boring Bar Holders
(11)
Turning Holders
Misc
Spindle Liners
Approx.(20) Royal Quick Grip 65 Collets
Slant
Bed Box Way Construction
40,972
Power On Time
12,384
Operating Time
5756
Cutting Time
Price:
