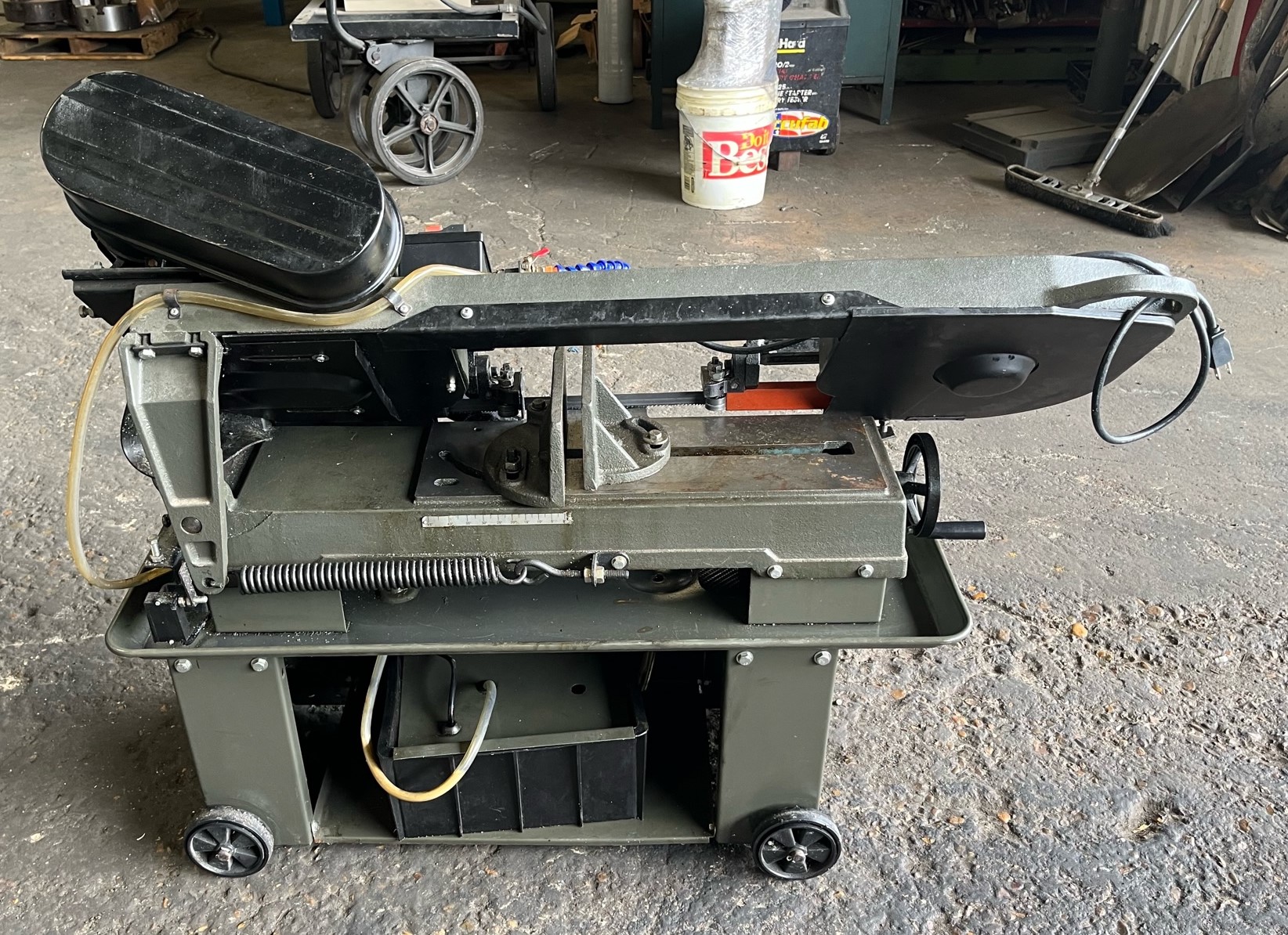

Dayton 7” x 12” Horizontal Bandsaw



Specifications:

Model                          21C004

Blade Thickness          0.035"

Blade Wheels Dia.       11-1/4"

Cutting Angle              45 Degrees

Cutting Capacity Rectangle 7" x 11-3/4"

Cutting Capacity Round         7"

Cutting Capacity Square        7"

Max. Blade Length     93"

Max. Blade Width       3/4"

Max. Thickness of Cut 7"

Min. Blade Length      93"

Min. Blade Width        3/4"

Miter Capacity             45 Degrees

Overall Depth              49.5"

Overall Height             39"

Overall Width              21.5"

Blade Speeds               135/160/225/395

Motor                           1HP, 1725 rpm, 12 Amps

Voltage                        110/1 phase/60 cycle



Price: $1,500.00



Features

  • This band saw delivers blade speed ranging from 135 to 395 FPM and features a feed rate which is regulated by a hydraulic cylinder for precise cutting.
  • Dayton 21C004 horizontal band saw has a dial control for the cylinder that is accessible at every stage of the operation and is capable of being set at any feed rate within its range.
  • This band saw has adjustable ball bearing blade guides to ensure perfect blade alignment, longer blade life and consistent accuracy.
  • Dayton 21C004 horizontal band saw is equipped with plastic casters for smooth mobility & easy portability, and a step pulley drive train for covering all sawing requirements.
  • This band saw provides an automatic shutoff facility and comes with an industry rated speed reducer for reducing the overall cost of the operating band saw system.
  • Dayton 21C004 horizontal band saw features heavy gauge steel construction for structural rigidity and resisting corrosion on exposed surfaces.
  • Dayton 21C004 horizontal band saw also features a gearbox that utilises a hardened worm shaft and bronze worm gear in an oil bath.
