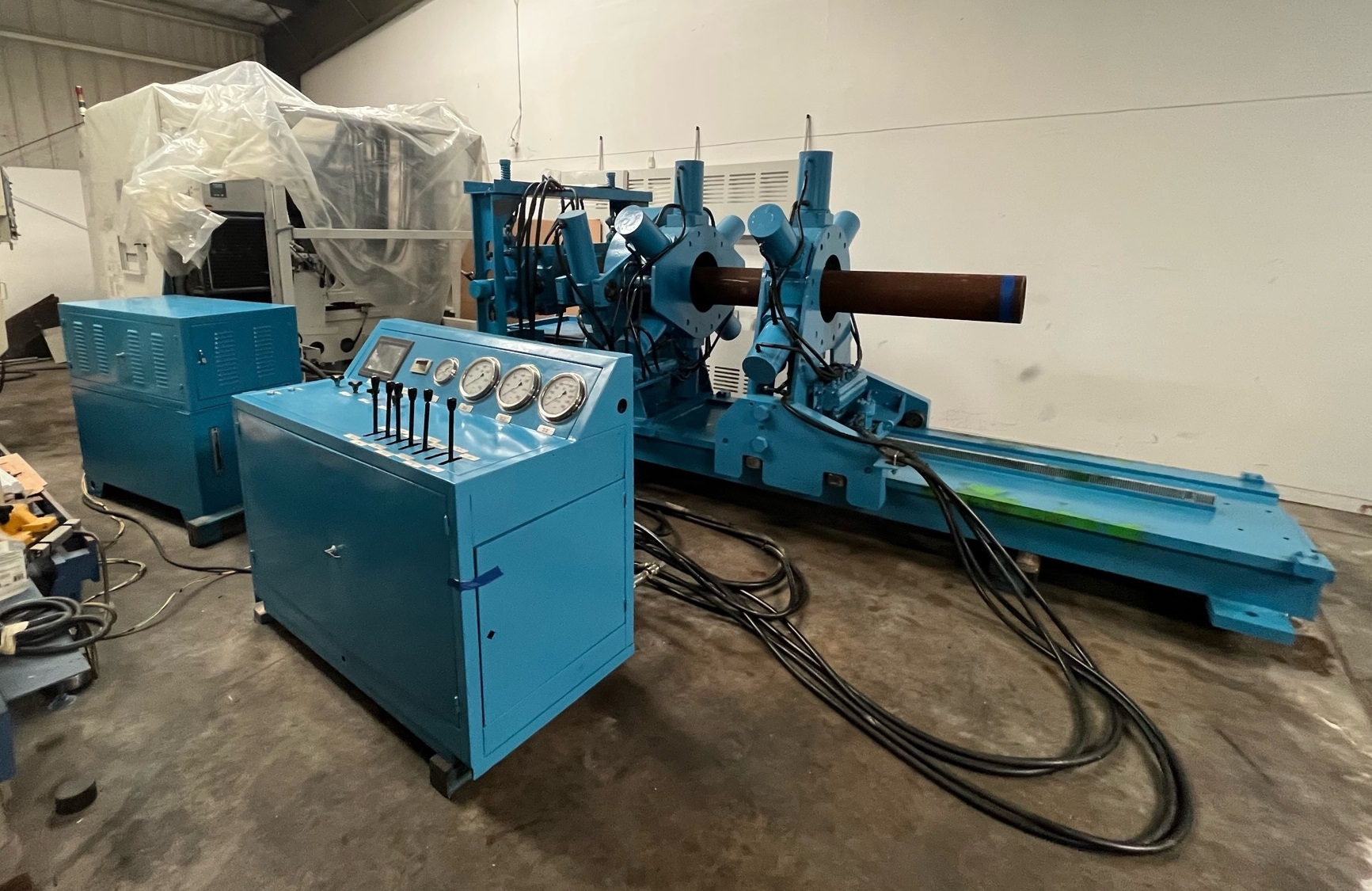

HUIFENG OIL EQUIPMENT COMPANY Make Up/Break out UNIT
Model
YXO16II
Serial number

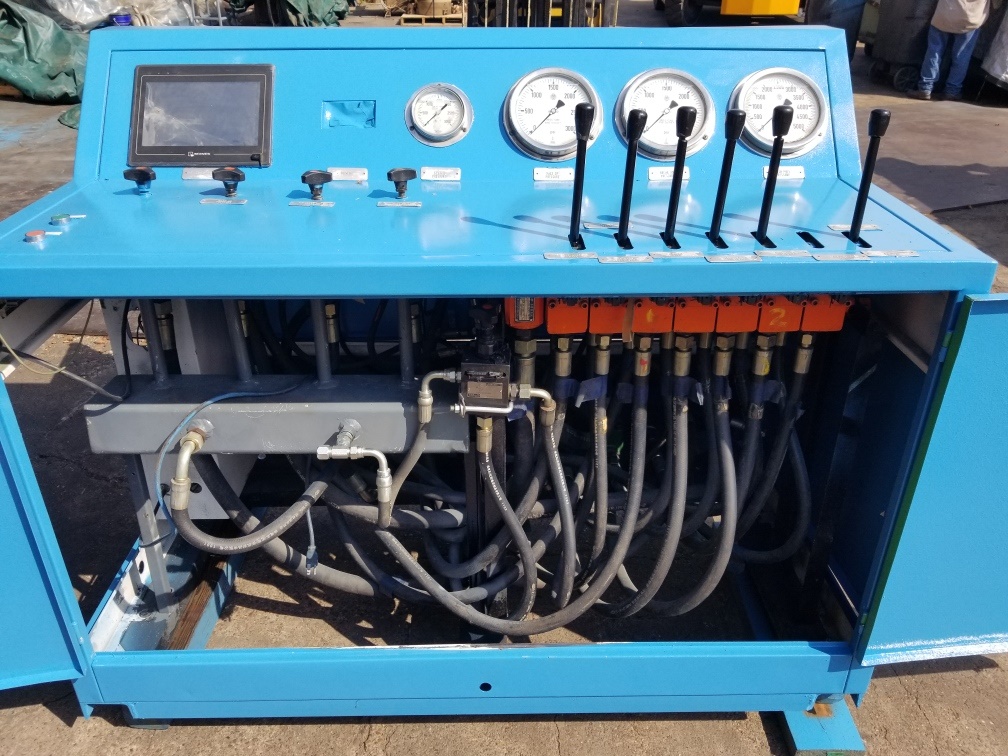

Console
Bench type equipped with touch
screen for the torque
recorder.
Hydraulic power unit
75 hp (65 Kw.) Three
vane pumps. One plunger pump. Customer to specify 380 or
440 V.
--Clamping mechanism 12 maximum MPA.
--Turnbuckle mechanism 18 maximum MPA
working pressure
--Dimensions 2000 x 1400
x 2122 mm, 78” x 55” x 84”
--Hydraulic tank capacity 1440 L, 380
gallons

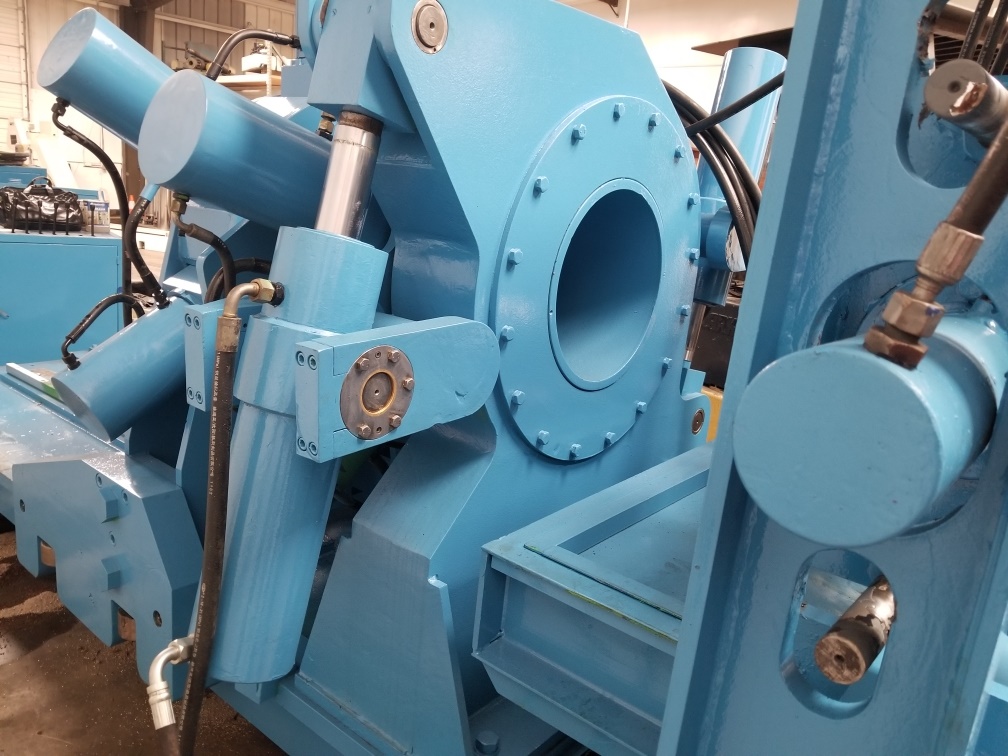

Bucking unit/Make up Break out unit:
Spinning wrench:
--Pipe capacity
73-350mm, 2 7/8—13 5/8
--Make up Break out torque range
4.4—150 Kn., 3,245—110,634 ft. lbs.

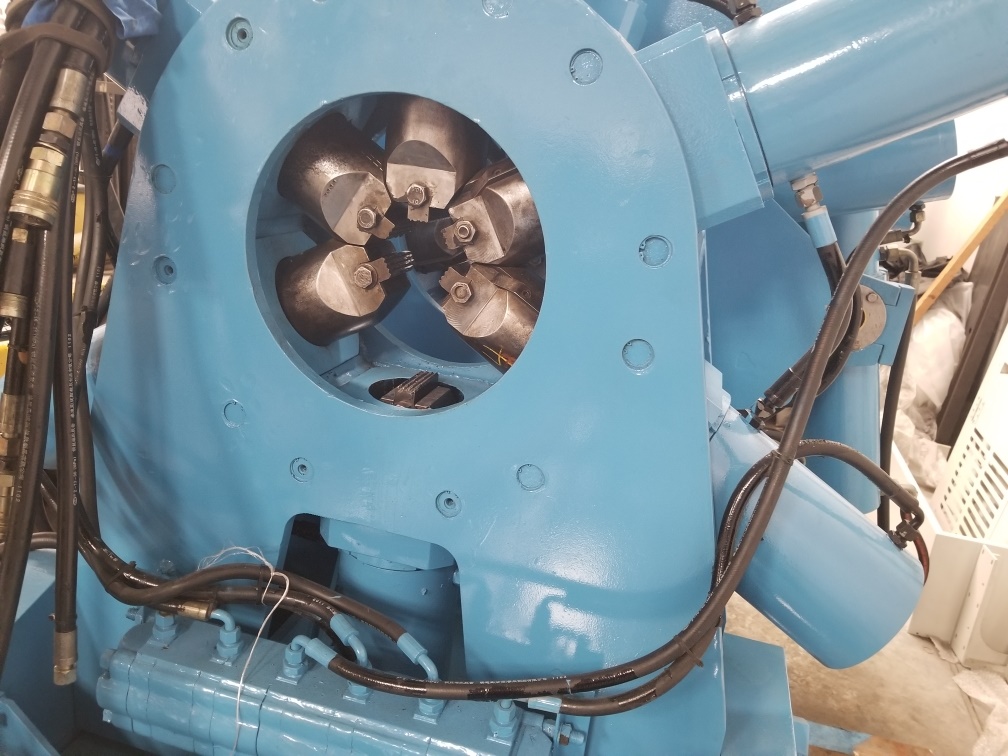

--Clamping force of each cylinder (6)
13,704 each
--Rpm range
Adjustable
Force:
Break out force
132,700 ft. lbs.
Max torque for make up
110,600 ft. lbs.
Minimum torque for make up
10,300 ft. lbs.
Price: $ 175,000. FOB Houston, TX.
Subject to Prior Sale.
**Check the manual to confirm all
specifications, specifically torque range.
Comments: This unit was originally
purchased by Drilco in China for their Chinese drill pipe
(Hevi-Weight) plant. After Schlumberger purchased Drilco the
plant was shut down and the unit brought back to Houston and put in
storage. At this time the cylinders were rebuilt. Then
Wellbore bought the Drilco Division from Schlumberger and the unit
was declared surplus. It has been sitting and unused for a few
years. It appears to be in very good condition.
