YUASA ROTARY TABLE
Specifications:

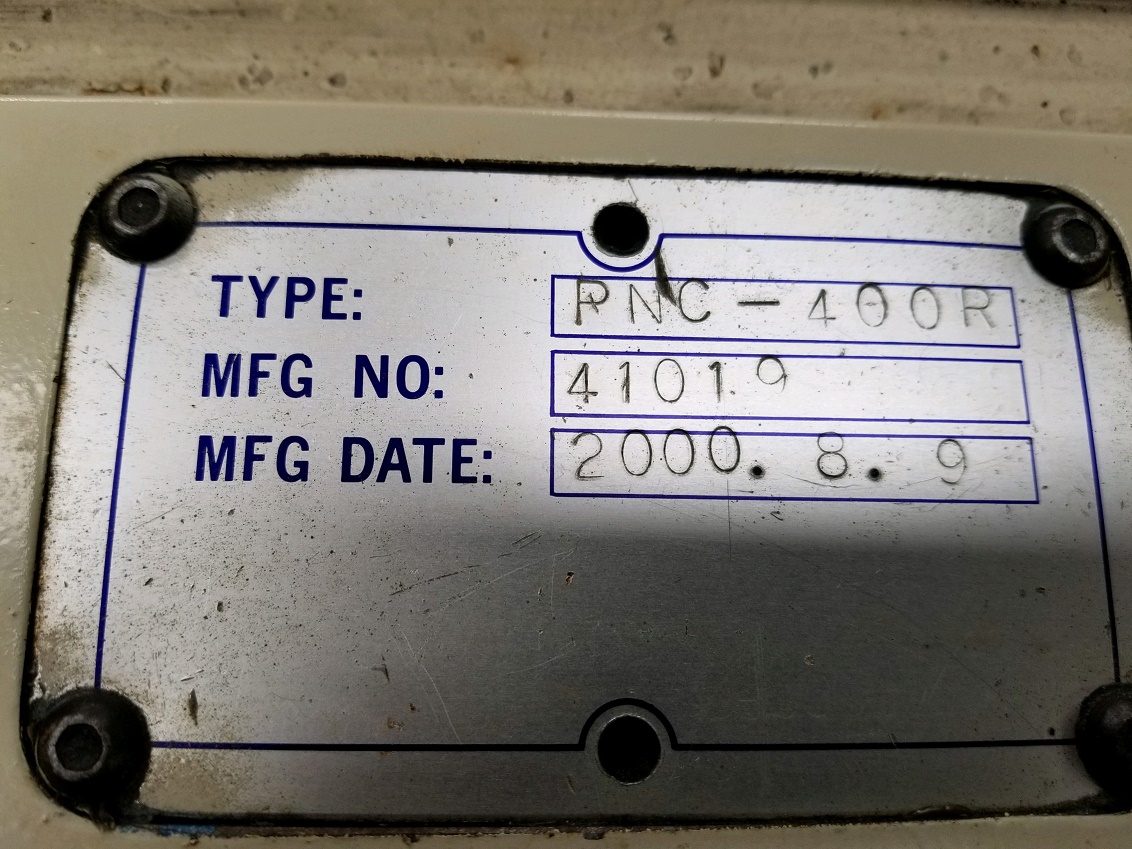

Model RNC-400R
Serial number 41019
Year of manufacture 2000
Outside diameter 16”
Inside diameter 6.5”
Center height 11”
Maximum rpm 25
Maximum torque 700 lbs.
Resolution 0.00025”
Maximum load horizontal 1,100 lbs.
Maximum load vertical 700 lbs.
Positioning accuracy +/- 7 seconds
Repeatability +/- 2 seconds
Setting position Horizontal or Vertical
Gear ration 180 to 1
T slotted face plate 8 slots
Weight 682 lbs.
Price: $ 3,950. FOB Houston, TX. Subject to Prior Sale.

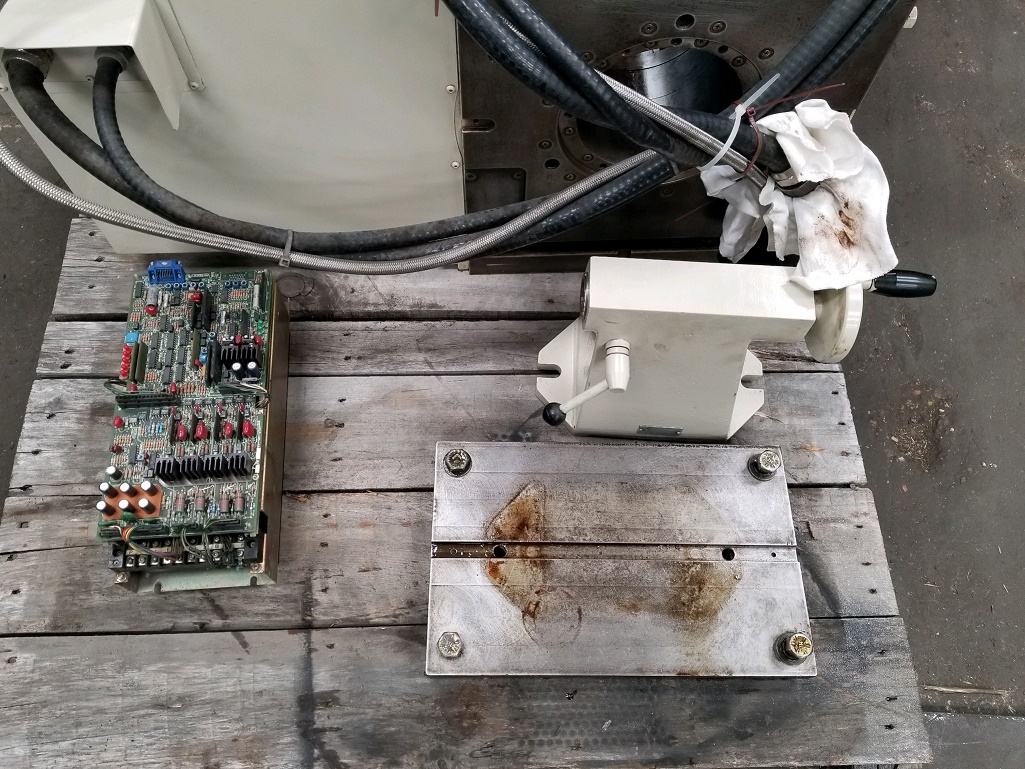

Equipped with:
--Tailstock and base plate.

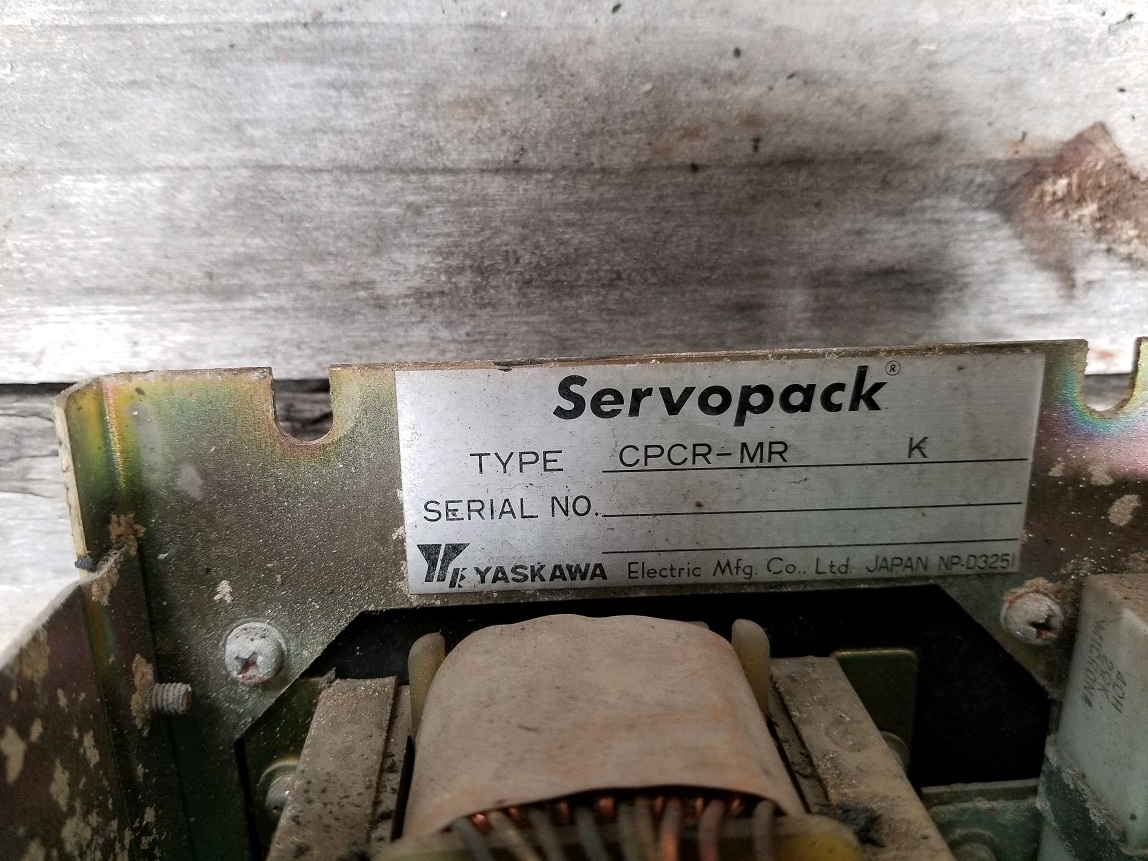

--Drive: Yaskawa “Servopack” drive, Model CPCR-MR K.
--Miscellaneous cables.
Comments: This drive was removed from a Mori Seiki MV-55/50 vertical machining center equipped with a Yasnac MX1 CNC control.
