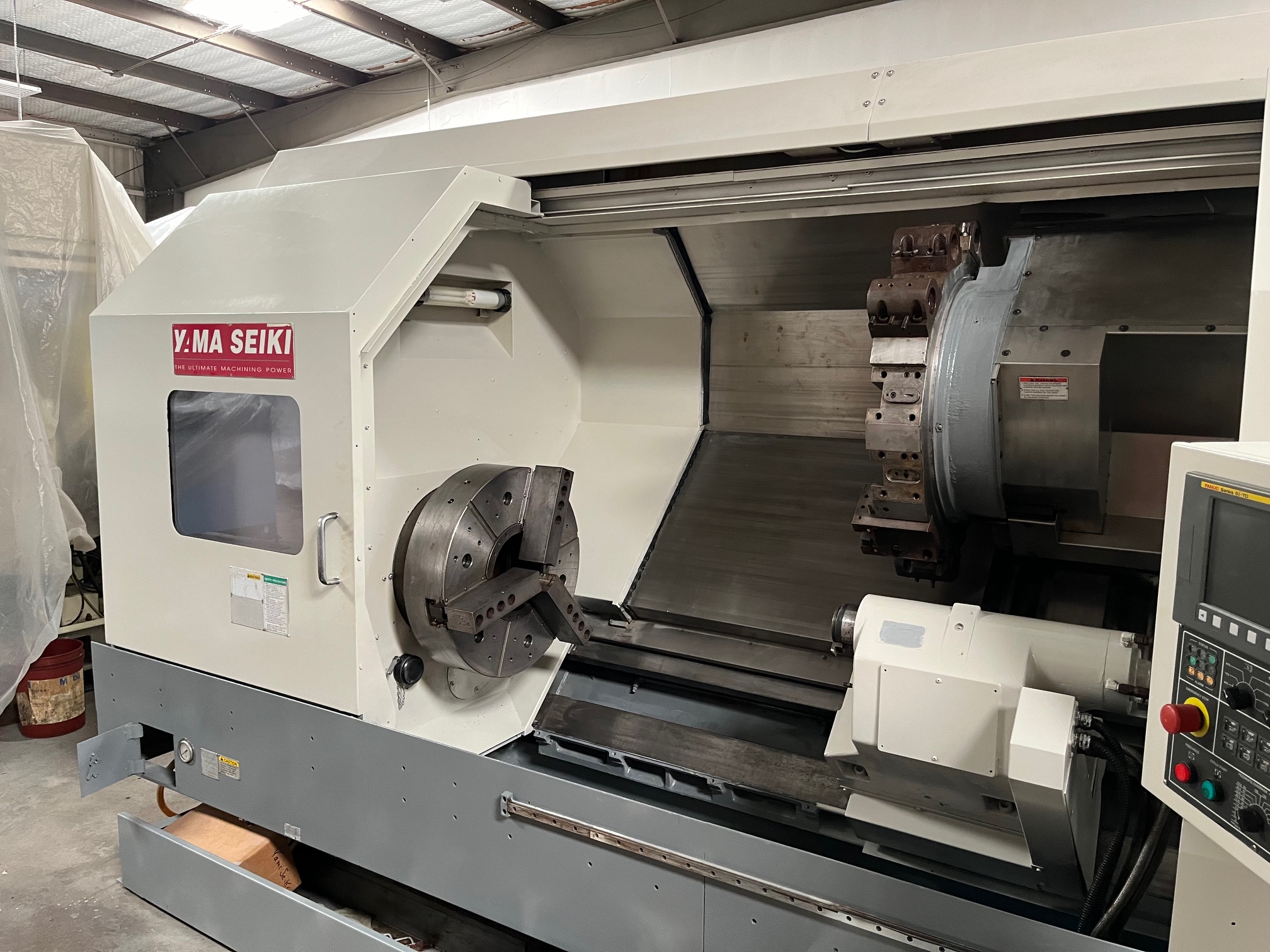

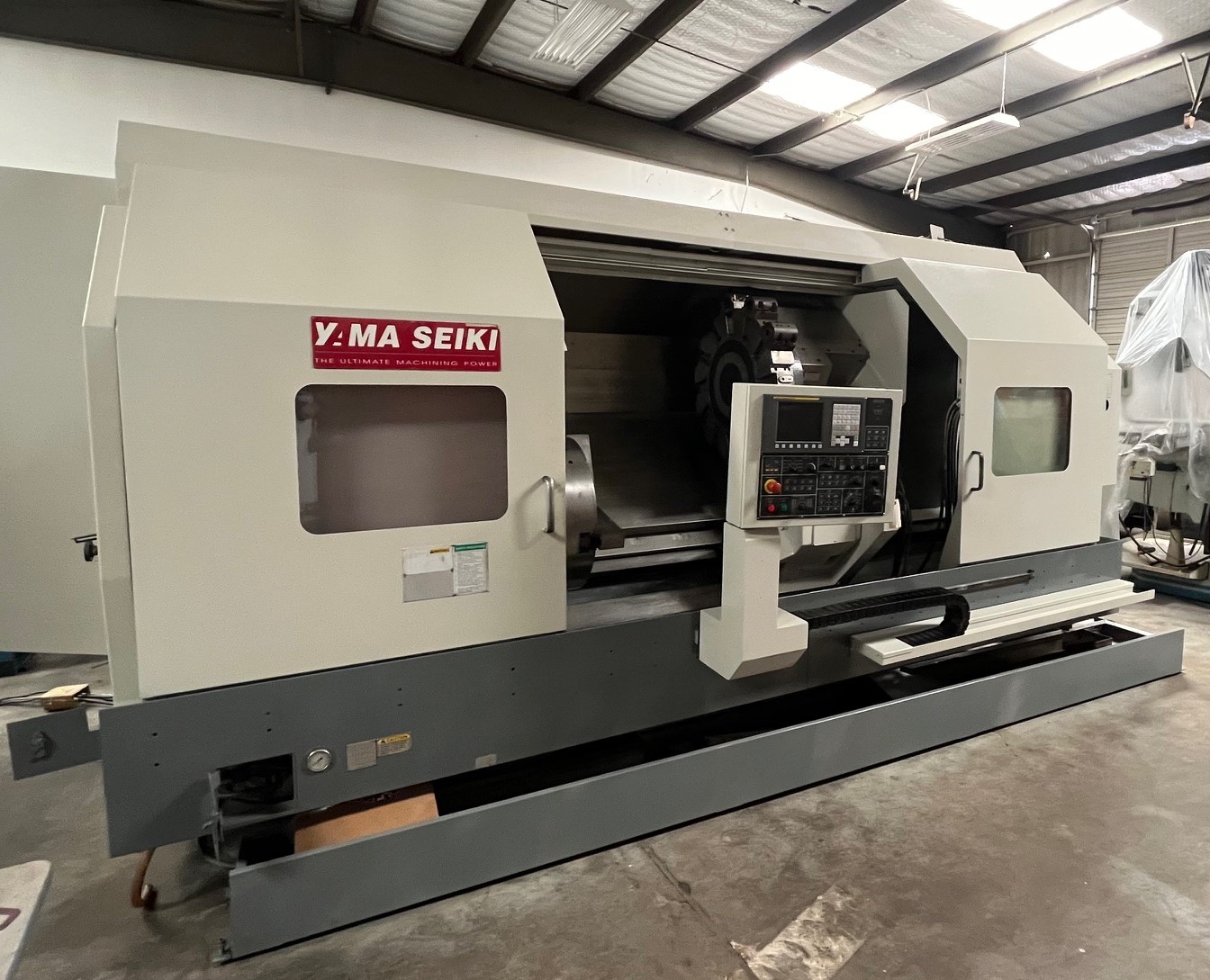

YAMA SEIKI GS 460L CNC LATHE
Specifications:
Model
GS 460 L
Serial number
91C012
Year of manufacture
02/2006

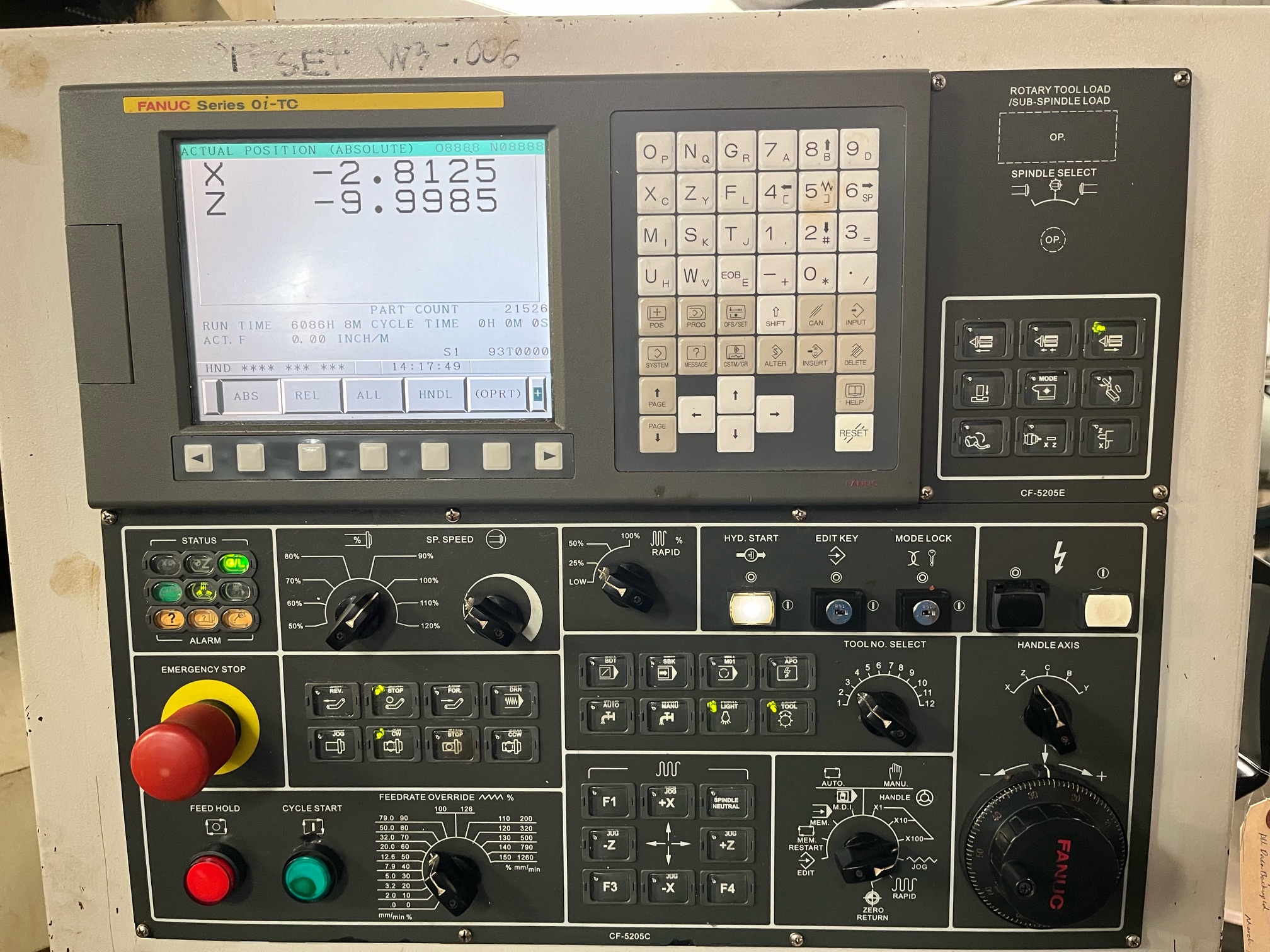

CNC control
Fanuc Oi-TC
Maximum swing
29”
Swing over saddle
28”
Maximum turning diameter
24”
Standard turning diameter
22”
Center distance
79”
Spindle bore
8”
Spindle nose
A-2-15
Chuck
SMW Autoblok 24” 3-jaw hydraulic, 10” bore
Main motor
50/60 hp.
Spindle speeds
6-671/1300 rpm, 2 speed gearbox
Travels, X-Z
13” x 80”

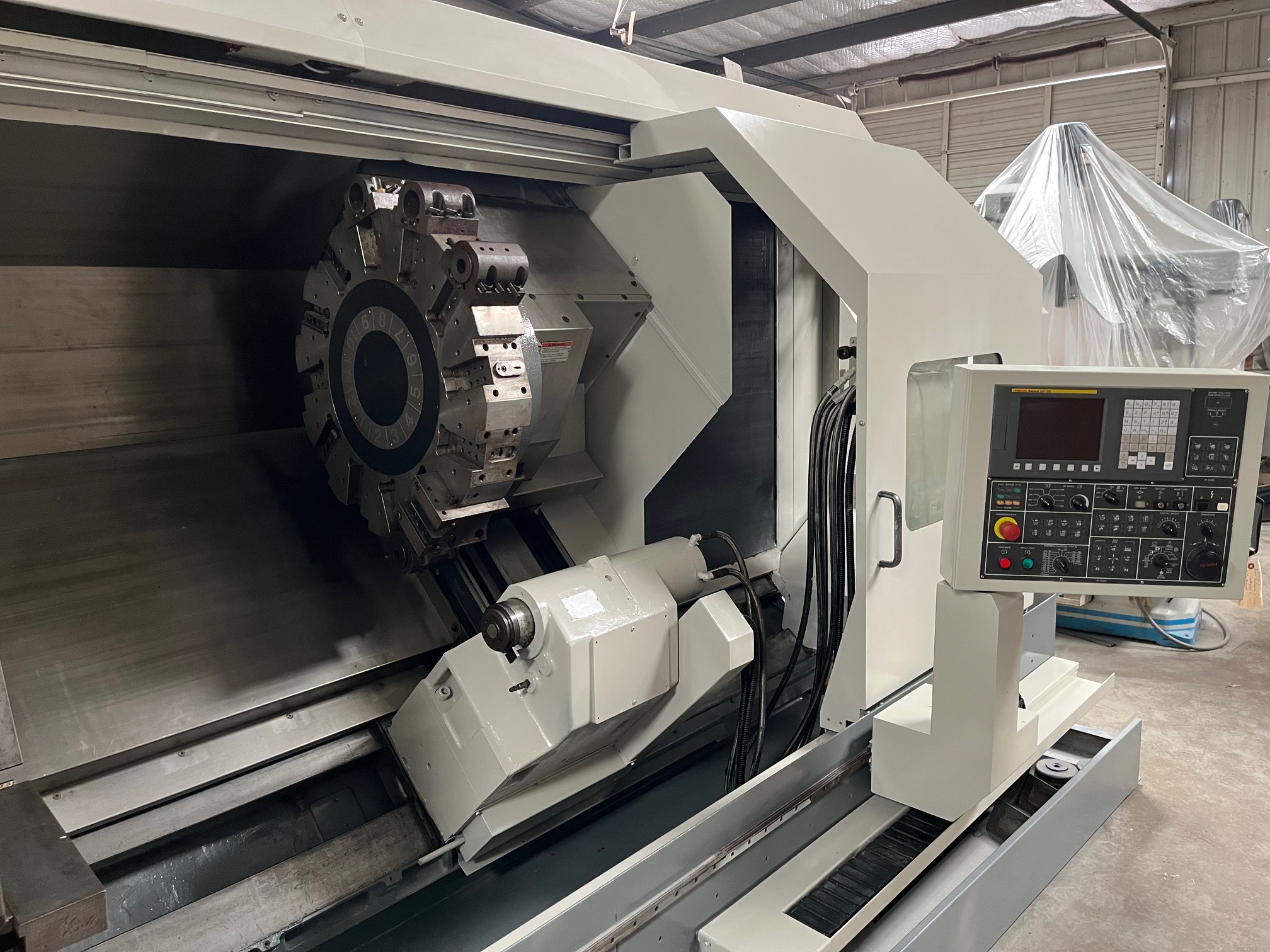

Turret stations
12 stations
Tailstock
Yes, live quill, 6” travel
Programmable quill/body
Yes, Yes
Positioning accuracy
+/- 0.0002”
Repeatability accuracy
+/- 0.0001”
Voltage
220/3/60
Power requirement
60 kVA
Coolant
Yes, 168 gallons
Weight
33,000 lbs.
Machine dimensions
17’ 6” W x 8’ 6” L x 8’ 6” H
Chip pan dimensions
17’ 6” W x 8’ 6” L
Chip conveyor dimensions
15” X x 2’ 4” W x 6’ H
Price: $ 89,500. FOB Houston, TX. Subject to Prior Sale.
Note: Price new in 2007 when purchased was $ 259,000 + 15,000 for
chuck upgrade.
