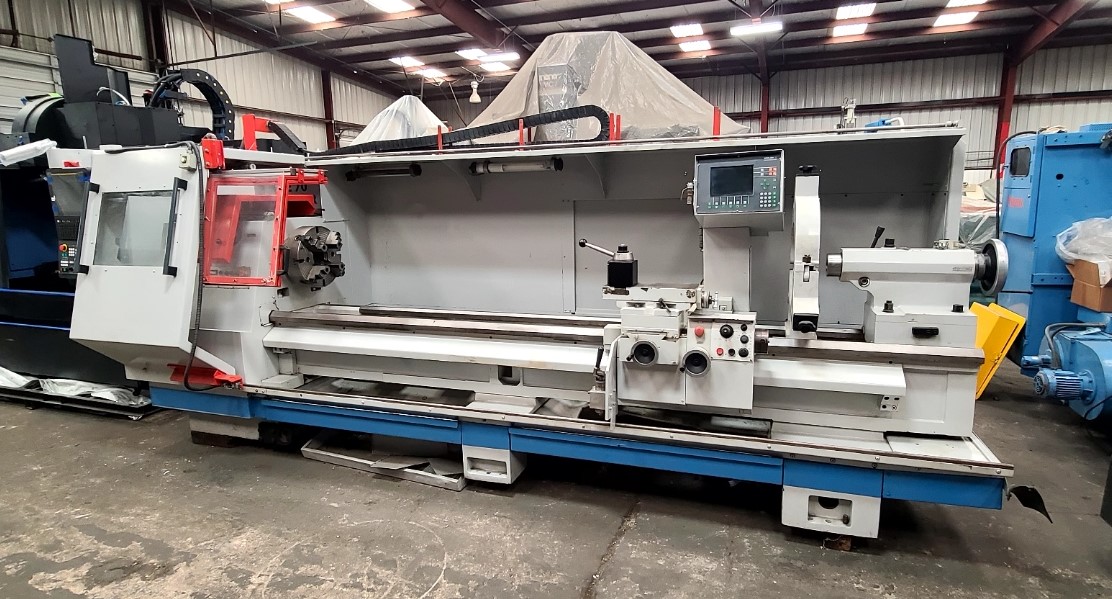

WEILER
E 70 TEACH AND LEARN CNC LATHE
Specifications:
Model
E 70/3
Serial number/YOM 123/1997
Center
distance
120”
Height
of centers
14”
Swing
over bed
28”
Swing
over cross slide
17”
Width
of bed
19”
Travel
of cross slide
16”
Travel
of top slide
5.5”
Length
of cross slide
33”
Width
of cross slide
10”
Tool
post
Yes, Aloris 4-way quick change
Spindle
hole
4”
Main
motor
32 hp. continuous/44 hp. 30 minute rating
Speed
range
1-1,800 rpm (Low 1-450, High 4-1,800 rpm)
Rapid
rate-long/cross
278 ipm./131 ipm.
Tailstock
Mk 6
Chip
conveyor
Yes
Operating voltage
400/3/60 (requires step up or down transformer)
Dimensions
160” W x 80” W x 75” H
Weight
13,000 lbs.
