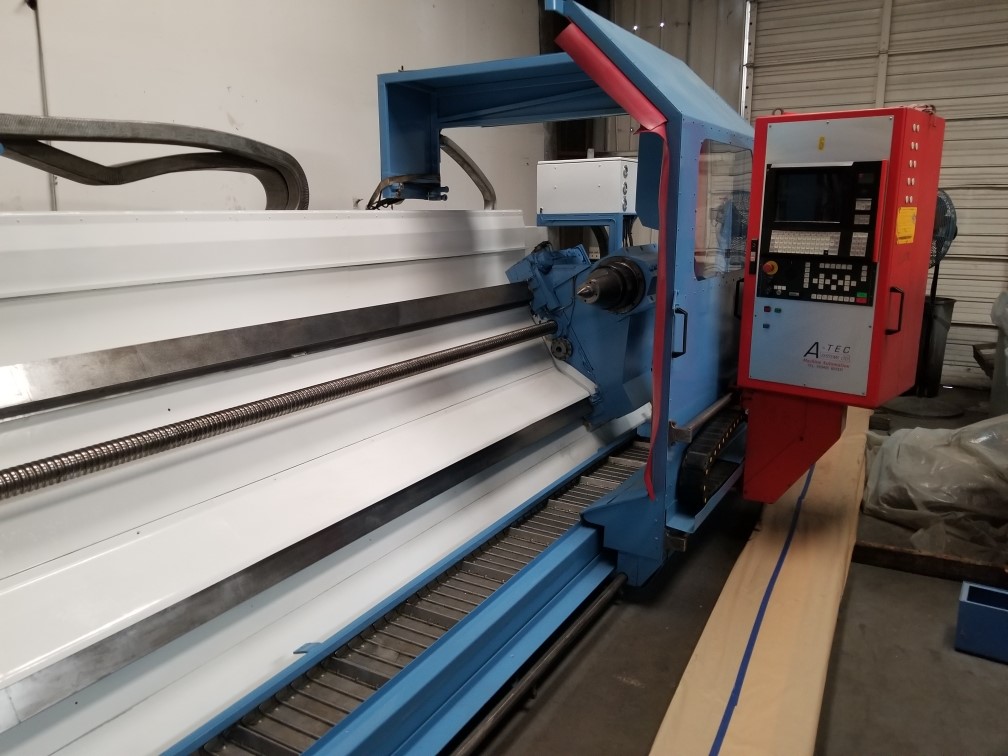

WEINGARTENER CNC SPIRAL MILLING LATHE
Maximum part length
228”
Maximum machining length
212”
Spindle center height
49”
Cross slide stroke range
2´- 6”
Quill diameter
8.6”

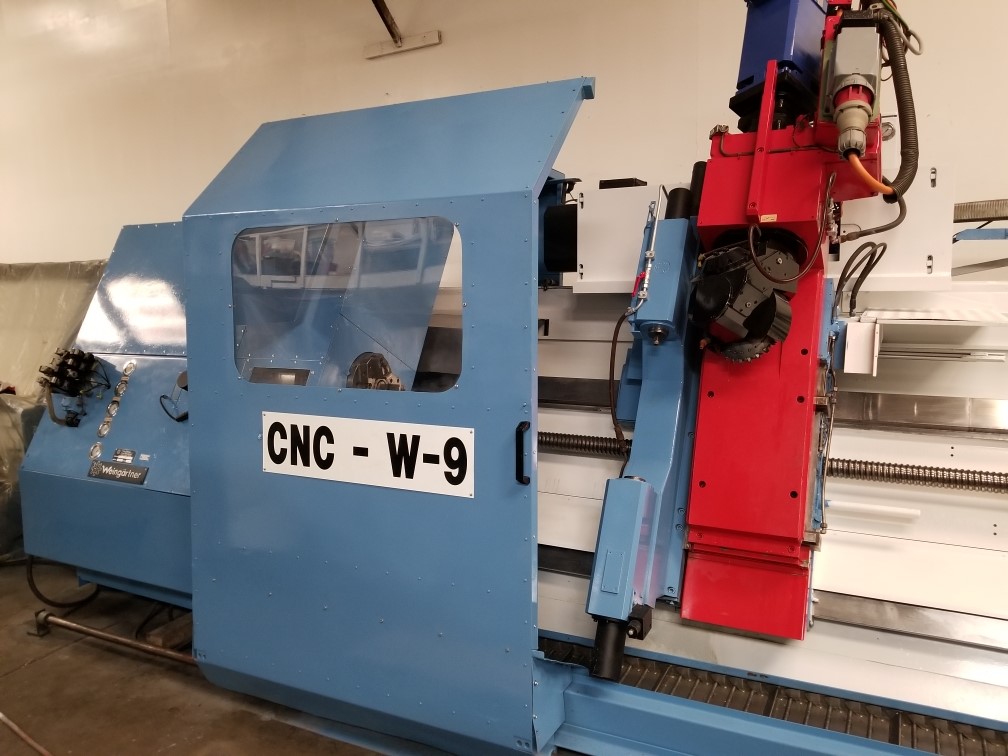

Head degrees swivel angle
+/- 90’
Central lubrication
Yes

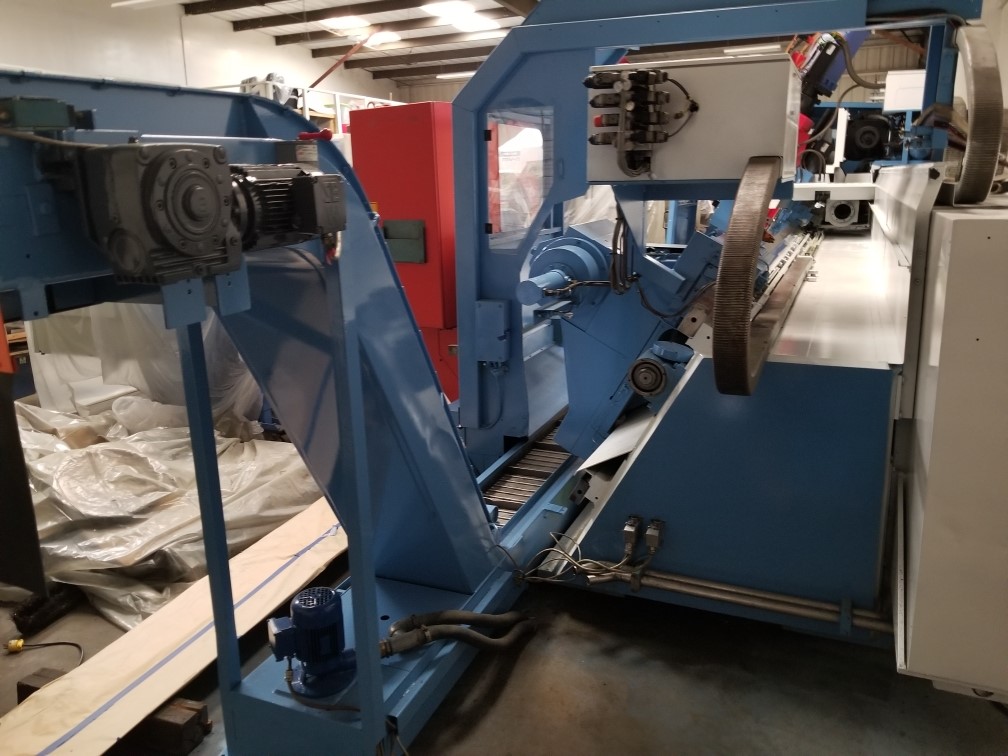

Chip conveyor
Yes
Full enclosure
Yes
Flute cutting capacity
2 – 7 flutes
Price: $ 195,000. FOB Houston, TX.
SUBJECT TO PRIOR SALE
Comments:
New
cost on this machine is about $ 2,000,000.

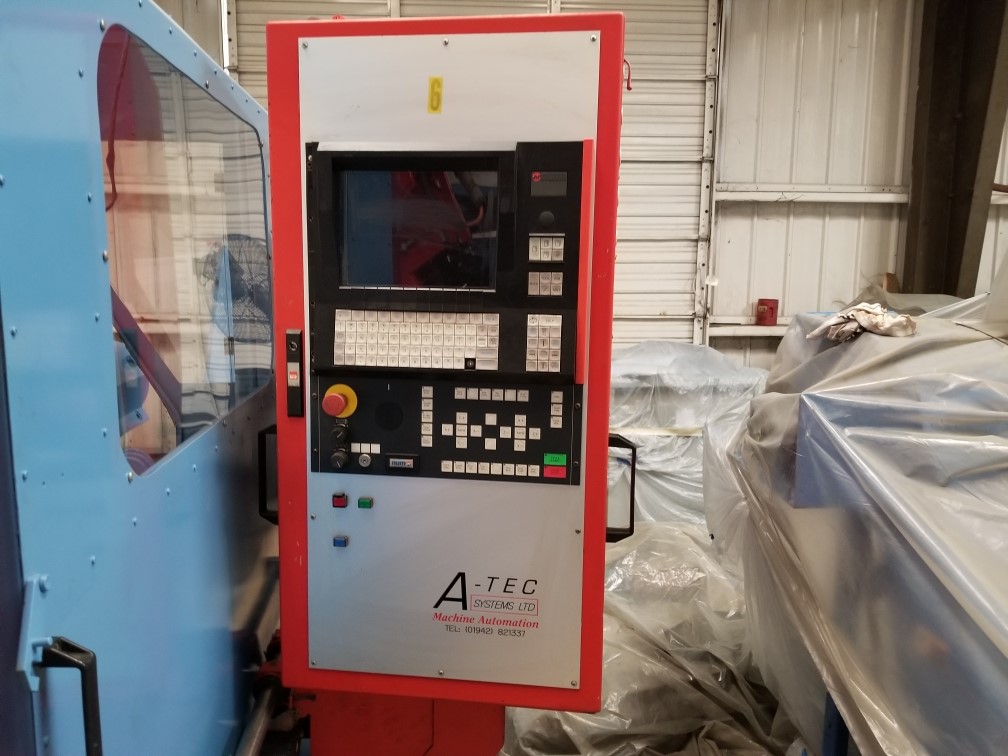

This unit was retrofitted with a new control in Scotland,
transferred to the Robbins and Myers plant in Willis, TX and never
put back into service.
We have a large box (30” x 30” x 30”) of manuals that go with this
machine
