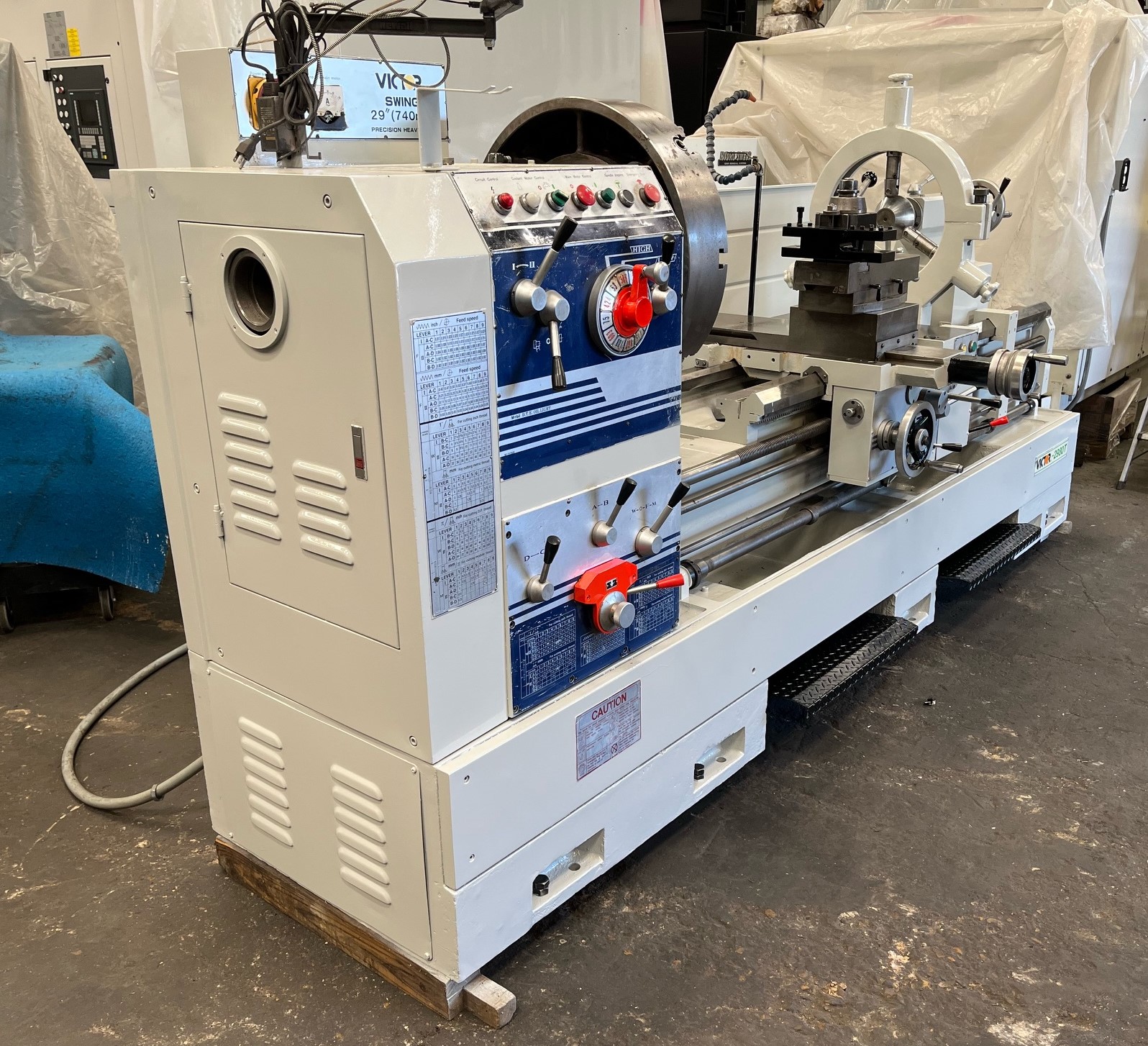

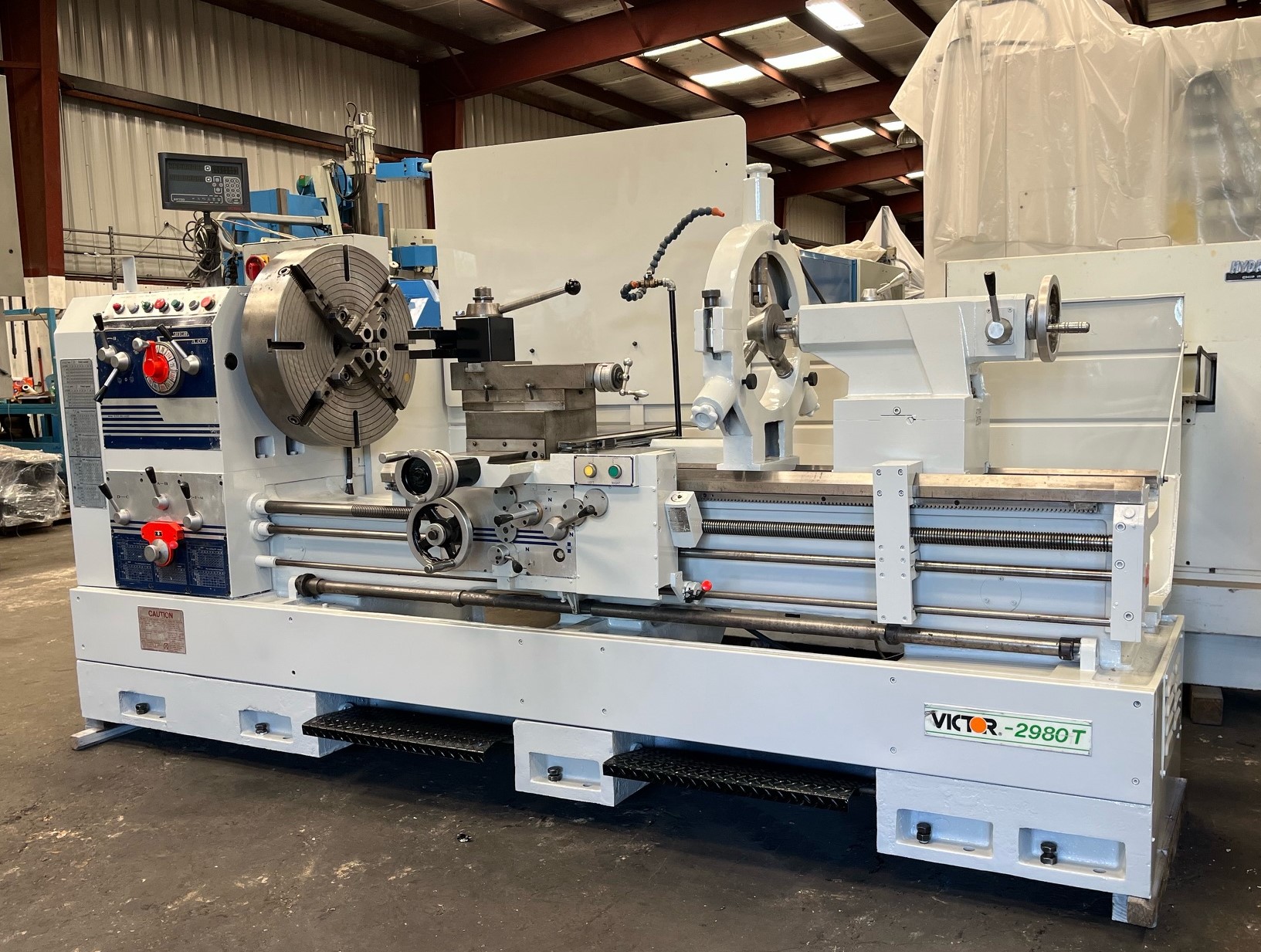

Victor 2980T Manual Lathe
Tough built to last with large 4-1/8" spindle bore, 4-way rapid
traverse, and 20 HP main motor. The best in its class to handle the
utmost demanding work.
MACHINE
Model
2980T
CAPACITY
Bed width
16-1/2"
Distance
between centers
73"
HEADSTOCK
Chuck
25” Bison HD 4 jaw
Spindle Bore
4 1/8”
Spindle nose
D1-11
Number of
spindle speeds
12 Steps
Range of
spindle speeds
25 ~ 1,200 rpm
Speed
selections
25, 38, 53, 75, 108, 149, 214, 308, 424, 603, 860, 1200
THREADS & FEEDS
Range of
longitudinal feeds
0.0012" ~ 0.0287"/rev.
Range of cross
feeds
0.0004" ~ 0.0118"/rev.
Inch threads
2 ~ 56 TPI x 45 kinds
Metric threads
0.5 ~ 14 mm x 31 kinds
CARRIAGE
Cross slide
travel
16-1/4"
Compound slide
travel
8-1/4"
MAIN MOTOR
20 HP
TAILSTOCK
Tailstock taper
center
M.T. #5
Tailstock quill
travel
7"
WEIGHT &
DIMENSIONS
Shipping
dimensions (LxWxH)
140"x54"x75"
Gross weight
9,200 lb
Price: $24,500
