SUMMIT HOLLOW

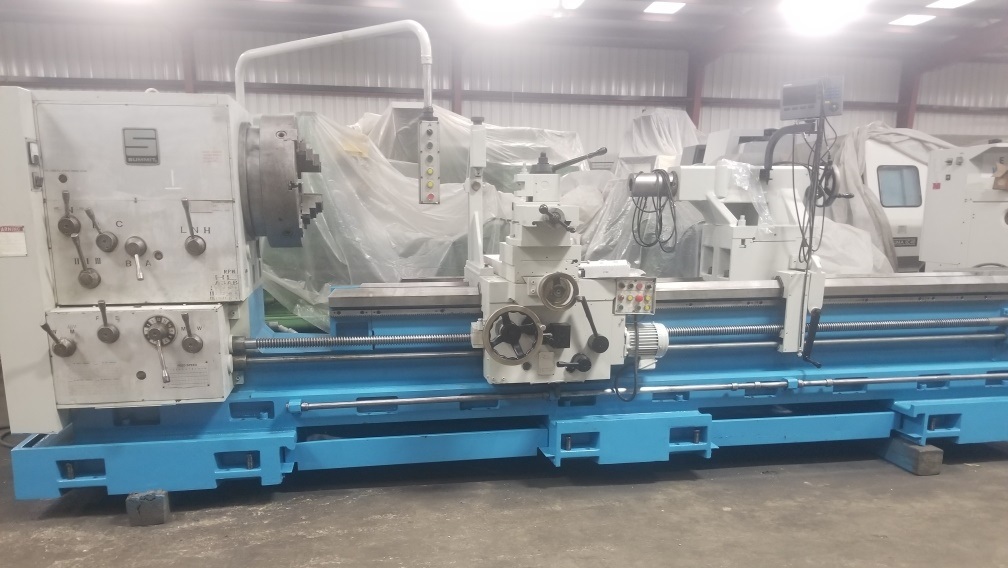

SPINDLE OIL COUNTRY ENGINE LATHE
Specifications:
Model
42 x 120
Year/Serial number 2008/
08056
Swing over bed
42”
Swing over cross slide
29”
Swing in gap
63”
Width of gap
22”
Width of bed
22”
Spindle bore
12.2”
Chucks

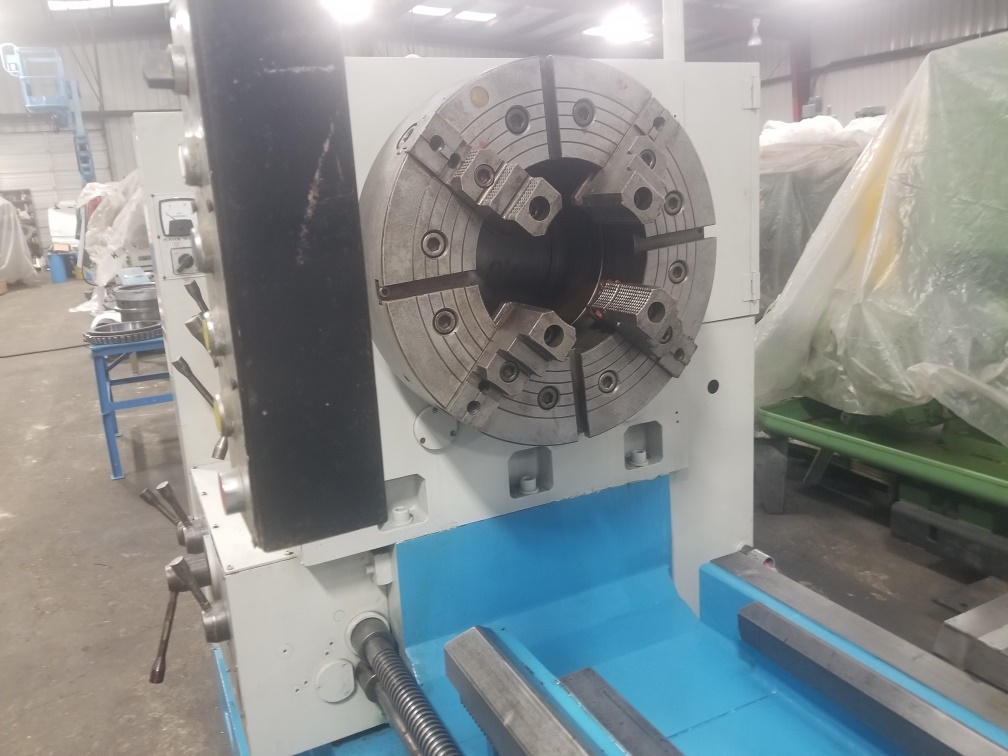

Two 24” Bison 4-jaw chucks with 12.5” bore
Spindle nose
A-2-20
Spindle speeds
4-300 rpm.
Center distance
120”
Longitudinal feeds
0.13-1.92 (48)
Lead screw diameter
2”
Metric threads
2-30 mm/pitch (48)
Inch threads
1-16 TPI (48)
Main motor
30 hp.
Rapid motor
1/2 hp.
Coolant pump motor
1/4 hp.
Taper attachment
Yes
Digitals Acu-Rite
Machine weight
21,000 lbs. plus chucks
Equipped with:
NEW Acu-Rite digital readout with full
length scales.
Thread dial, Steady rest, Follow
rest, Coolant with chip pan. System,
Rapid traverse on the carriage.
Price: $ 94,500. FOB Houston,
TX. Subject to Prior Sale.
