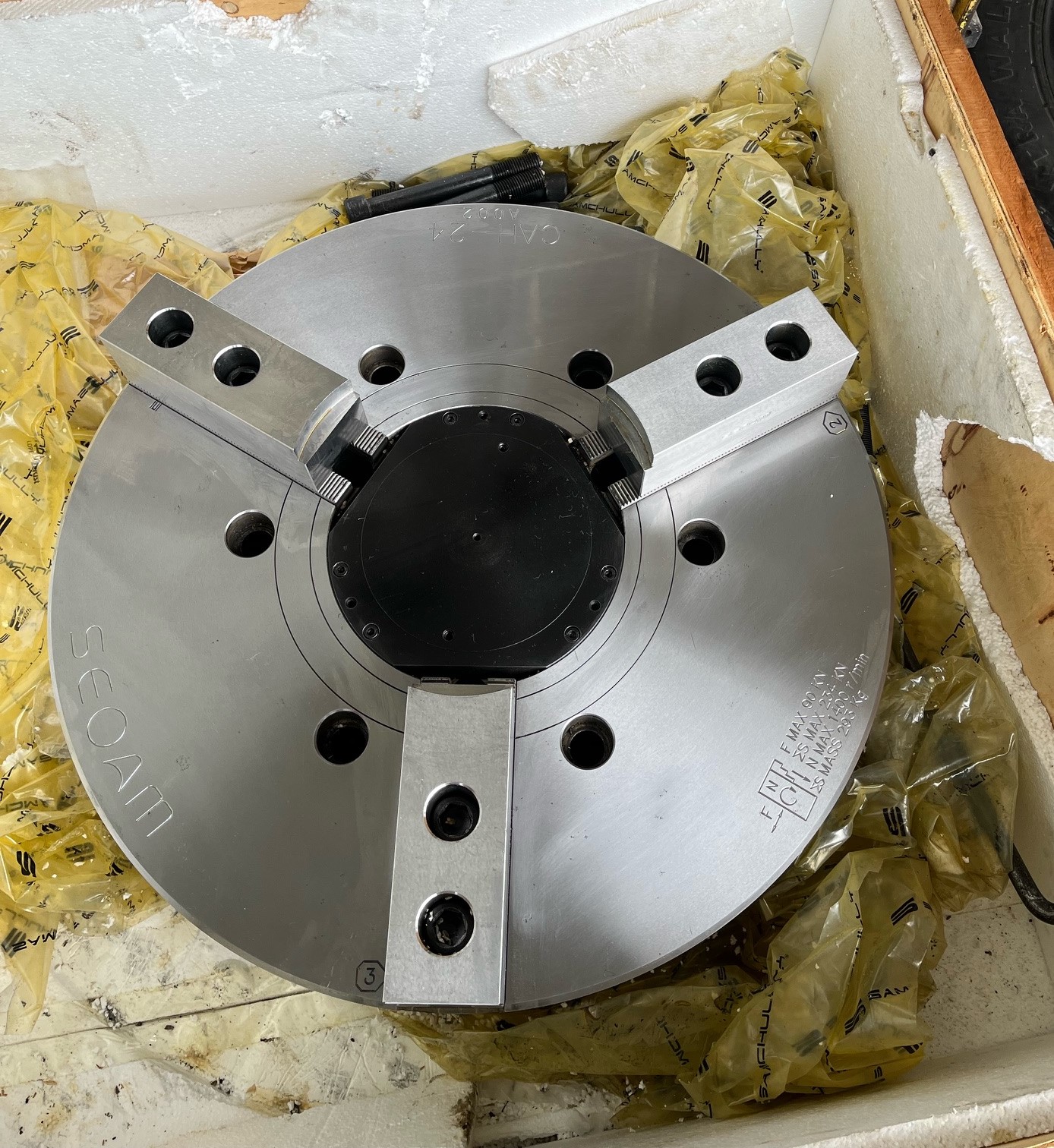

SEOAM 24” 3-JAW HYDRAULIC CHUCK
Specifications:
Model
CAH-24 Big Bore Power Chuck
Serial number
A002
Spindle nose
A-2-15
Thru hole
diameter
165 mm
Jaw stroke
10.4 mm,
Plunger stroke
23 mm
Maximum
gripping diameter
610 mm
Minimum
gripping diameter
110 mm
Maximum input
force
90 KN, (9177 kgf)
Maximum static
gripping force 234 KN,
(23861 kgf)
Maximum rpm
1400 rpm
Weight
293 kg
Moment of
inertia (GD2)
651.2N, (66.4)
Matching
cylinder
YSH-15
Price: $ 7,950.
FOB Houston, TX. Subject to Prior Sale.
Condition: NEW.
New cost $ 16,000 apx. Plus freight.
Manufacturer:
SEOAM, Gwangju, South Korea. Most of these chucks
come in on Samsung CNC lathes as original equipment.
SEOAM 24” 3-JAW
HYDRAULIC CHUCK
