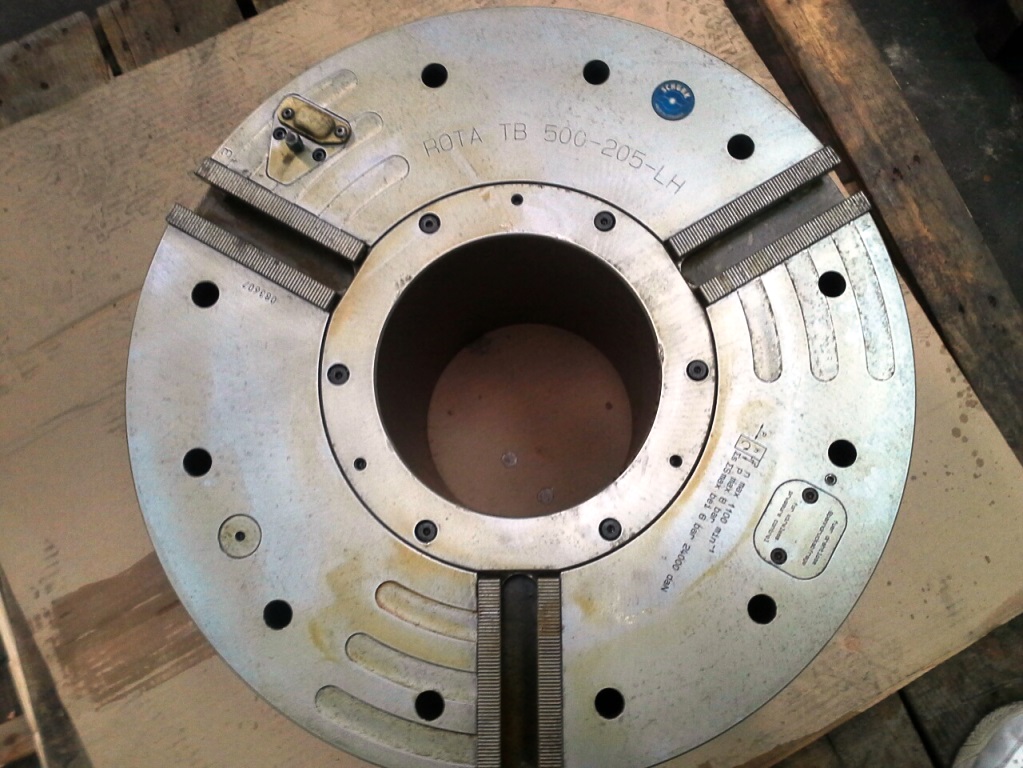

SCHUNK TB 500-205 LH EXTENDED STROKE AIR CHUCK
Schunk part number
0818015
Serial number
083607
Chuck diameter
500 mm (19.68”)
Thru hole
205 mm (8.07 ”)
Spindle nose
flat back
Stroke per jaw
0.66” rapid, 0.33” clamping
Total stroke per jaw
1”
Jaw serrations
3/32 x 90’
Maximum rpm
1,100 rpm
Maximum clamping force
240 kN @ 85 psi.
Weight without top jaw tooling
748 lbs.
Price each:
$18,500. FOB
Included with the chuck: Air
distributor ring.
Condition:
Very good to excellent.
30 day return.
Delivery:
Stock, our warehouse.
Mounting package:
--We can also supply a full wrap
around distributor ring mounting bracket (DRMB) for a front mounted
chuck or stand-off brackets for a rear mounted chuck.
We also supply adapter plates and can do the complete
installation if required.
Factory List Price $ 46,361. USD
