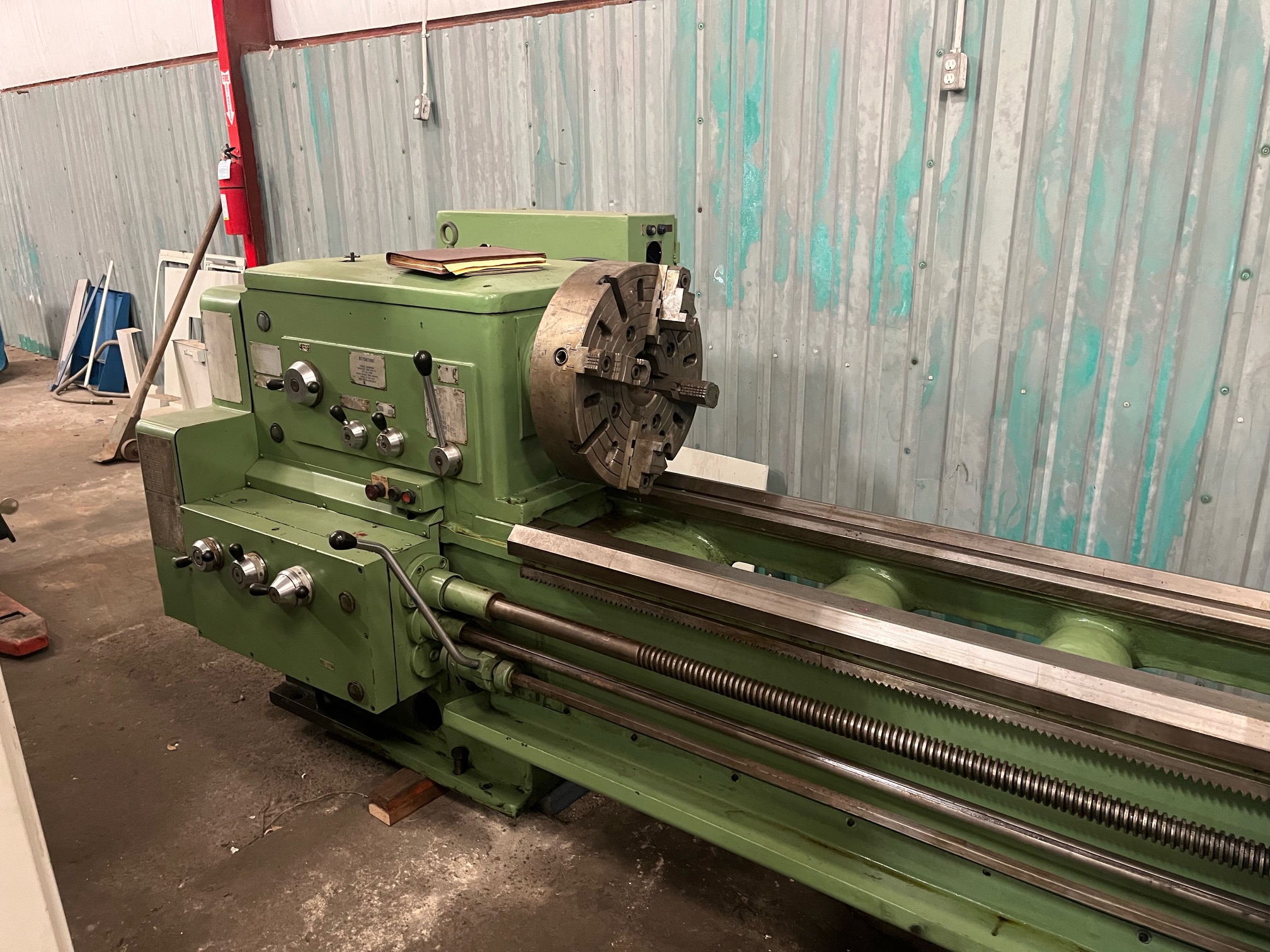

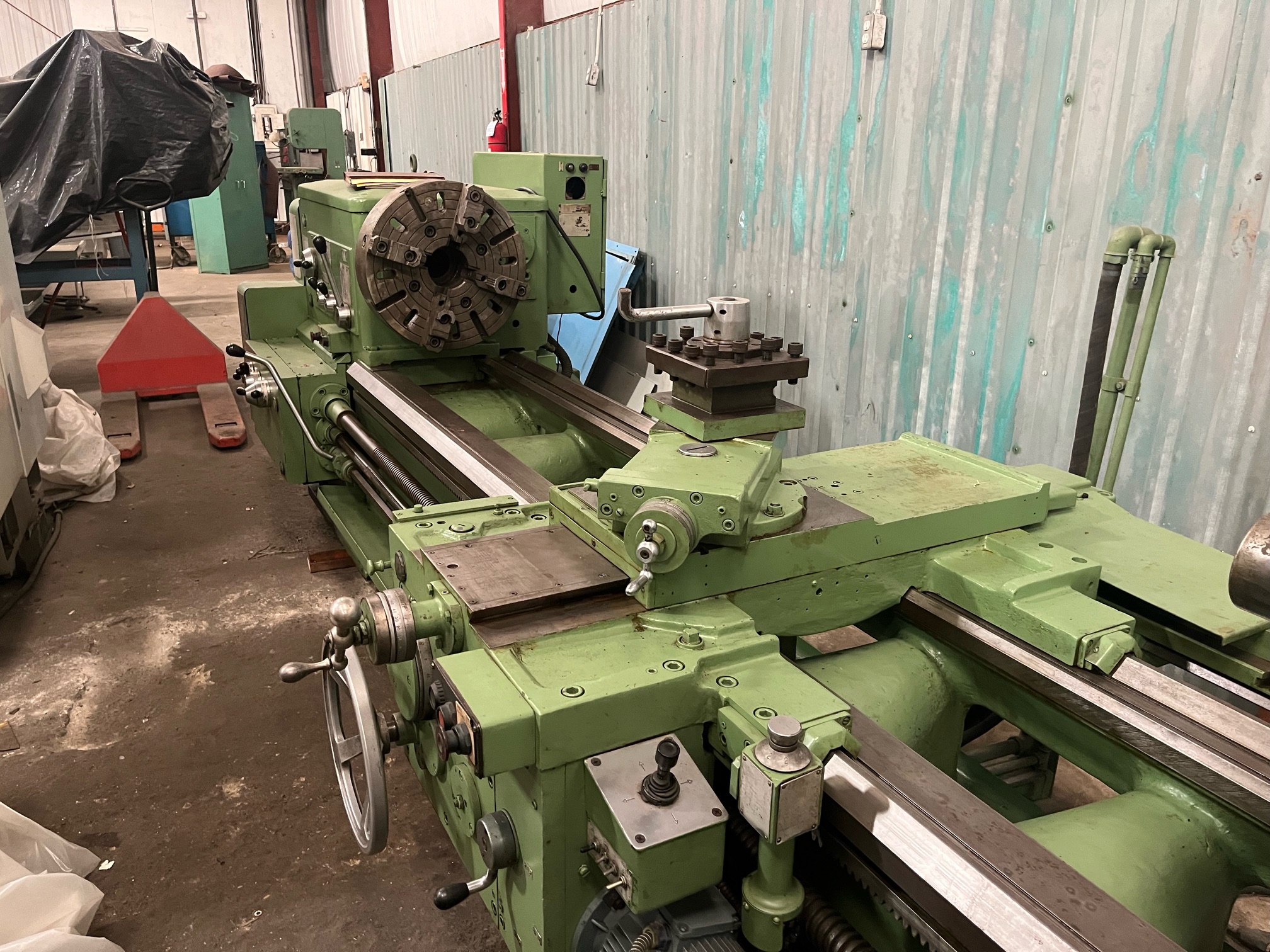

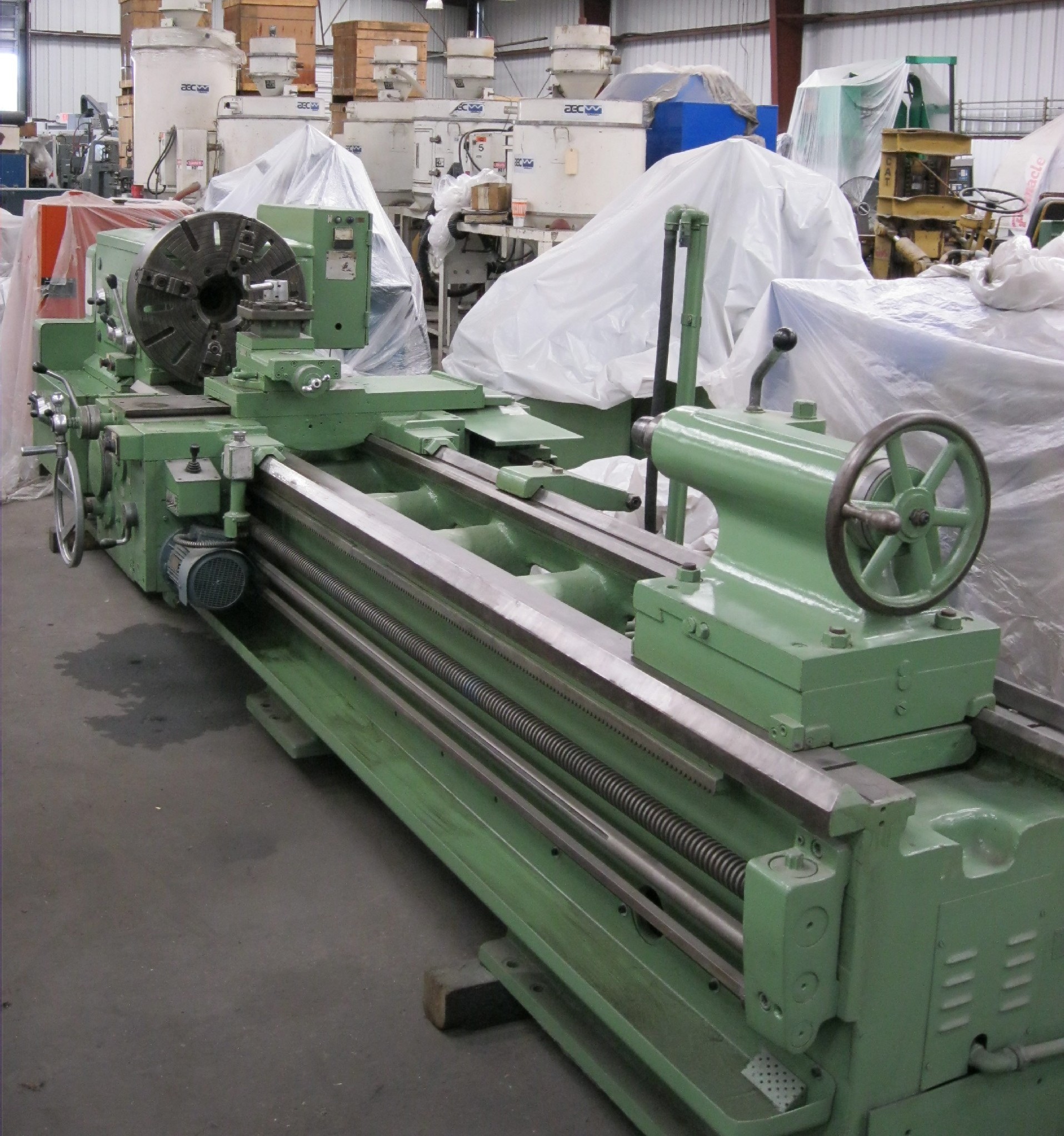

RYAZAN ENGINE LATHE

Specifications:
Model                                   1M63N
Serial number                      4749 (1991)
Swing over the bed              27.56”
Swing over the carriage       13.78”
Cross slide travel                 15”
Center distance                   118”
Chuck                                   24” 4-jaw with a 6” bore,
                                             2-piece top jaw
Spindle hole                         3.4”
Threading                             Inch, Metric, Diametral
                                             and Modular threading
Spindle speeds                    10-1250, 22 steps,Feeds 32
Main motor                           20 hp
Electrics currently                440volt
Dimensions                         206” Long x 70” wide x 60” high
Weight                                12,600 lbs.

Price: $ 15,500 FOB Houston, TX Subject to prior sale.

Current new cost on this lathe is $ 75,000. Shamrock Machinery and
Stan Canada import these lathes and stock parts for the machines.
