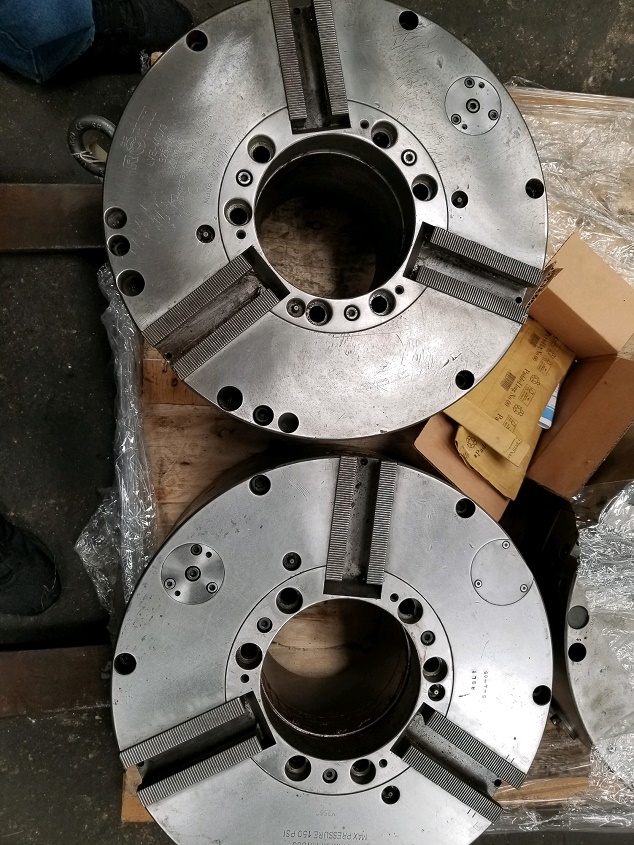

ROHM STANDARD STROKE AIR CHUCK
Specifications:

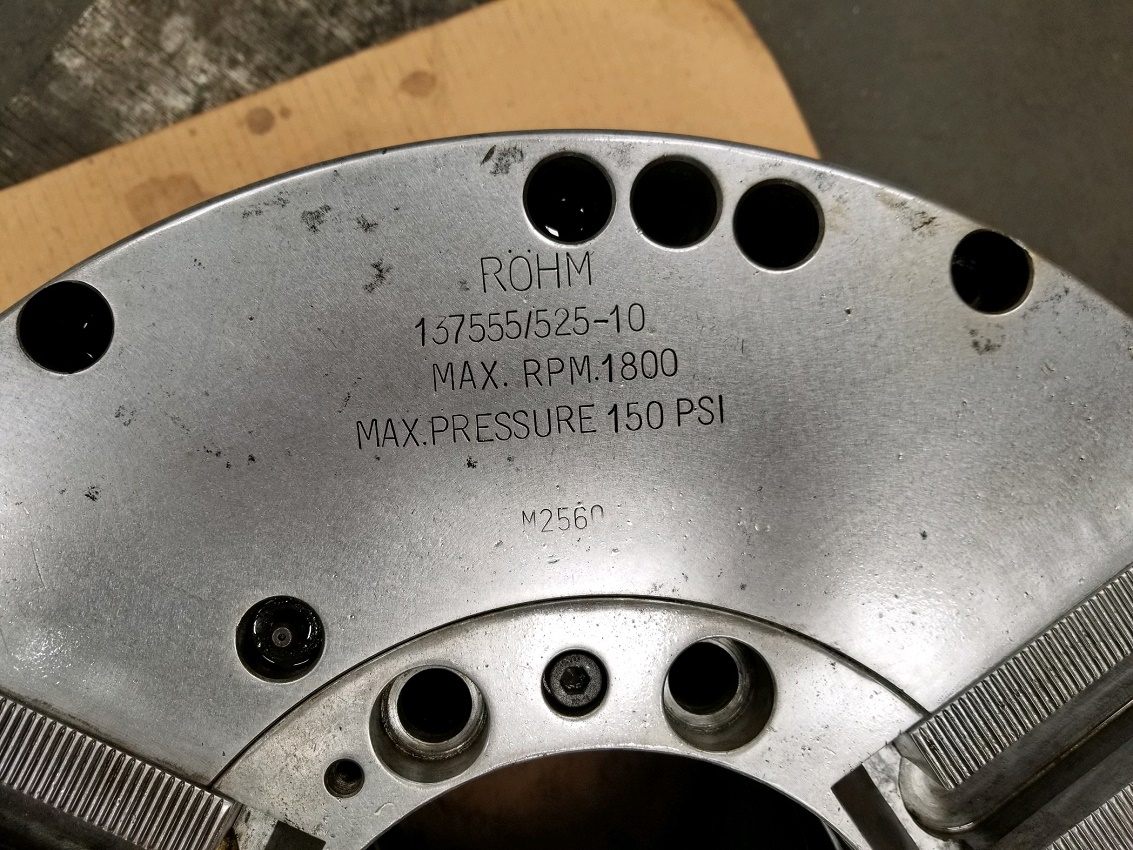

Model LVE 400-3 (525-10)
Serial number 137555
Diameter 18”
Thru hole 6 3/8”
Chuck height 10”
Spindle nose Flat back
Jaw serrations 3/32” x 90’
Jaw stroke 7 mm or 0.33”
Max Clamping force @ 85 psi 180 kN or 36,000 psi.
Max rpm 1,800 rpm.
Weight without top jaws 340 lbs. appx.
Price: $ 6,500. FOB Houston, TX.
Condition: Good. We have disassembled, cleaned and checked the parts of this chuck.
We reassembled the chuck with NEW O-rings and any other parts required and checked
the chuck under pressure in the open and closed position overnight to make sure it was
holding air.
