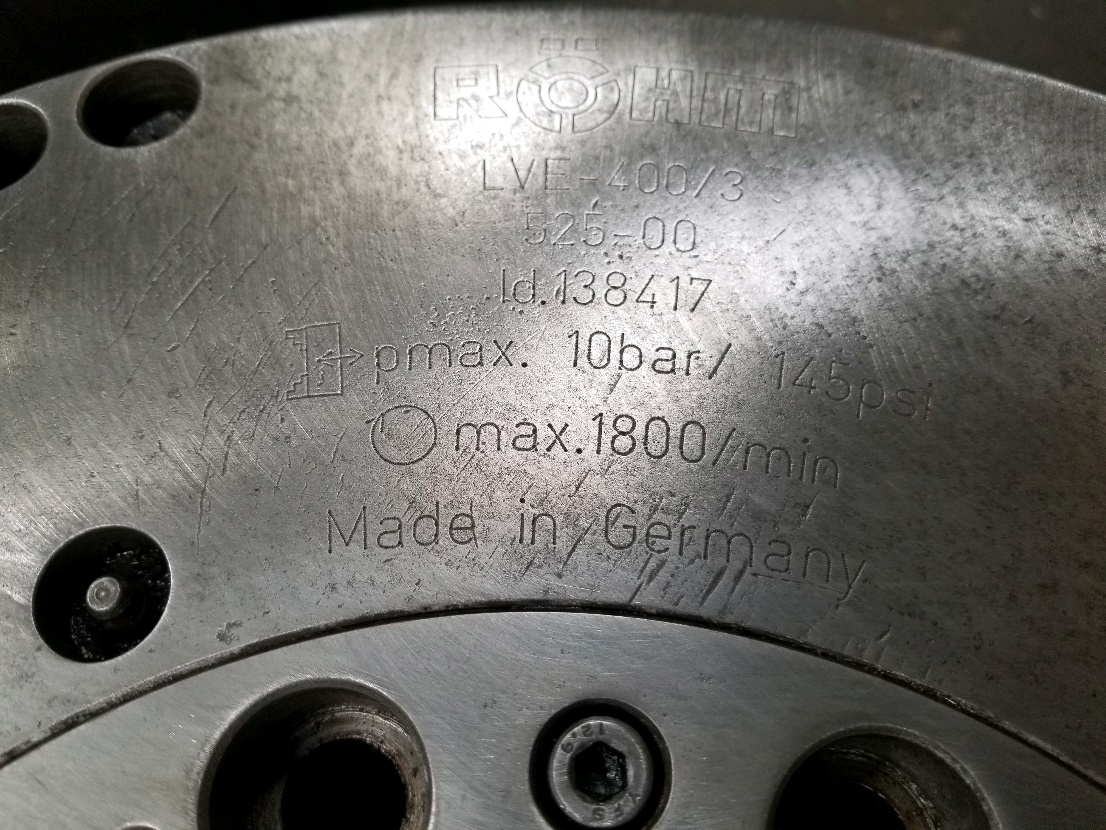

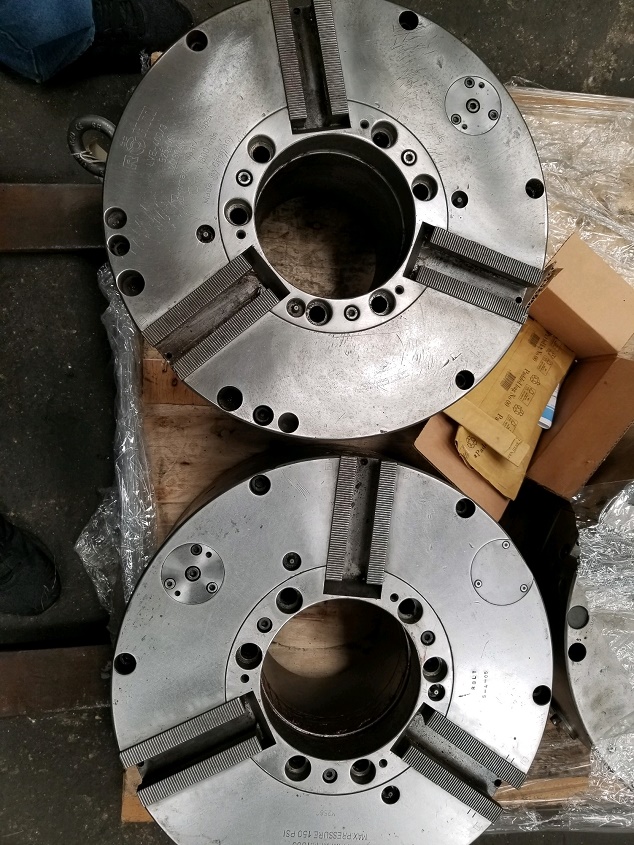

ROHM STANDARD STROKE AIR CHUCK

Specifications:
Model                                              LVE 400-3 (525-10)
Serial number                                138417
Diameter                                        18”
Thru hole                                         6 3/8”
Chuck height                                  10”
Spindle nose                                  Flat back
Jaw serrations                               3/32” x 90’
Jaw stroke                                      7 mm or 0.33”
Max Clamping force                     @ 85 psi 180 kN or 36,000 psi.
Max rpm                                         1,800 rpm.
Weight without top jaws                340 lbs. appx.

Condition: Good. We have disassembled, cleaned and checked the parts of this chuck.
We reassembled the chuck with NEW O-rings and any other parts required and checked
the chuck under pressure in the open and closed position overnight to make sure it was
holding air.

Price: $ 6,500. FOB Houston, TX.
