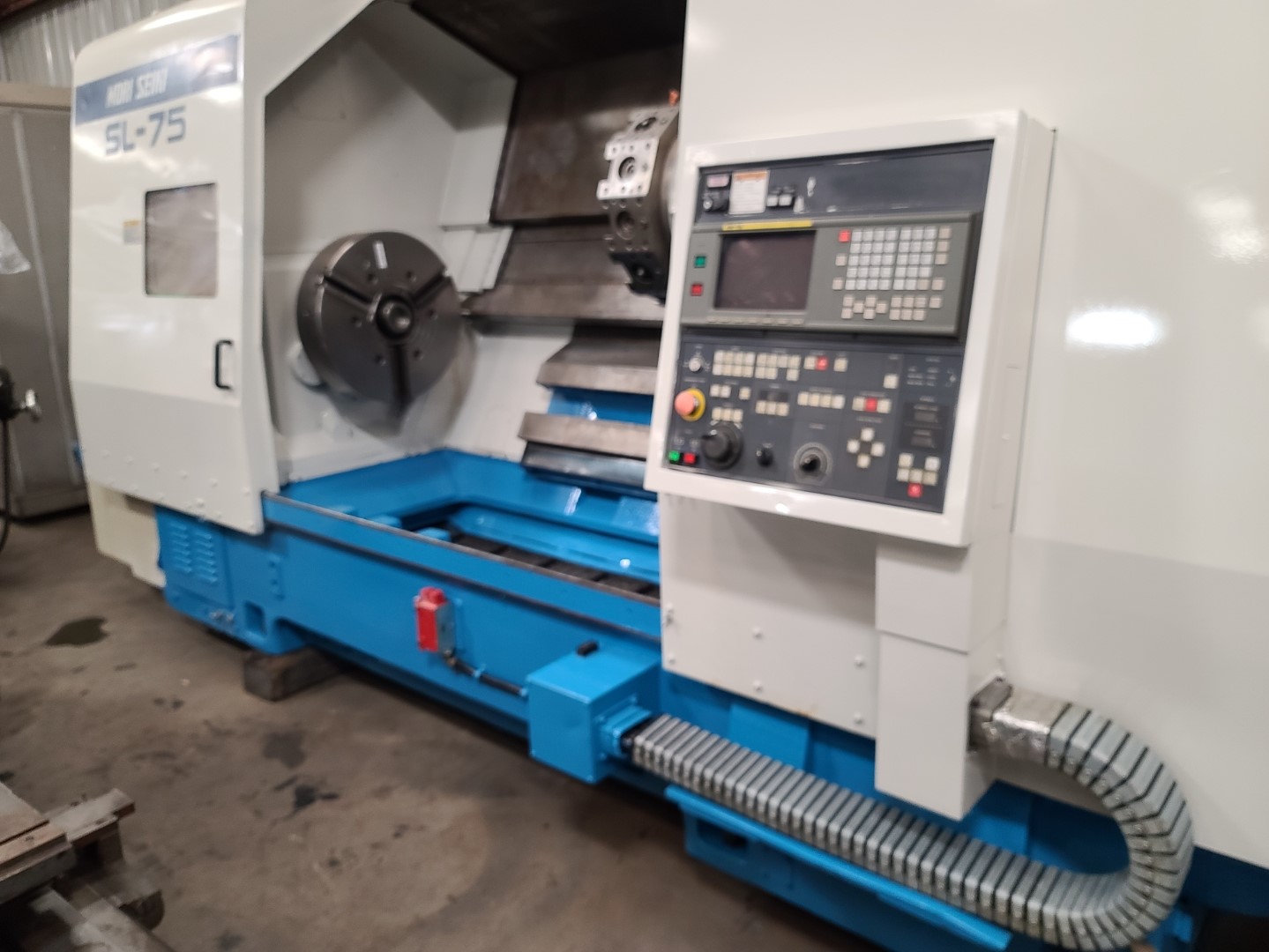

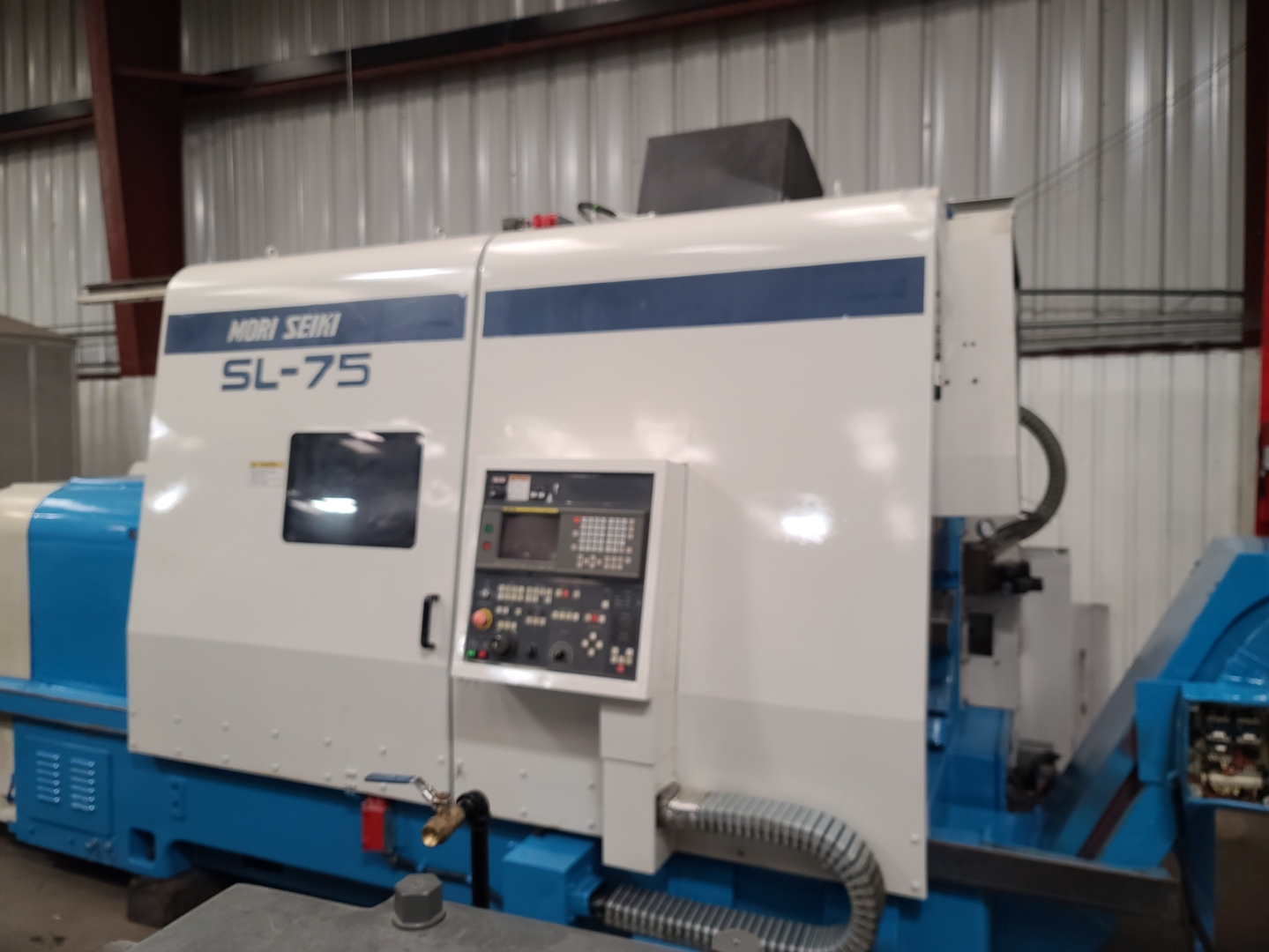

MORI SEIKI SL-75A CNC LATHE
Specifications:
Model
SL-7

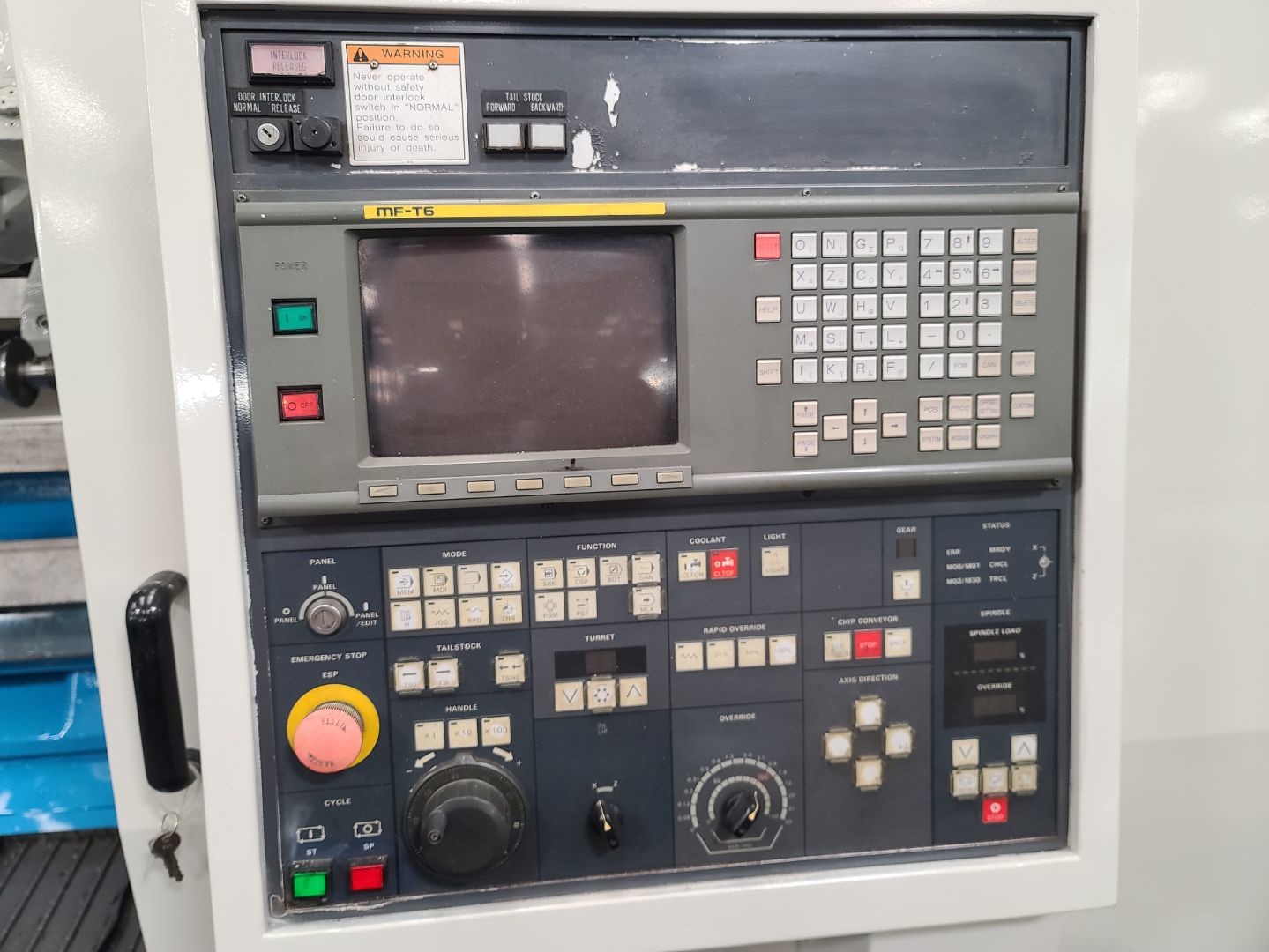

CNC control
Mori MF-T6/Fanuc
Swing over bed 35”
Swing over carriage
22”
Center distance
68”
Chuck
B24” Kitagawa 3-jaw hydraulic
Max machining diameter 30”
Max longitudinal travel 61”
Max cross travel
15”
Spindle center height 47”
Spindle nose
A-1-11
Spindle speed
10-1800 rpm
Hole thru spindle 4.5”
Tail stock quill 5.90”
Tail stock taper
M.T. 5

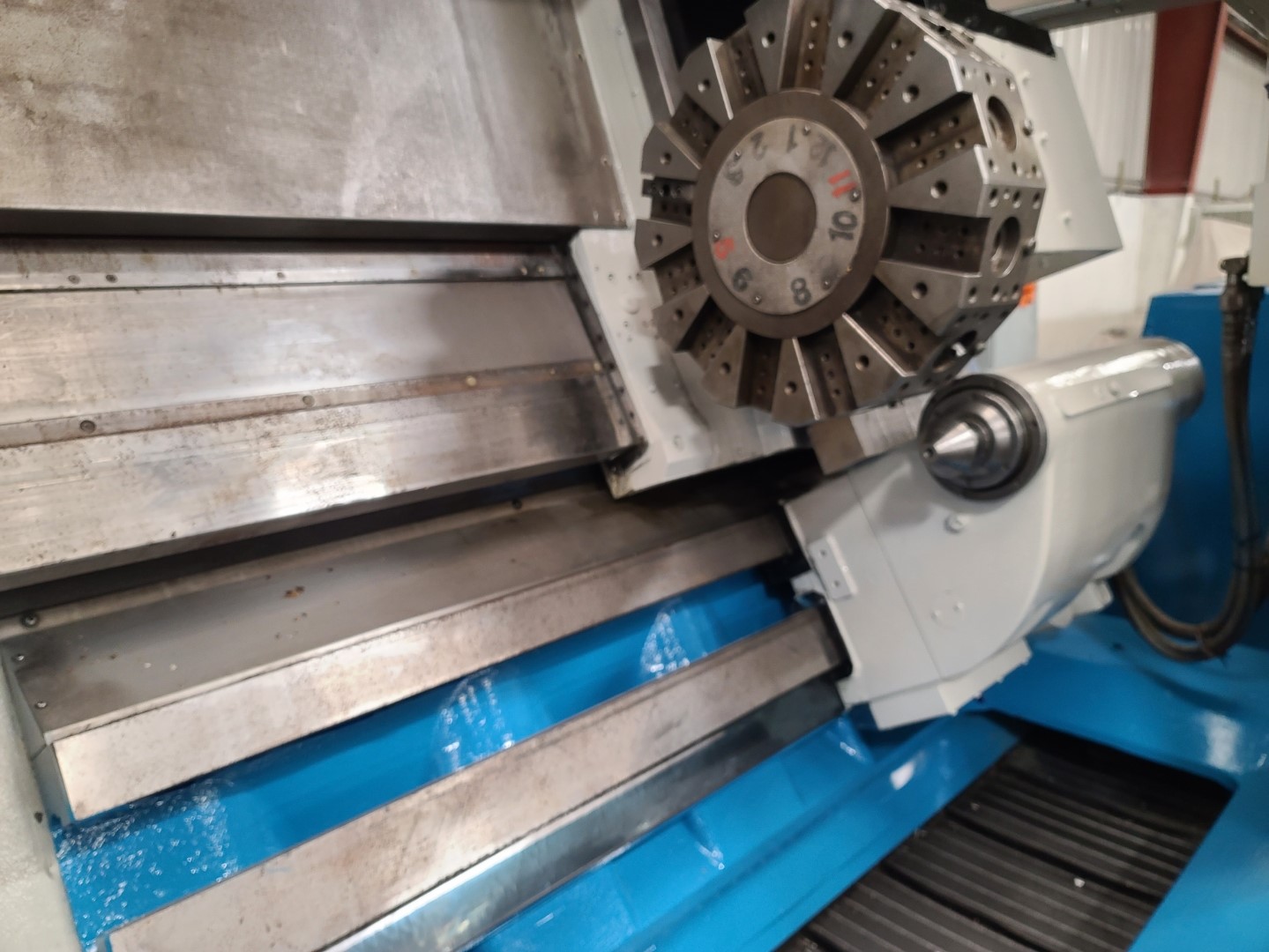

Turret stations 12 stations
Main motor
DC 30/37KW
Chip conveyor
Yes
Weight
30,000 lbs.
Dimensions 200” Long x 107” High x 85”
wide
Price: $ 89,500. FOB
Houston, TX. Subject to Prior Sale.
