MORI SEIKI SL-25B5 CNC LATHE
Specifications:
Model SL-25B5

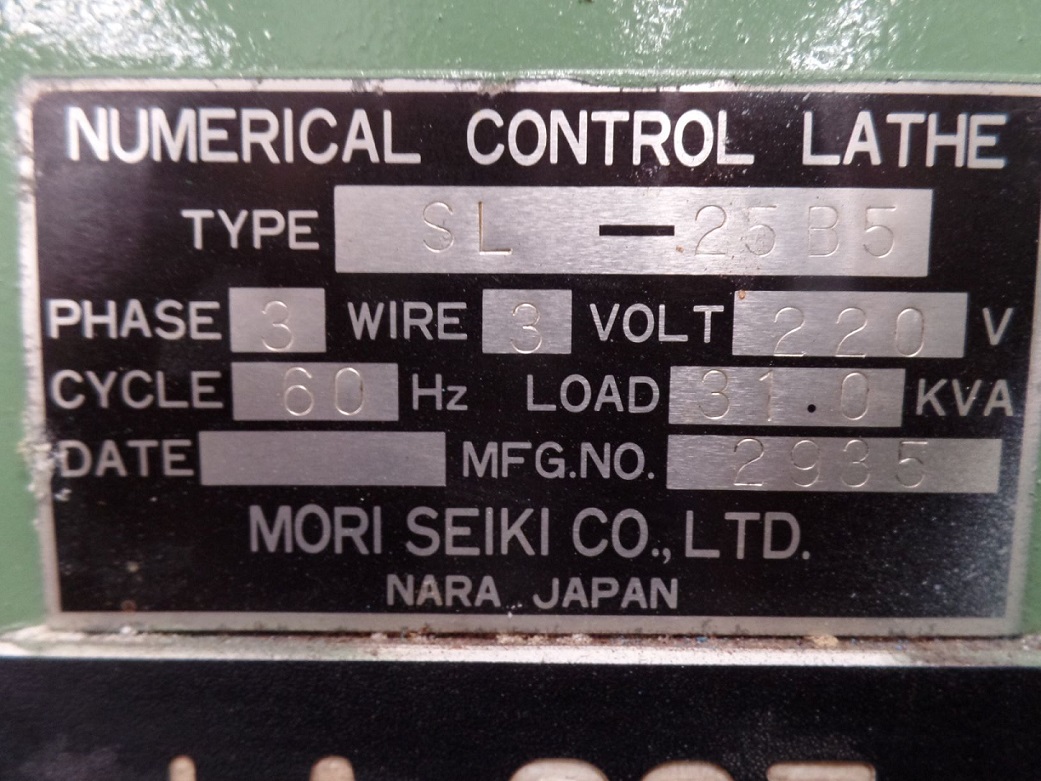

Serial number 2935

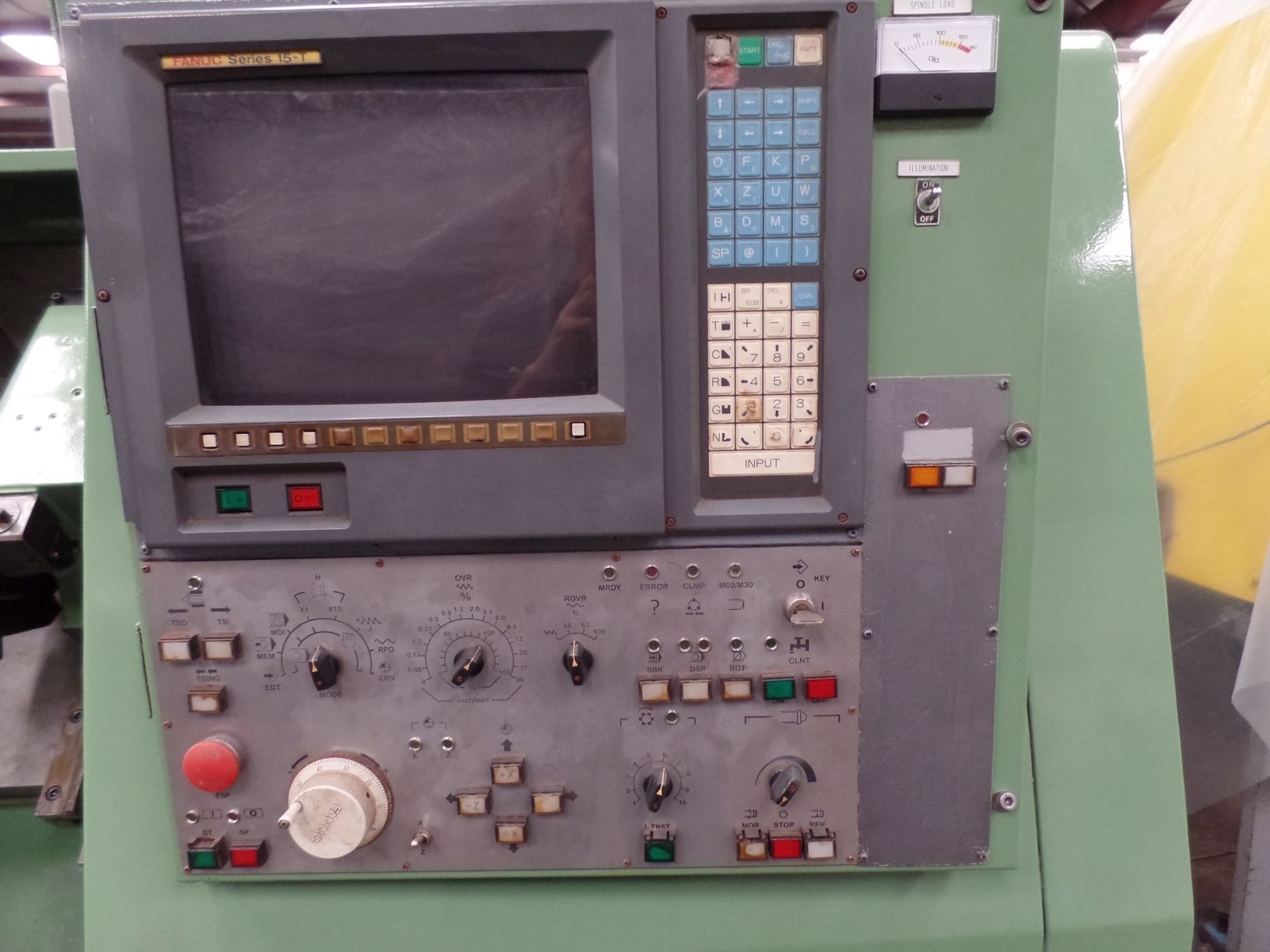

CNC Control Fanuc F-15T
Spindle bore 3.15”

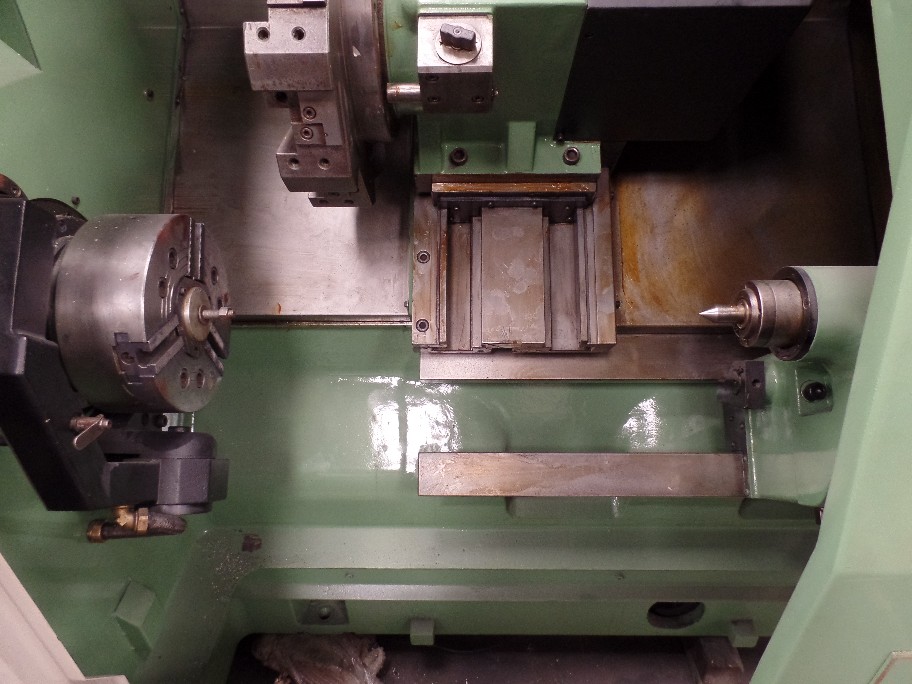

Chuck B-210 Kitagawa, 10” 3-jaw hydraulic
Spindle nose A-2-6
Spindle speeds 35-3,500 rpm.
Bar capacity 2.75”
Axis travel (X/Z) 6.3”/23.2”
Max. swing over bed 20.5”/13.8”
Max. machining length 21”
Turret stations 10
Turret index time 0.7 single station, 1.5 sec full rotation
Tailstock taper MT No. 3
Main motor 20/15 hp.
Chip conveyor Yes
Manuals Some
Dimensions L x W x H 113” x 64” x 75”
Machine weight 9,300 lbs.
Price: $ 24,500. FOB Houston, TX. Subject to Prior Sale.
