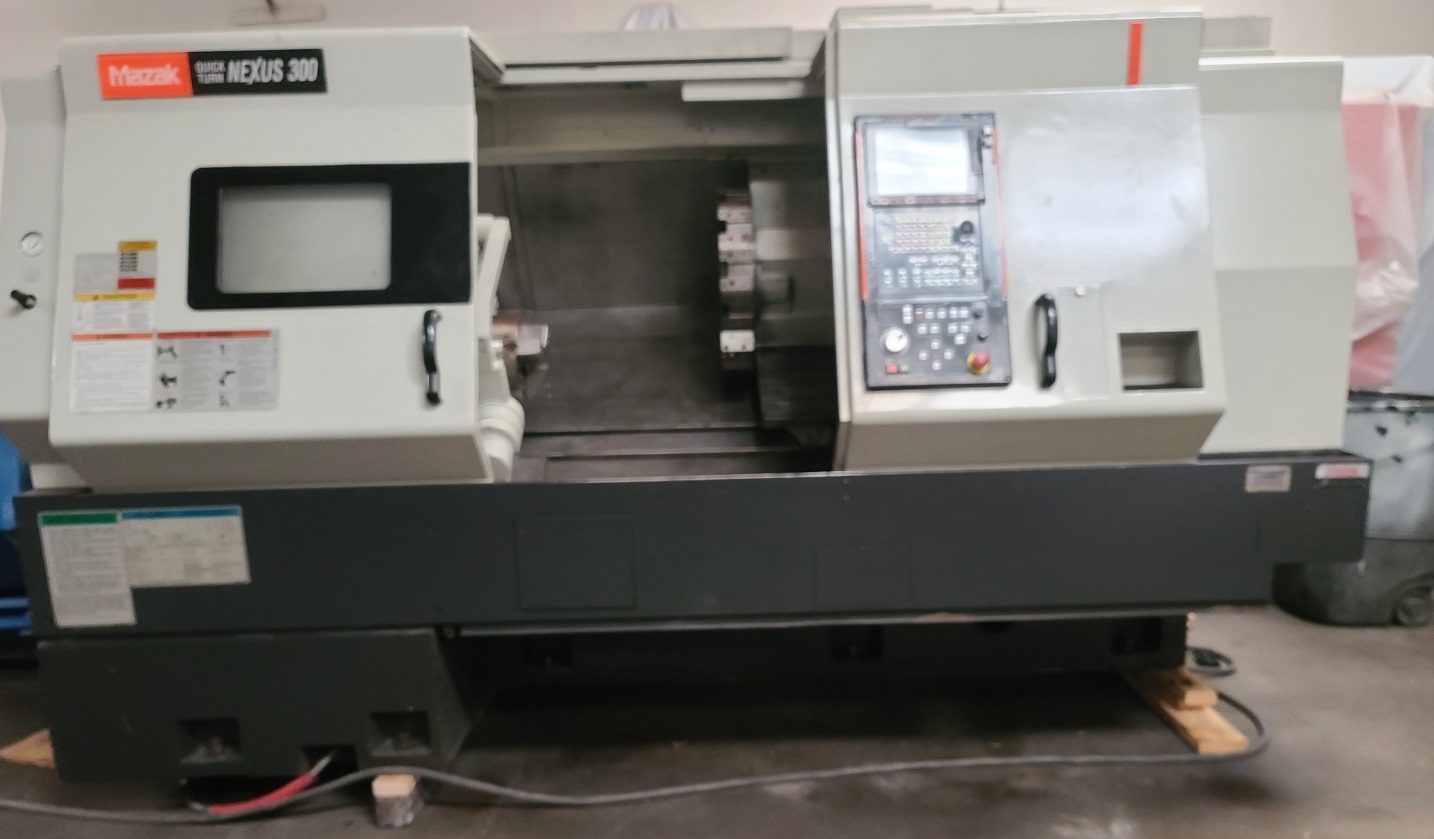

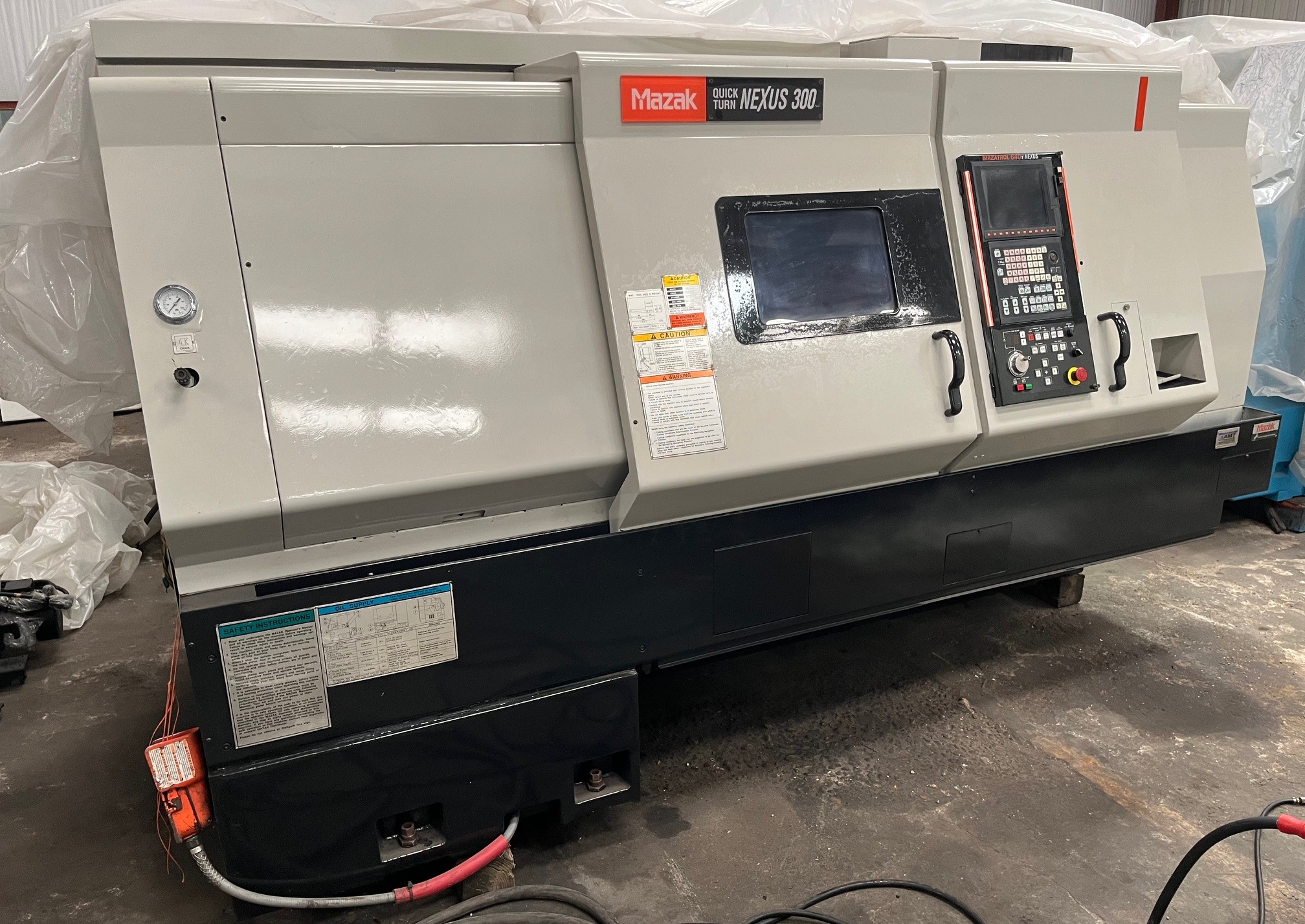

MAZAK QTN 300 CNC LATHE
Specifications:
Model
QTN-300
Serial number
186641
Year of manufacture
09/2006

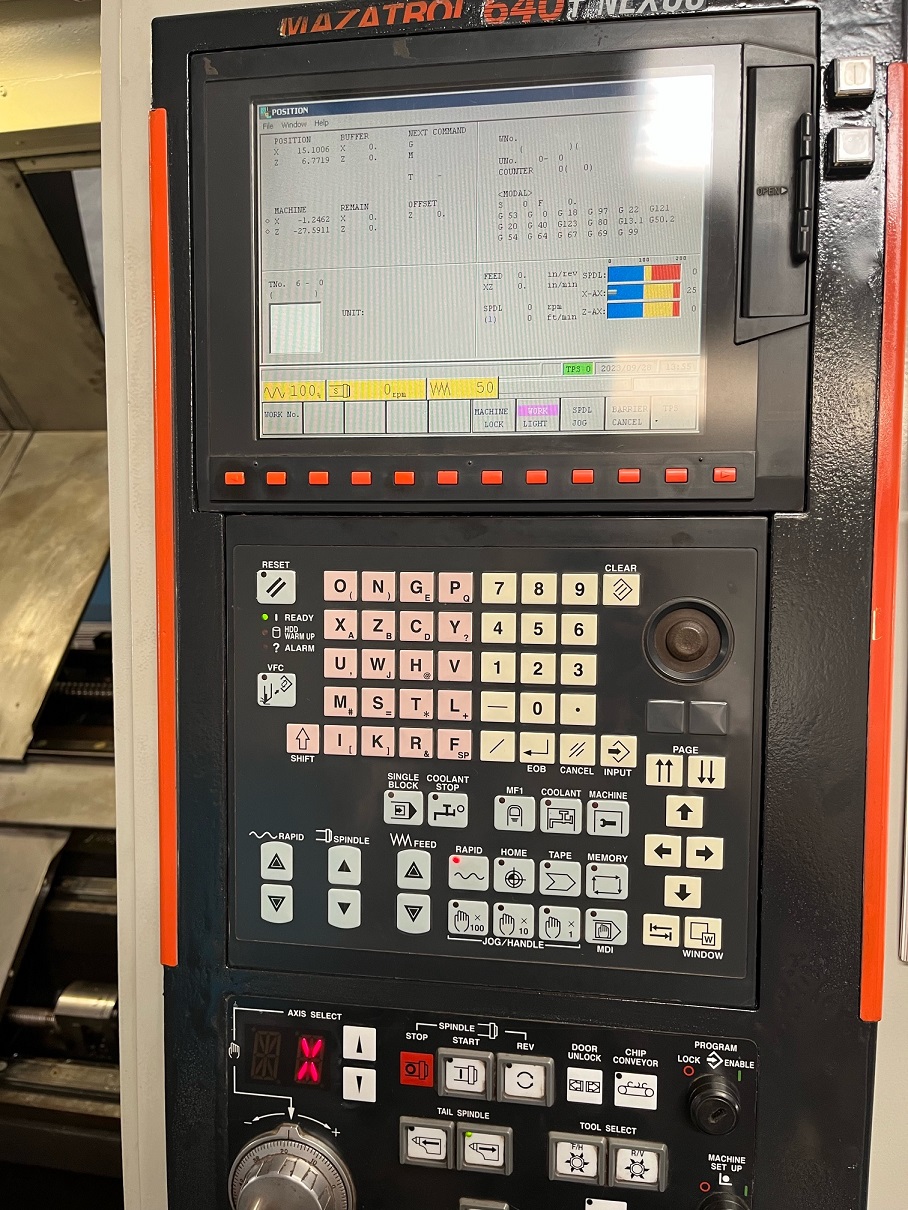

CNC control
Mazatrol 640T Nexus
Tool eye
Yes
Swing over bed
23”
Max turning diameter
12”
Max machining length
48”
Spindle speed
3,300 rpm
Spindle motor
35 hp.
Chuck
10” Kitagawa B-210 3-jaw hydraulic
Spindle bore
2.7”

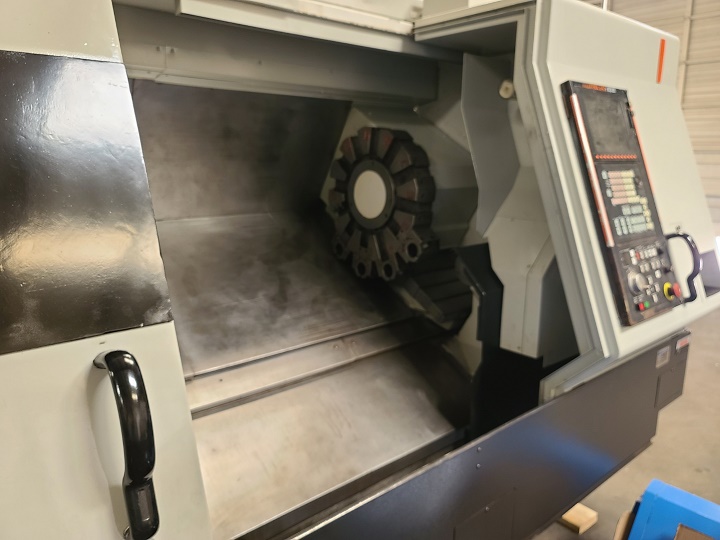

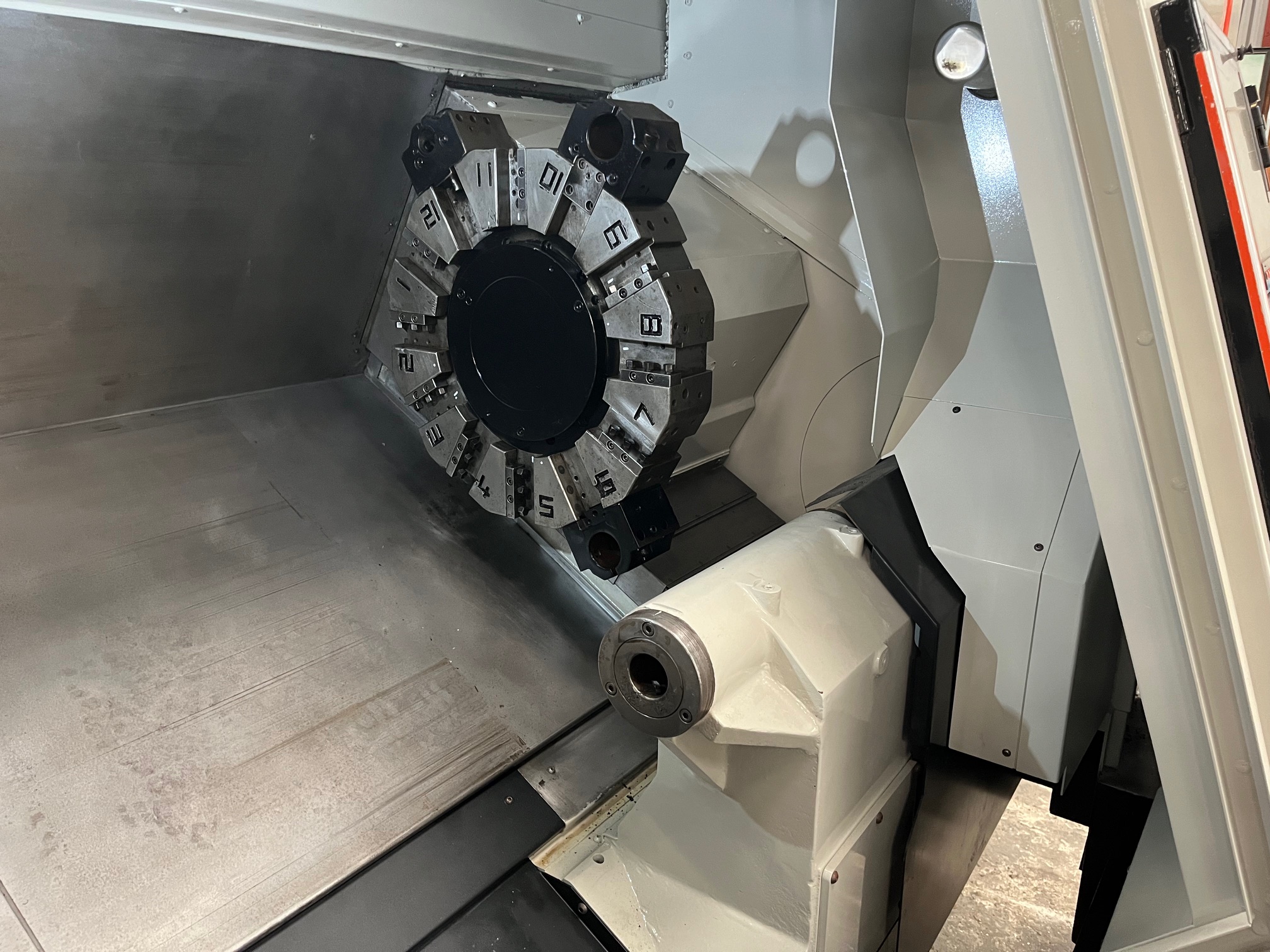

Turret 12 stations
Tailstock Yes, programmable quill
Machine weight
14,060 lbs.
Machine dimensions
10’ 6” W x 6’ 10” L x 7’ H
Chip conveyor dimensions 12’ 6” W x 5’ L x 6’ H
Price: $ 69,500.
FOB Houston, TX. Subject to Prior Sale
New cost 2023 with chip conveyor and chuck: $ 153,000.
