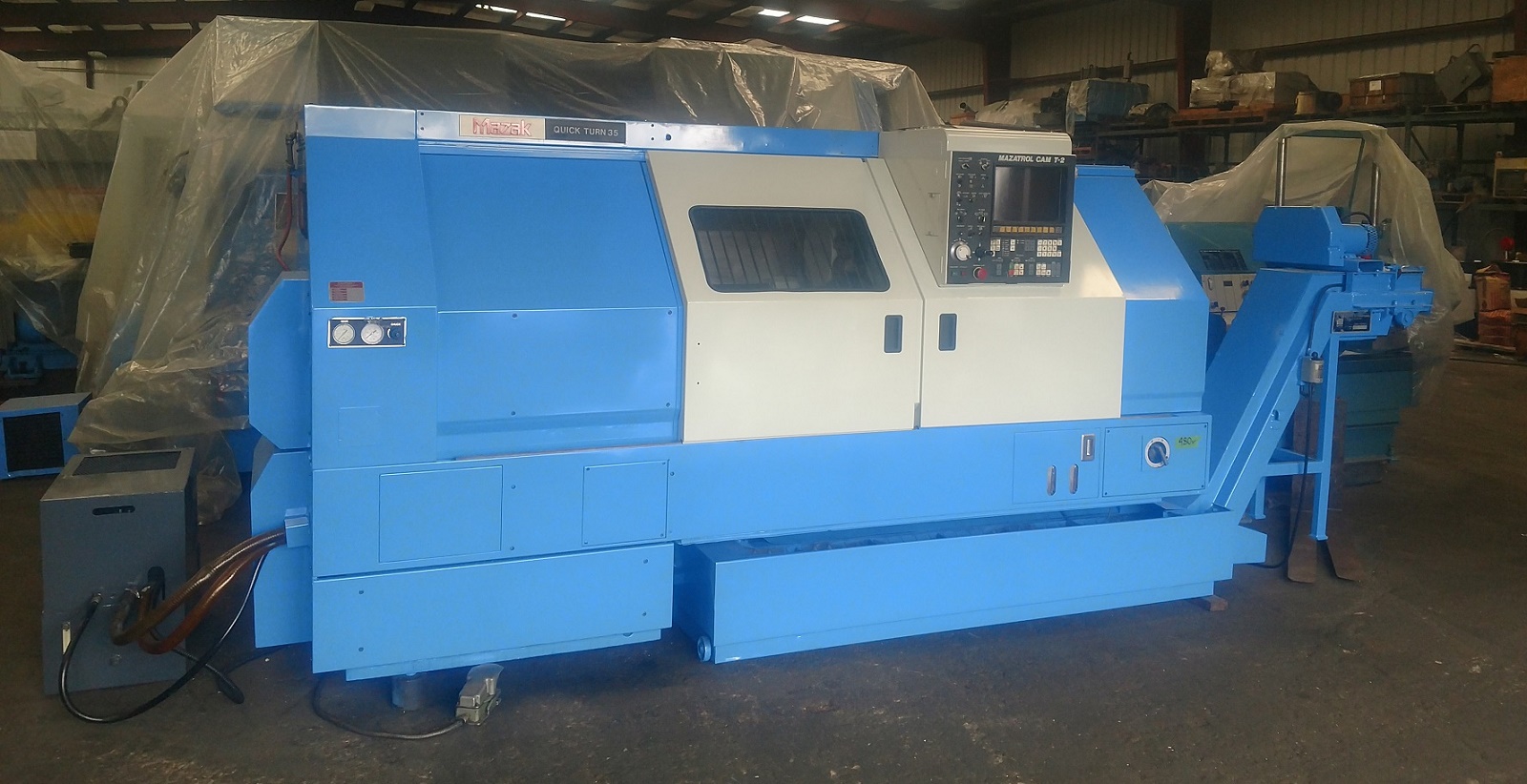

MAZAK QT-35 CNC LATHE
Specifications:

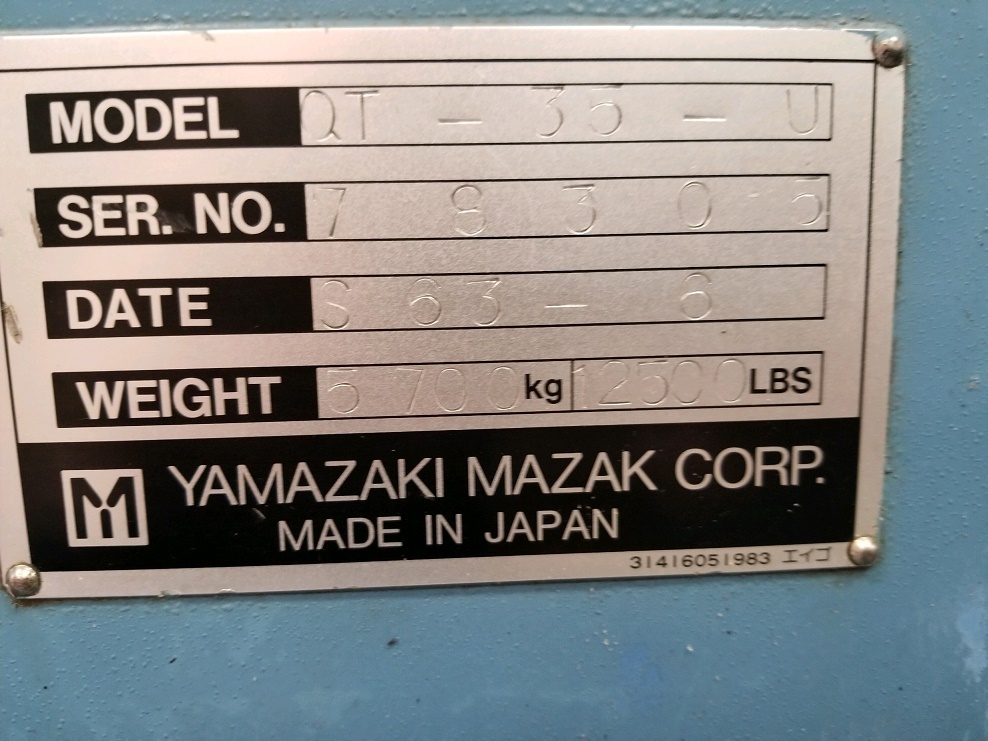

Model
QT-35U
Serial number
78305
Date of mfg.
S-63-6

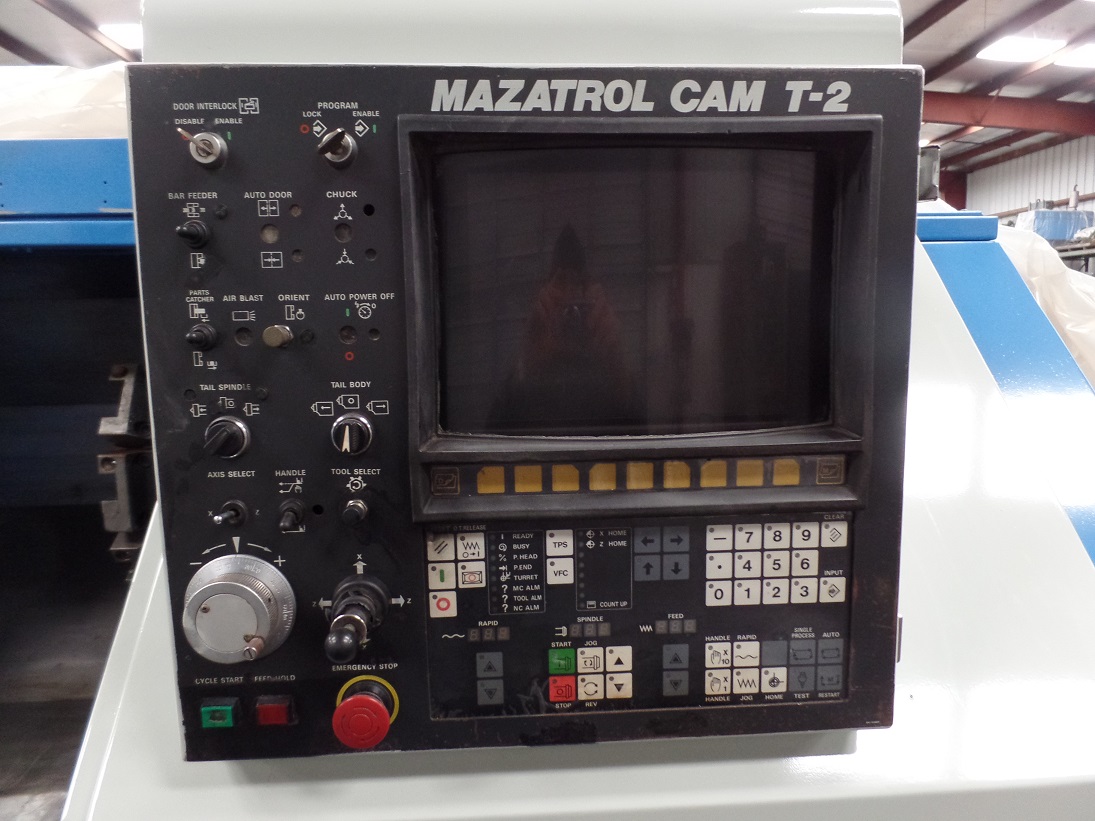

CNC control
Mazatrol Cam T-2
Max. swing
20”
Max. swing over carriage
15.75”
Standard chuck
12” standard, none at preset
We have air chucks which will fit this
lathe
Travel, X & Z
11” & 40”
Max. part between centers
40”
Feed range 1-709 ipm
Rapid traverse rate
472 ipm.

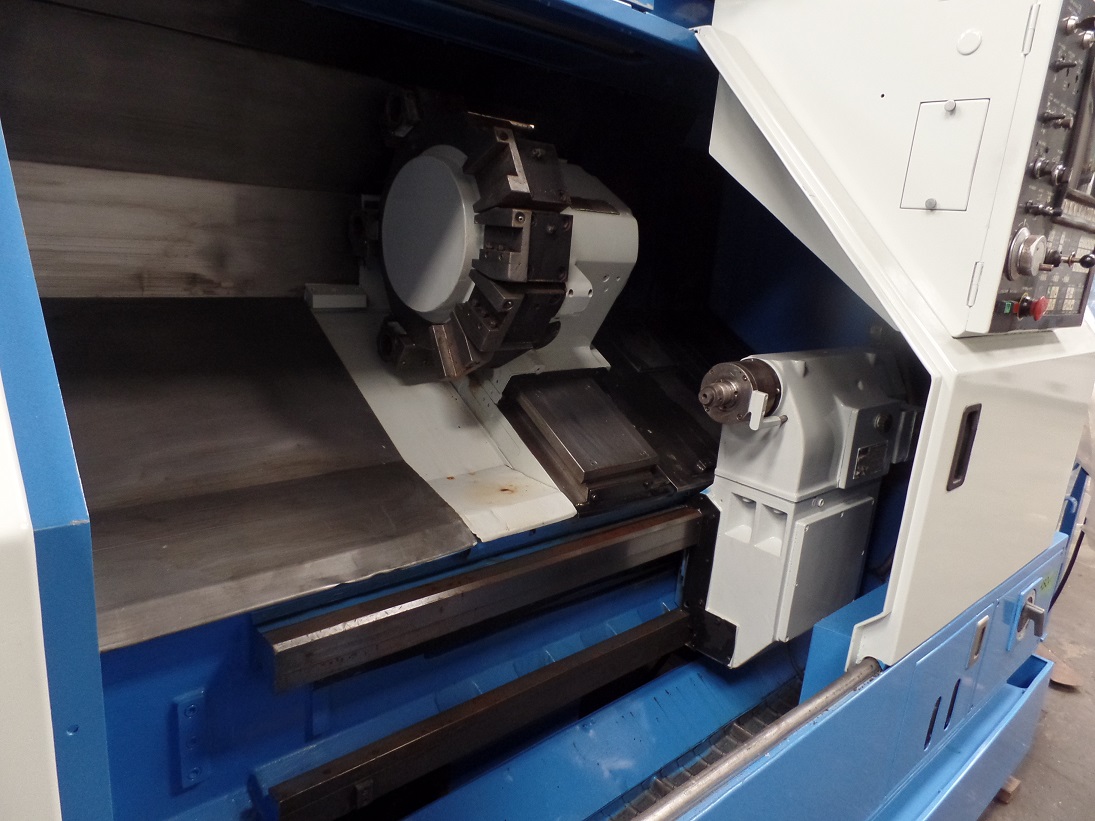

Turret stations
24 stations

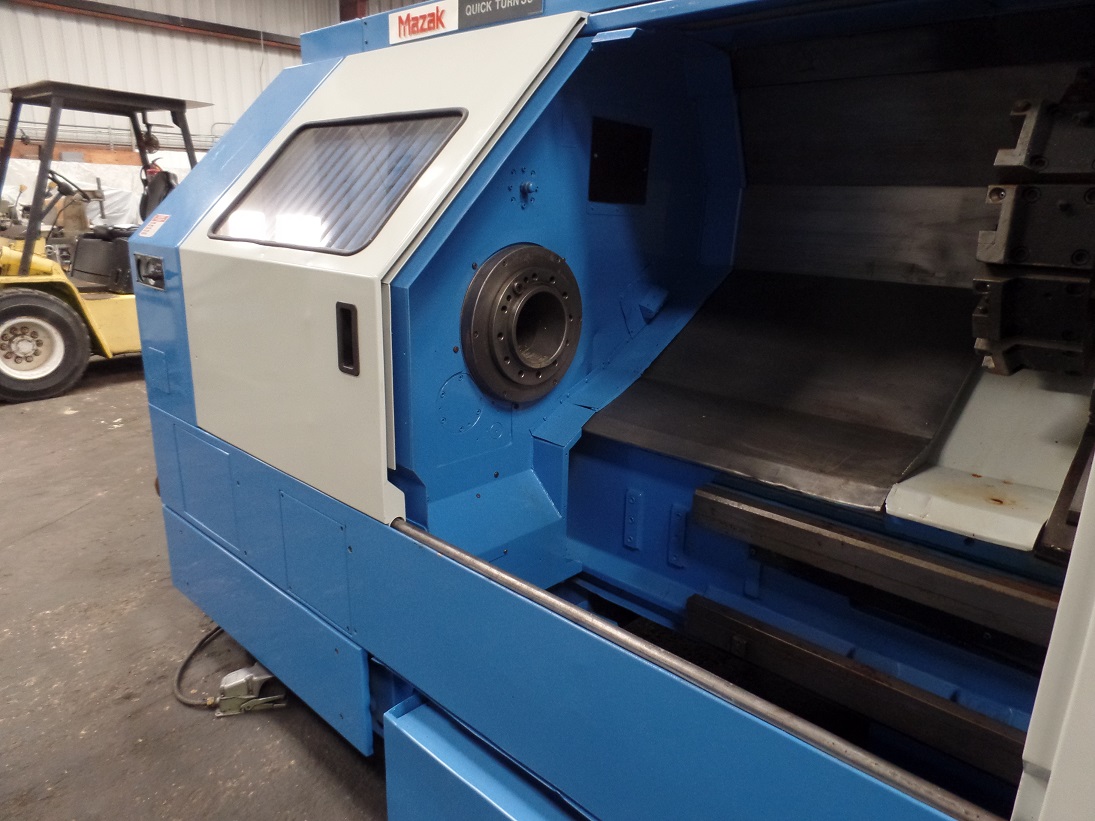

Spindle bore
6.5”
Spindle nose
A-11
Spindle speed range
3 ranges, 10-300, 300-750, 750-3000 rpm.
Main motor
30 hp
Tailstock
Yes

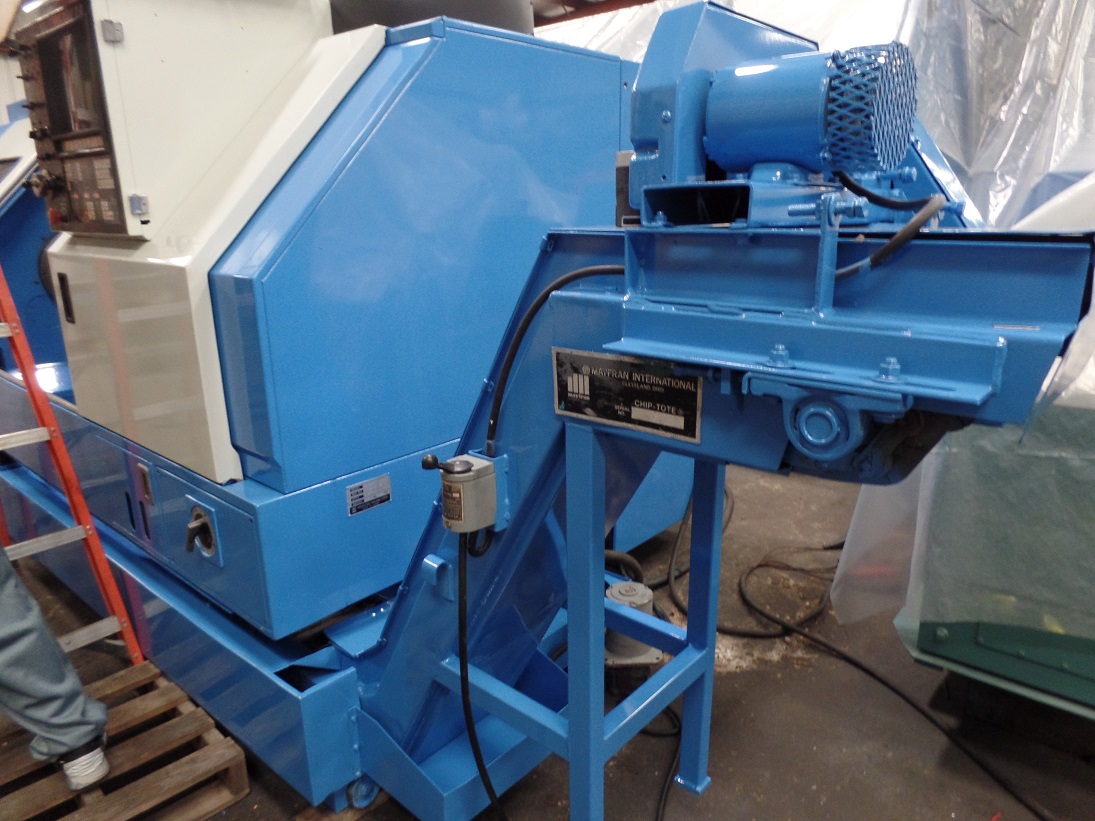

Chip conveyor
Yes
Voltage
440/3/60 at present
Dimensions
140” x 85” x 82”
Machine weight
13,000 lbs.
Price: $ 24,500. FOB Houston, TX.
Comments: We have multiple air chucks or hydraulic chucks that will fit this lathe.
One could be installed at extra cost.
Video link: https://youtu.be/lBH7X8x-E9Y
