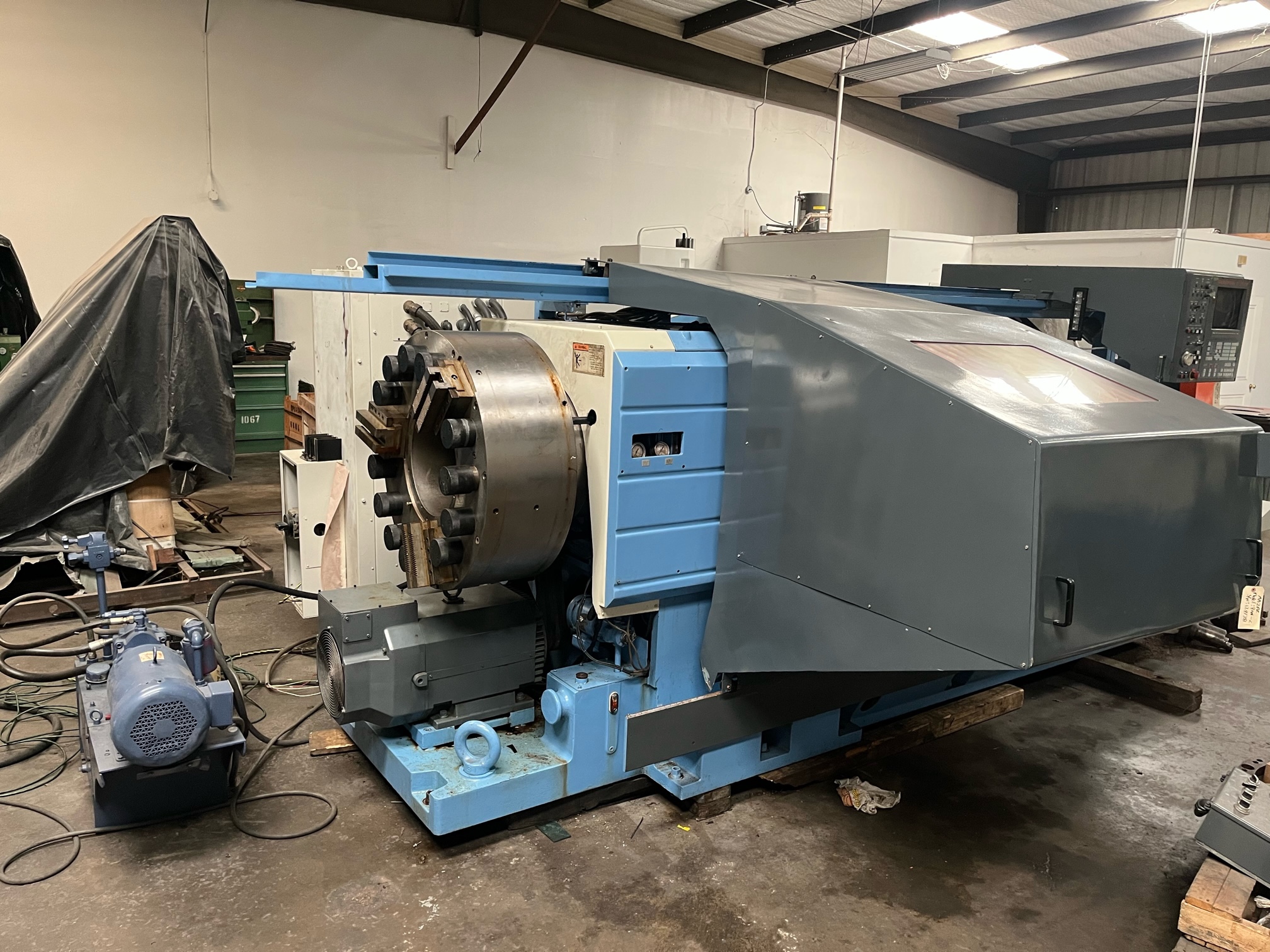

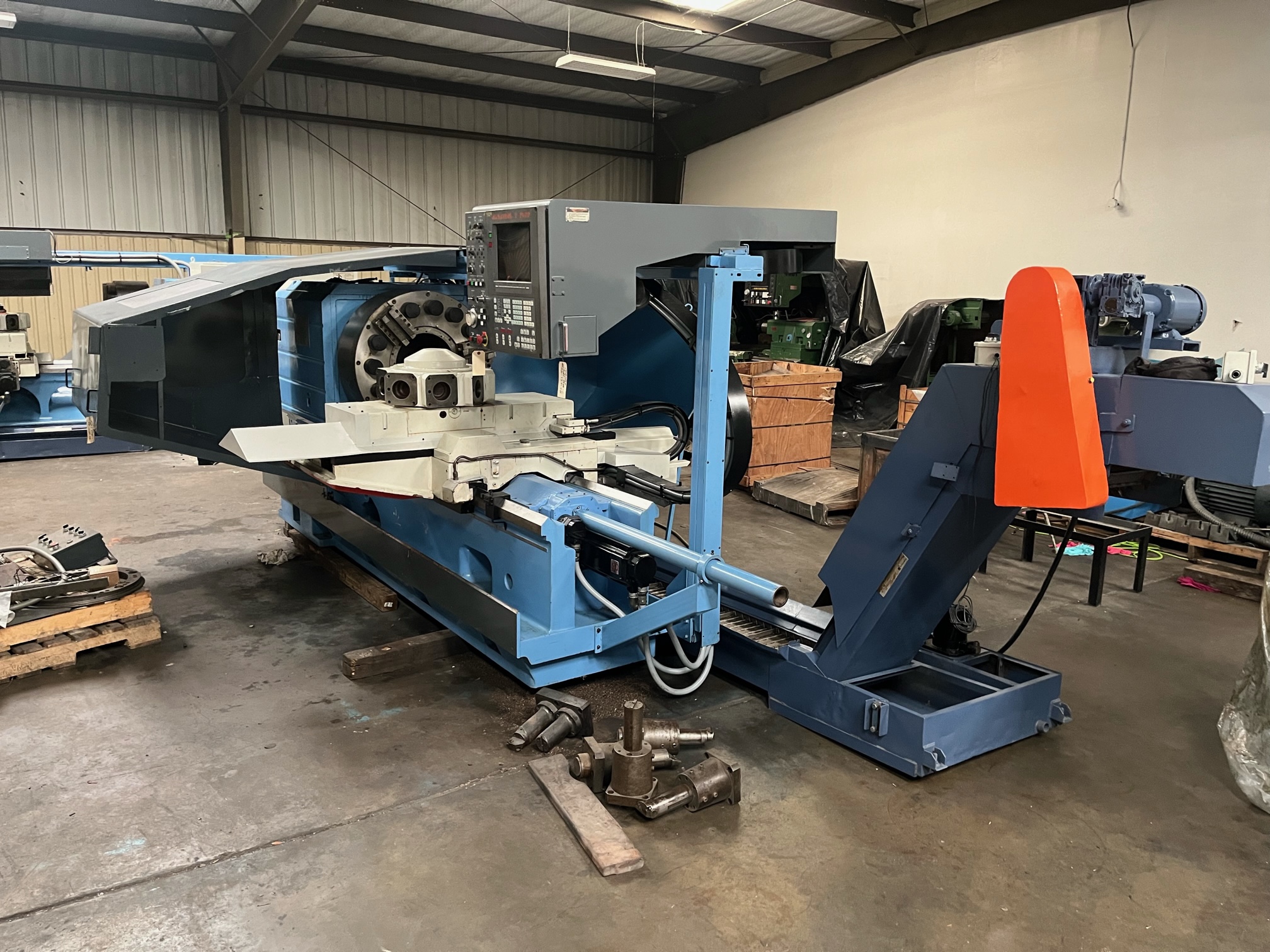

MAZAK PMC CNC LATHE Oil Country Pipe threader
MAZAK
PMC CNC LATHE
Specifications:
Model
PMC (Power Master Chucker)
CNC
Control

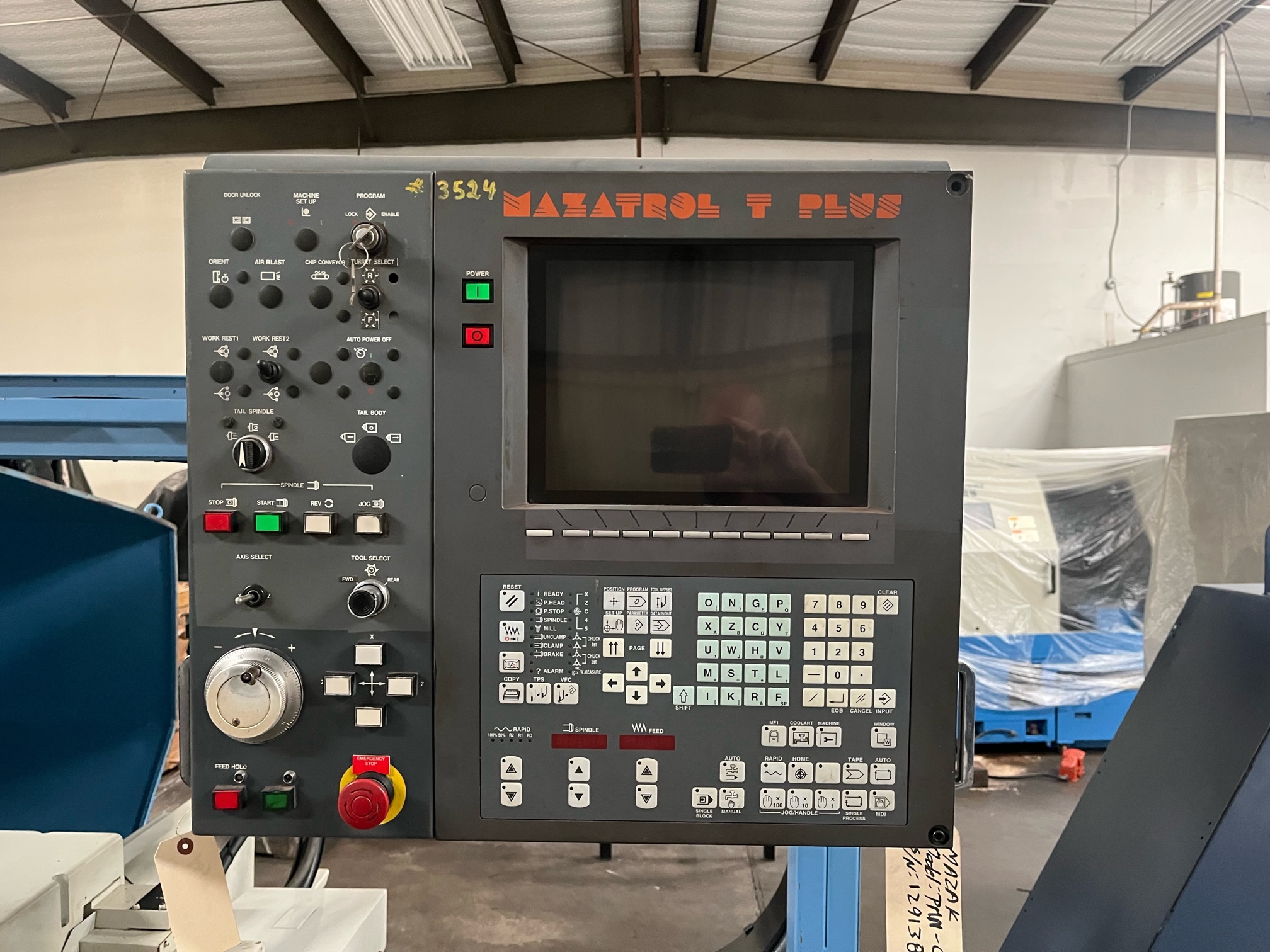

Mazatrol T Plus
Serial
number
129138
Serial
number 129136
Year of
manufacture 2000
Swing
over bed
42”
Turning
diameter
39”
Swing
over gap
48”
Width
of gap
20”
X-axis
travel
25”
Z-axis
travel
45”
Spindle
bore
14”

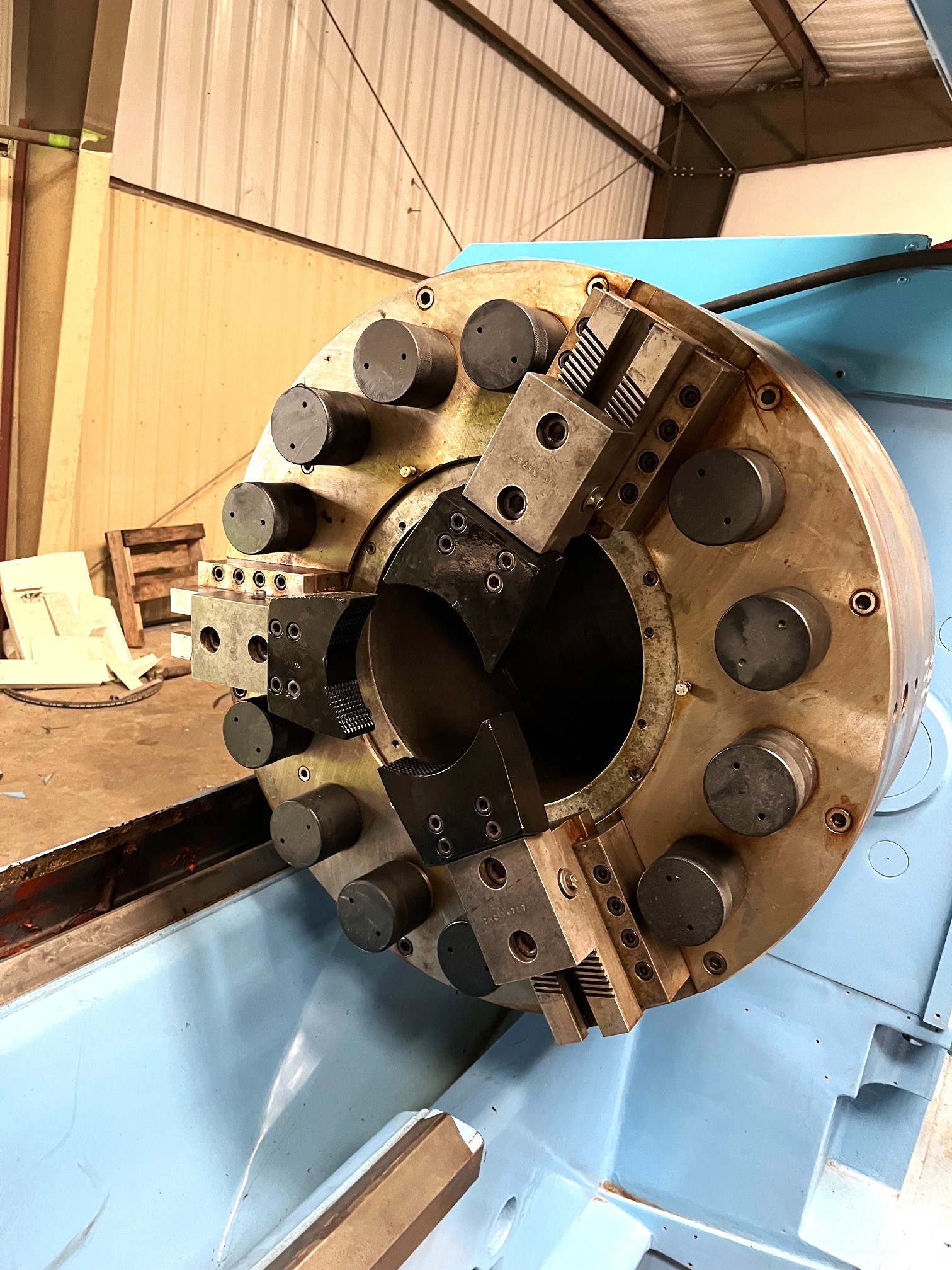

Chucks
Front
Woodworth THC 34000 (14” extended stroke)
Rear
Woodworth THC 34000 (14” extended stroke)
Spindle
speed
0-750 rpm

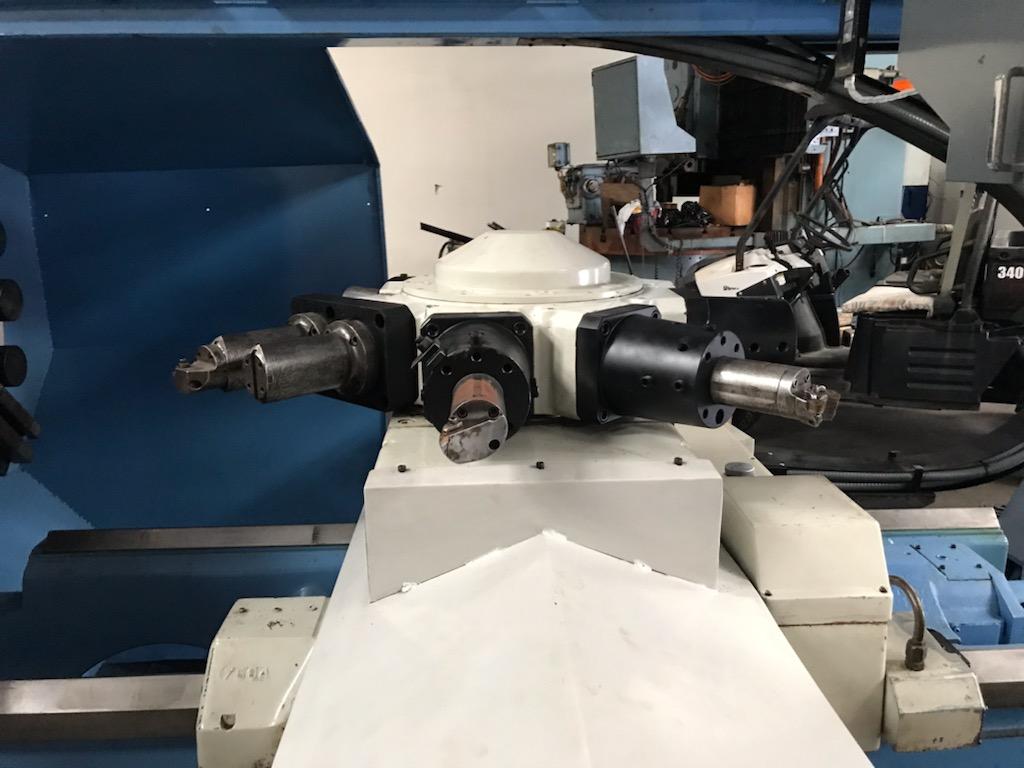

Turret
stations
8 stations
Tooling
Yes
Chip
conveyor
Yes
Main
motor
60 hp. 3/60/220v.
Machine
weight 22,800 lbs.
Price:
$ 550,000. PAIR FOB Houston, TX.
Subject to Prior Sale.
Delivery: 30-60 days. Currently working on them when we aren’t
doing anything else.
Comments: These lathes were running U.S. Steel Premium when
purchased. Since then we have
Completely disassembled them and gone thru them thoroughly.
New seals if leaking, new O-rings
As
required. New wiring connections and wire as required. New
Turcite as required.
Woodworth chucks: New springs. New bearings as required.
Extensively reconditioned.
New
cost today: Mazak PMC $ 442,000 + $ 90K for 14” bore + $ 12K
for chip conveyor + Freight.
Chucks:
$ 98,000 each plus installation and adapter plate. +
tooling, $ 10-15,000.
Total cost for
ONE
lathe with two chucks and tooling: $ 775,000
approximately.
