Mazak Slant Turn 50 CNC Lathe

SPECIFICATIONS:

Model Mazak Slant Turn 50NX-2000U

CNC Control Mazatrol T-Plus

Serial number/YOM 125859/1996

Max. Swing Over Bed 31.69"

Max. Swing Over Carriage 22.05"

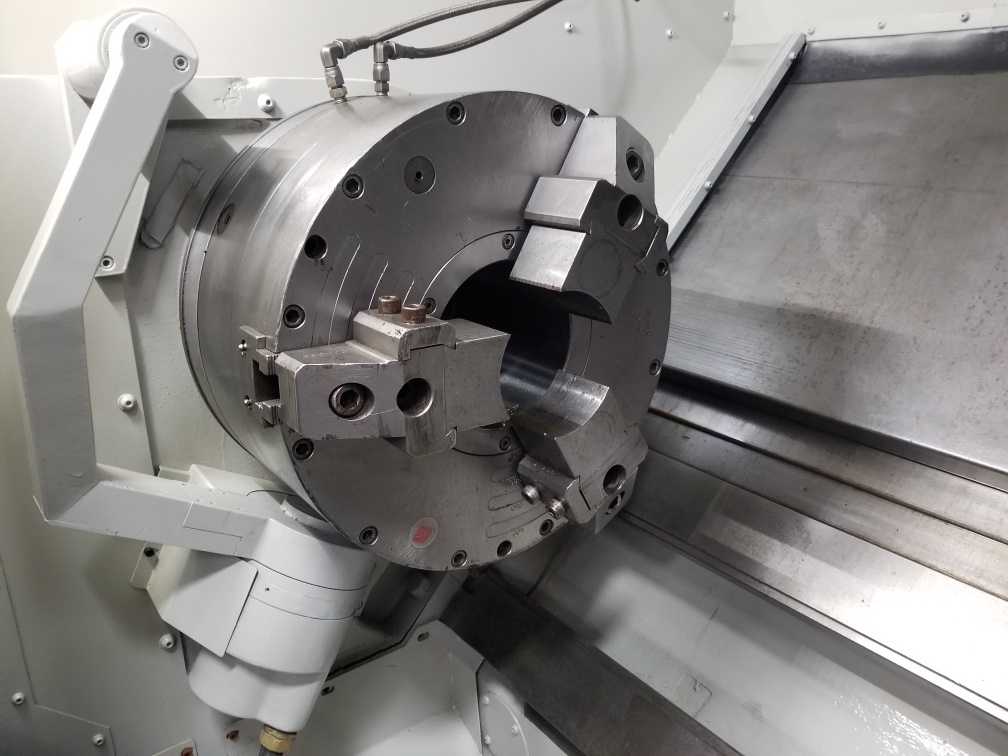

Chuck SMW EP 460- 6.5” bore

Max. Cutting Diameter 25.98"

Distance Between Centers 80”

Tailstock Diameter Taper 5.9"

Max. Cutting Load 1763.68 lbs.

Spindle Speeds, 3 Ranges 2-750 rpm

Spindle Bore 6.5”

Spindle Drive Motor 50 hp.

Travel X-Axis 22.64"

Travel Z-Axis 80"

Rapid Traverse X-Axis 472.4 IPM

Rapid Traverse Z-Axis 551.18 IPM

Coolant Yes

Chip conveyor Yes

Approx. Weight 26,000 lbs. apx.

Dimensions: Main body: 8’ 4” W x 19’ L x 9’ H. Chip conveyor: 22/42” W x 16’ L x 6’ H.

Equipped with: Tailstock, Chip Conveyor. Coolant, Way Lube, Hydraulic System.

Price: $ 79,500. FOB Houston, TX. Subject to prior sale.

Comments: The lathe is in good working condition with everything operating.

MAZAK ST50N/2000U CNC TURNING CENTER
