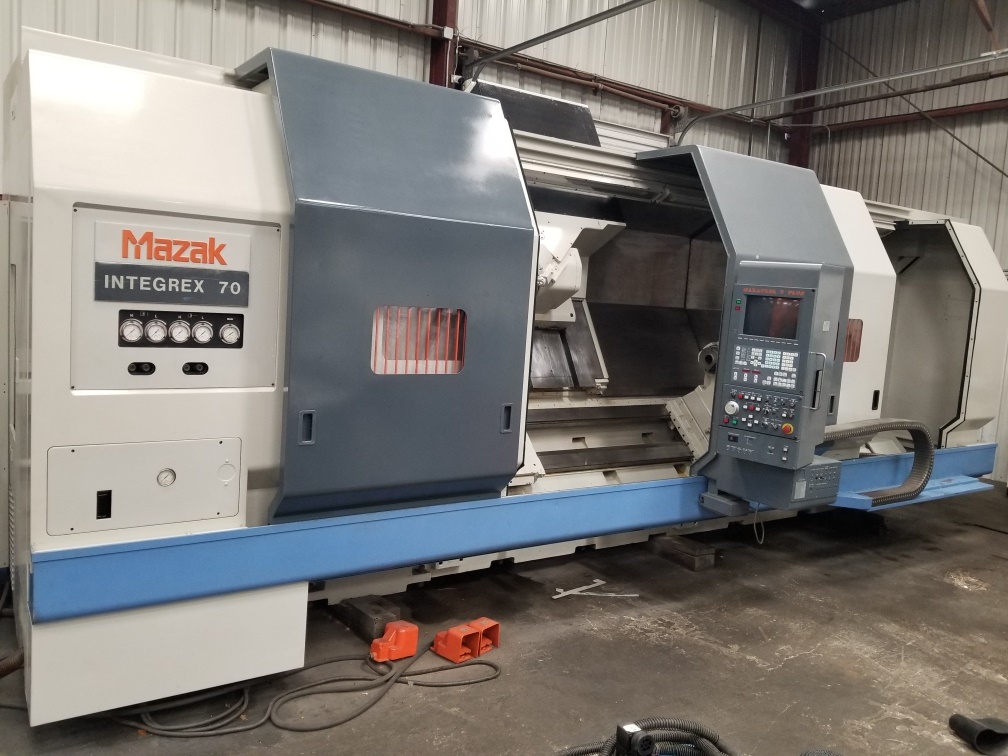

MAZAK
INTEGREX 70 CNC LATHE
Specifications:
CNC
Control

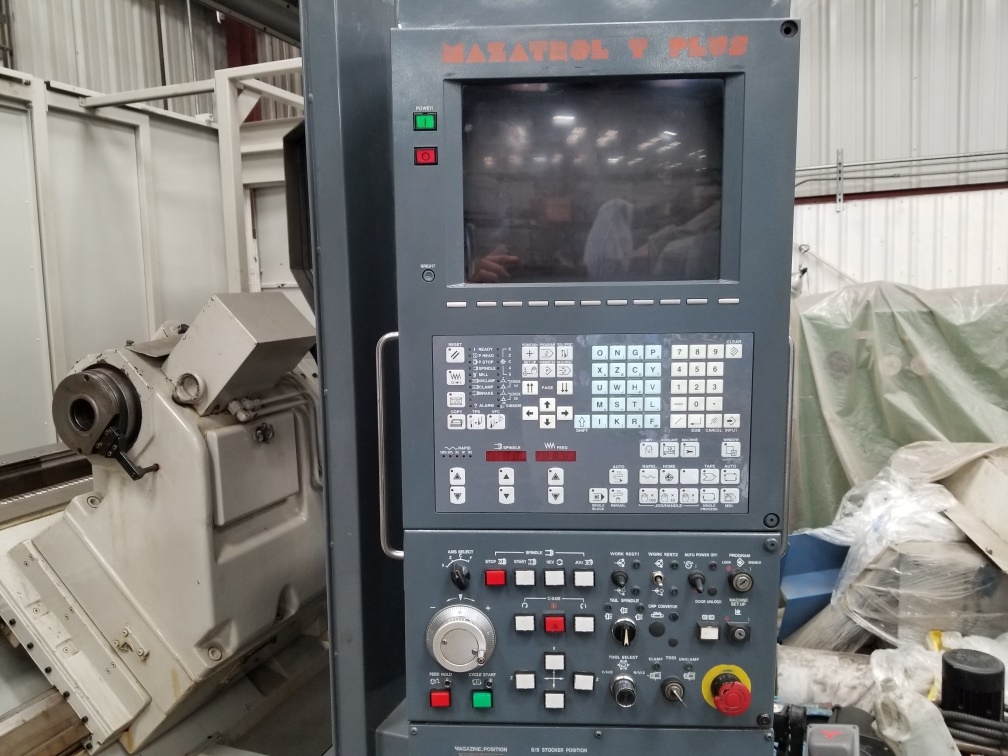

Mazatrol T-Plus Y-axis control
Serial
Number/YOM
162134826/1998
Chuck
24” 4-Jaw Chuck
Maximum
Swing Over Bed
36"
Maximum
Swing Over Cross Slide
30.3"
Maximum
Turning Diameter
32"
Maximum
Distance Between Centers
121"
Maximum
Work piece Weight- Chucked
2,200 Lbs.
Maximum
Work piece Weight- Between Centers
4,400 Lbs.
Spindle
Speeds
0 - 750 RPM
Spindle
Bore
6.5"
X-Axis
Travel
27.5"
Z-Axis
Travel
121"
Tool
Stations
30 ATC
Rapid
Traverse Rate:
X- Y-Z Axis
472, 315,590 IPM
Rotary
Tool Spindle Speed
18 - 3,000 RPM
Rotary
Tool Motor
15 HP
Rigid
Tapping
Yes
Coolant
Yes, thru milling
head
Chip
Conveyor
Yes
Spindle
Motor
60 HP
Machine
Weight
68,000 lbs.
Manuals
Yes
Dimensions, Lathe Body
27’ 6” L-R, x 10’ 7” F-B x 9’ H
Dimensions, Chip Conveyor
25’ 6” L x 4’ W x 5’ 5” H
Equipped With:

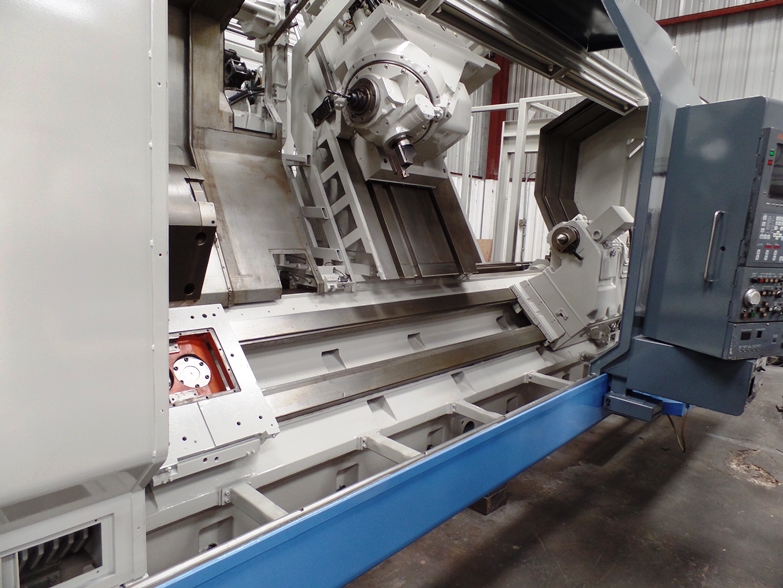

Hydraulic Tailstock, Milling, Chip Conveyor
Coolant, Splash/Chip Guards, Spindle Chiller, Tooling (16 pieces),
Overload Detection and Transformer.
Dimensions: Spindle Chiller: 30” W x 22” L x 51” H.
Hydraulic Unit: 34” W x 25” L x 29” H.
Transformer: 34” W x 30” L x 29” H.
Box-Tooling, Manuals: 28” W x 35” L x 26” H.
Price:
$ 159,500. FOB
Houston, TX. Subject to Prior Sale.
