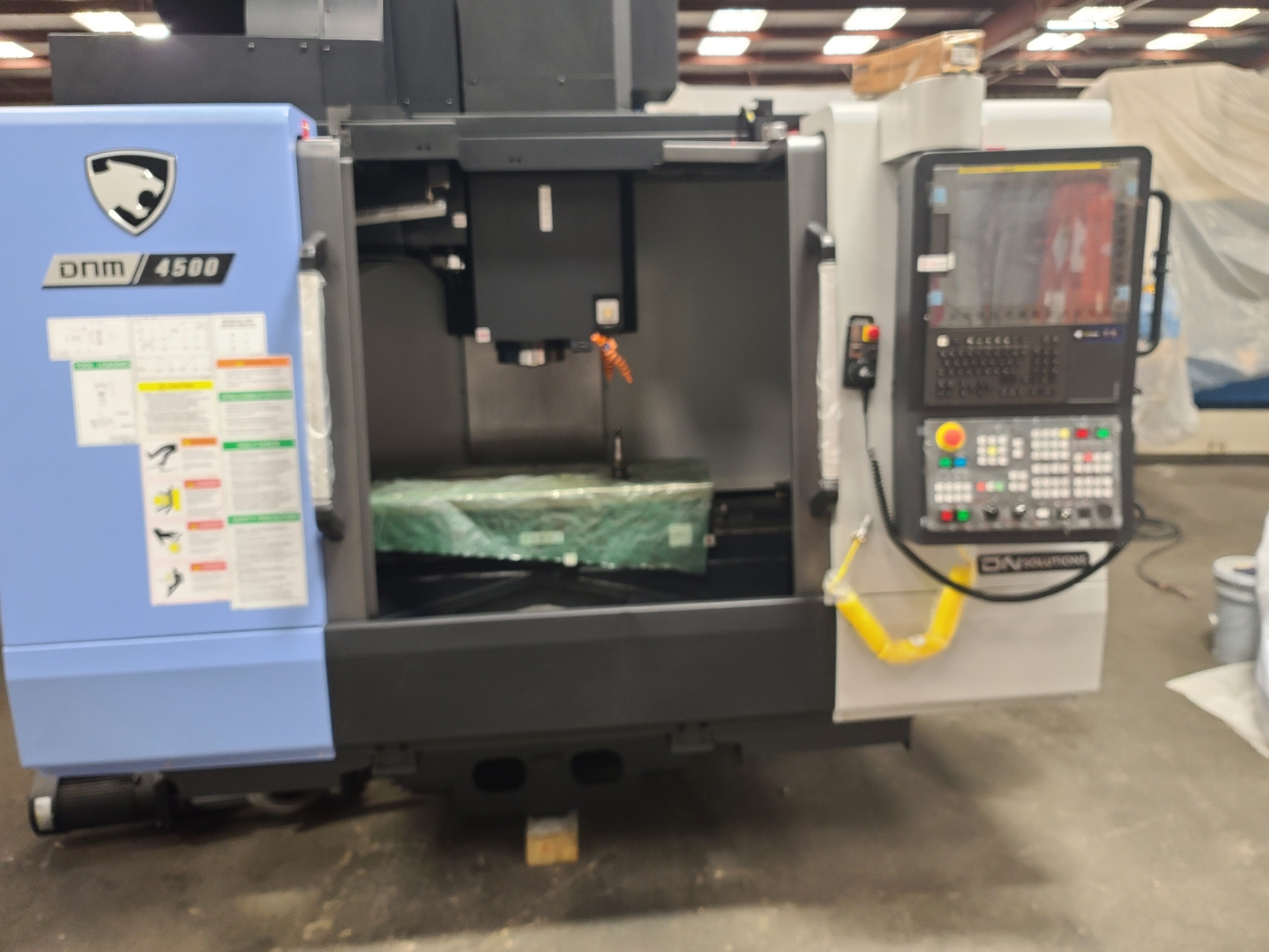

DN SOLUTIONS VERTICAL MACHINING CENTER

Specifications:

Model DNM 4500

Serial Number MV0090-003665

Year 09/2022

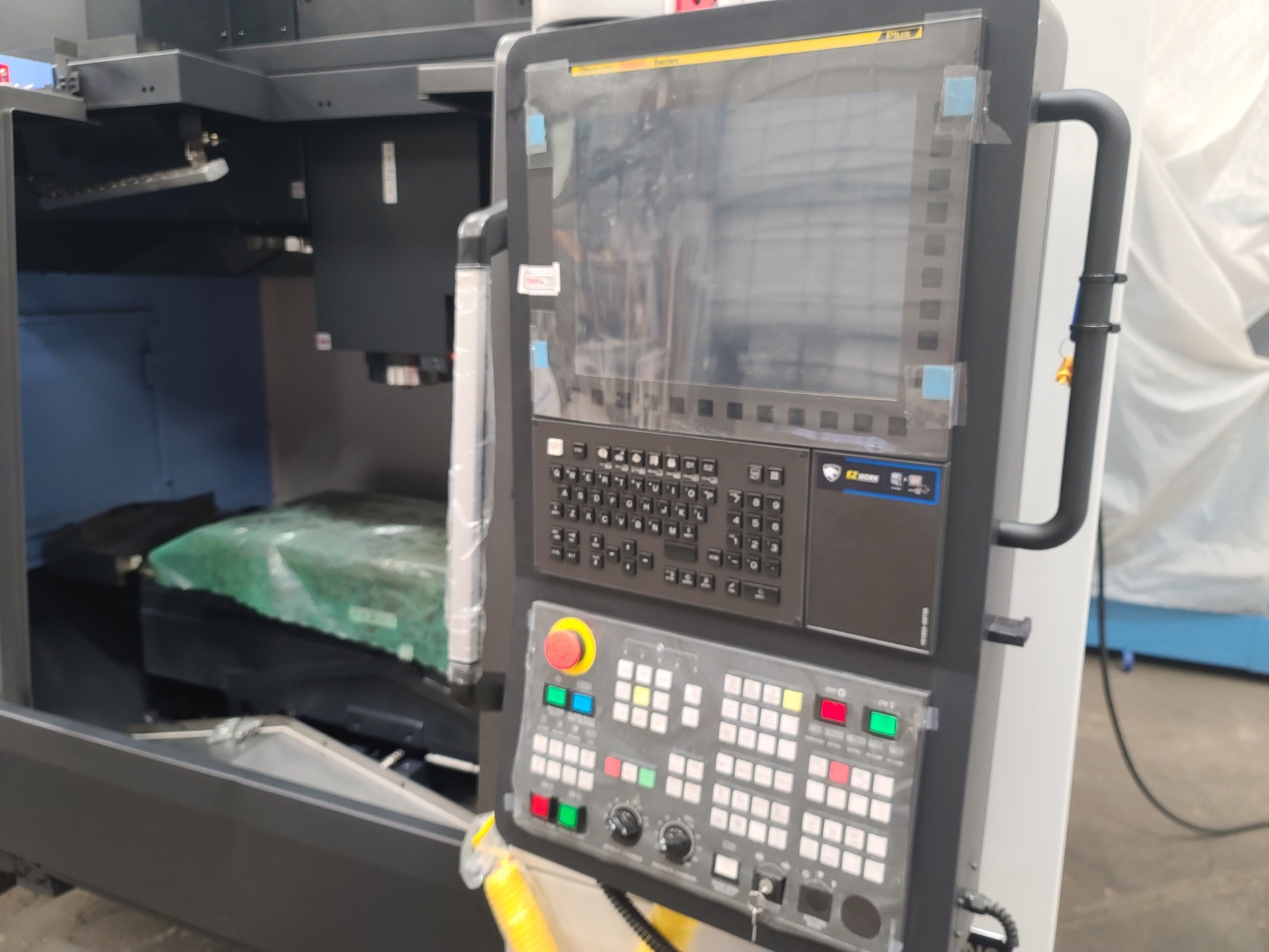

CNC control Fanuc Oi-Plus

Travels; X-Y-Z 31.5”x17.7”x20”

Max table load 1320 lbs.

Spindle taper CAT 40

Max spindle speed 8,000 rpm.

AC spindle motor 15/20 hp.

Tool stations 30 stations

Table loading area 40” x 18”

Rigid tapping Yes

Thru spindle coolant Yes, 215 psi.

Thru spindle air Yes

Oil jacket spindle chiller Yes

Portable pulse generator Yes

Flood coolant system Yes, for chip disposal

Coolant tank 52 gallons

Voltage 220/3/60 77.5 amps

Weight 11,000 lbs.

Price: $ 79,500 FOB Houston, TX.

Condition: New, never used.

Warranty: Fanuc warranty on the CNC control as long as voltage is in the 205-235 range.

Availability: Stock, Subject to Prior Sale

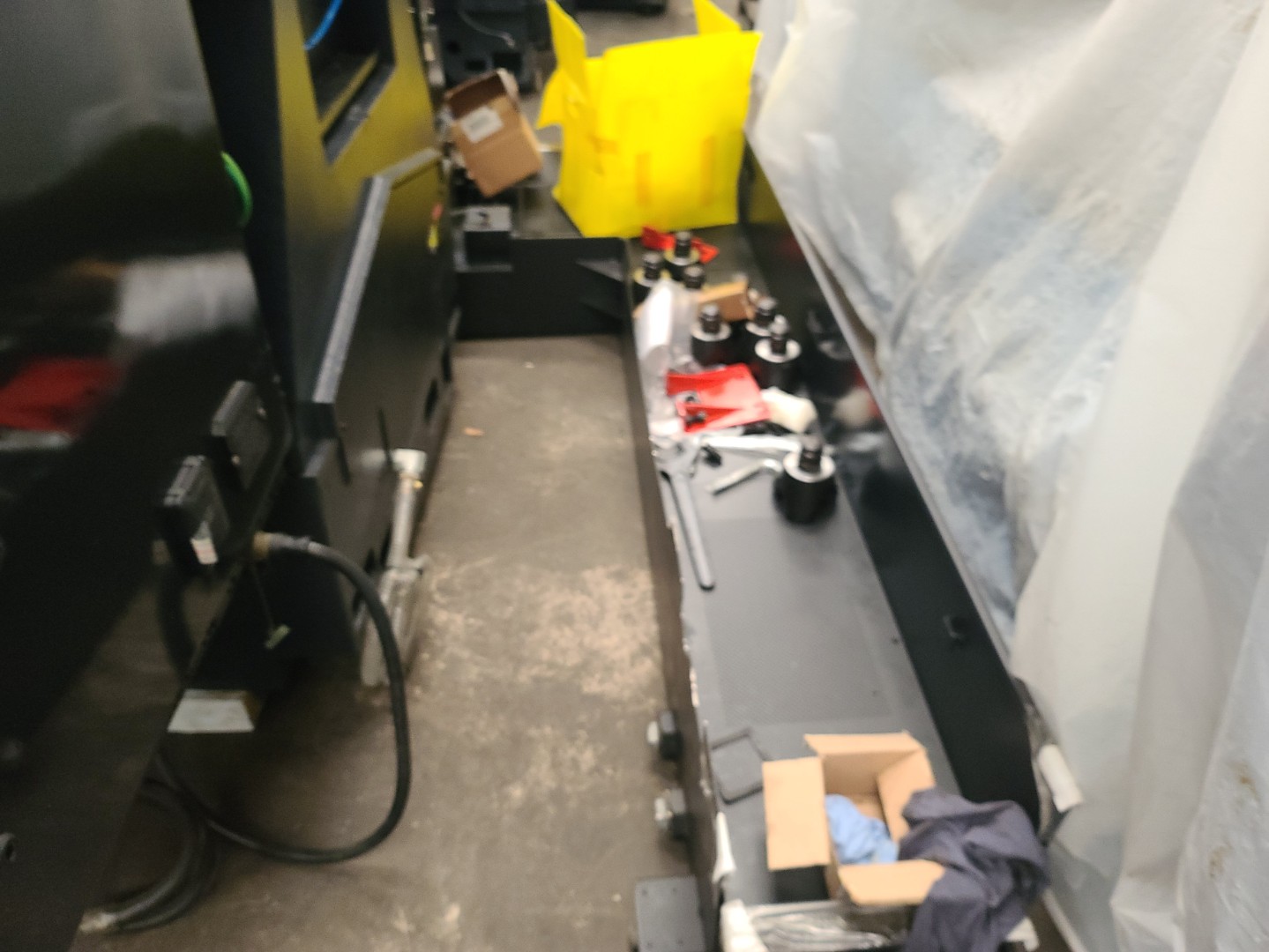

Note: We are not a DN Solutions (Daewoo) dealer. We purchased this machine from an

insurance company as it had tipped over in it’s container when being unloaded in San

Diego, CA from Korea sustaining sheet metal damage which we have repaired.
